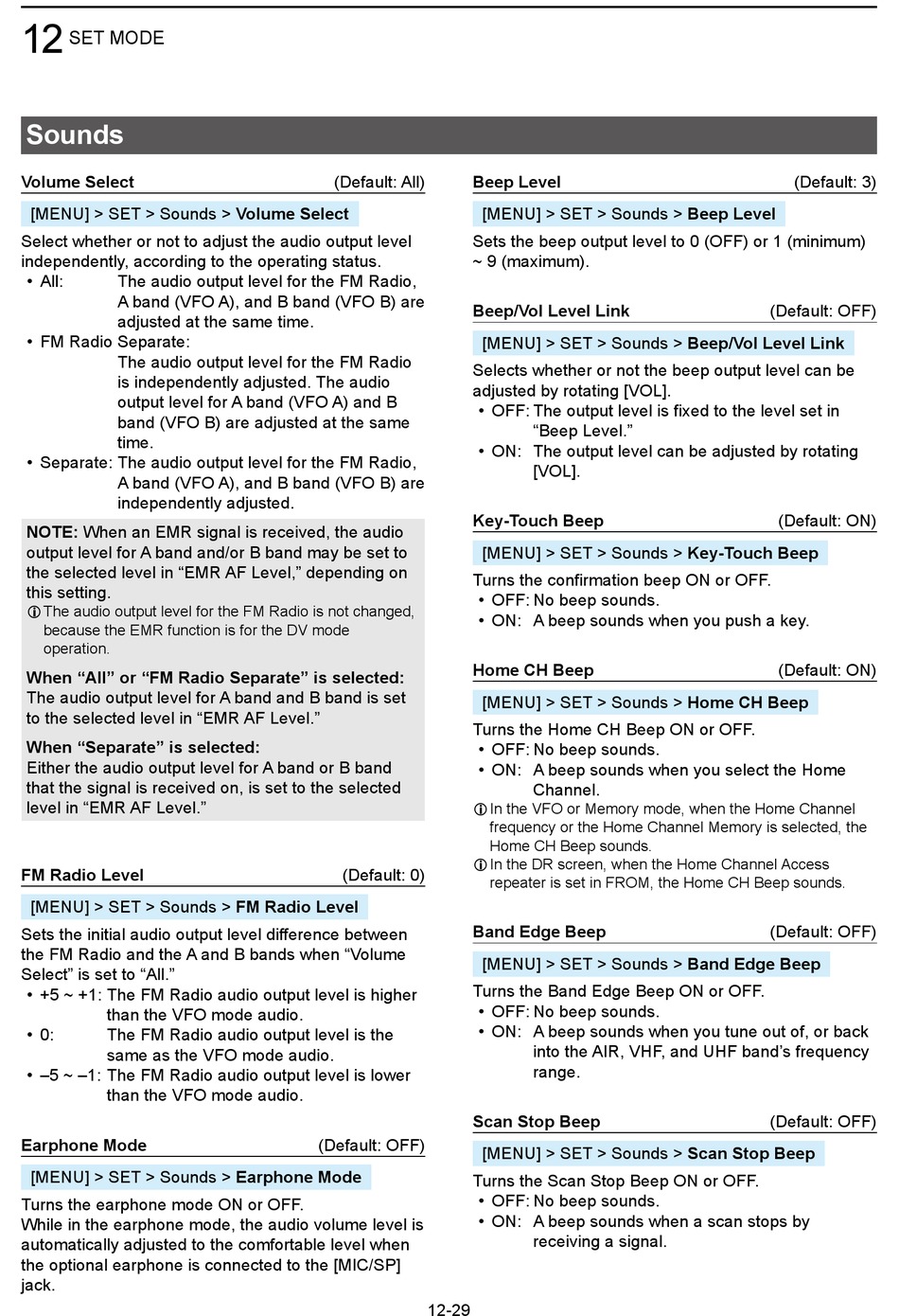

Sounds - Icom ID-52A Advanced Manual

12
SET MODE

Sounds

Volume Select
[MENU] > SET > Sounds > Volume Select
Select whether or not to adjust the audio output level
independently, according to the operating status�
• All: The audio output level for the FM Radio,
A band (VFO A), and B band (VFO B) are
adjusted at the same time�
• FM Radio Separate:
The audio output level for the FM Radio
is independently adjusted� The audio
output level for A band (VFO A) and B
band (VFO B) are adjusted at the same
time�
• Separate: The audio output level for the FM Radio,
A band (VFO A), and B band (VFO B) are
independently adjusted�
NOTE: When an EMR signal is received, the audio
output level for A band and/or B band may be set to
the selected level in "EMR AF Level," depending on
this setting�
L The audio output level for the FM Radio is not changed,
because the EMR function is for the DV mode
operation�
When "All" or "FM Radio Separate" is selected:
The audio output level for A band and B band is set
to the selected level in "EMR AF Level�"
When "Separate" is selected:
Either the audio output level for A band or B band
that the signal is received on, is set to the selected
level in "EMR AF Level�"
FM Radio Level
[MENU] > SET > Sounds > FM Radio Level
Sets the initial audio output level difference between
the FM Radio and the A and B bands when "Volume
Select" is set to "All�"
• +5 ~ +1: The FM Radio audio output level is higher
than the VFO mode audio�
• 0: The FM Radio audio output level is the
same as the VFO mode audio�
• –5 ~ –1: The FM Radio audio output level is lower
than the VFO mode audio�
Earphone Mode
[MENU] > SET > Sounds > Earphone Mode
Turns the earphone mode ON or OFF�
While in the earphone mode, the audio volume level is
automatically adjusted to the comfortable level when
the optional earphone is connected to the [MIC/SP]
jack�
Beep Level
(Default: All)
[MENU] > SET > Sounds > Beep Level
Sets the beep output level to 0 (OFF) or 1 (minimum)
~ 9 (maximum)�
Beep/Vol Level Link
[MENU] > SET > Sounds > Beep/Vol Level Link
Selects whether or not the beep output level can be
adjusted by rotating [VOL]�
• OFF: The output level is fixed to the level set in
• ON: The output level can be adjusted by rotating
Key-Touch Beep
[MENU] > SET > Sounds > Key-Touch Beep
Turns the confirmation beep ON or OFF�
• OFF: No beep sounds�
• ON: A beep sounds when you push a key�
Home CH Beep
[MENU] > SET > Sounds > Home CH Beep
Turns the Home CH Beep ON or OFF�
• OFF: No beep sounds�
• ON: A beep sounds when you select the Home
L In the VFO or Memory mode, when the Home Channel
L In the DR screen, when the Home Channel Access
(Default: 0)
Band Edge Beep
[MENU] > SET > Sounds > Band Edge Beep
Turns the Band Edge Beep ON or OFF�
• OFF: No beep sounds�
• ON: A beep sounds when you tune out of, or back
Scan Stop Beep
(Default: OFF)
[MENU] > SET > Sounds > Scan Stop Beep
Turns the Scan Stop Beep ON or OFF�
• OFF: No beep sounds�
• ON: A beep sounds when a scan stops by
12-29
"Beep Level�"
[VOL]�
Channel�
frequency or the Home Channel Memory is selected, the
Home CH Beep sounds�
repeater is set in FROM, the Home CH Beep sounds�
into the AIR, VHF, and UHF band's frequency
range�
receiving a signal�
(Default: 3)
(Default: OFF)
(Default: ON)
(Default: ON)
(Default: OFF)
(Default: OFF)
