Icom ID-52A Advanced Manual page 256

17
OPTIONS

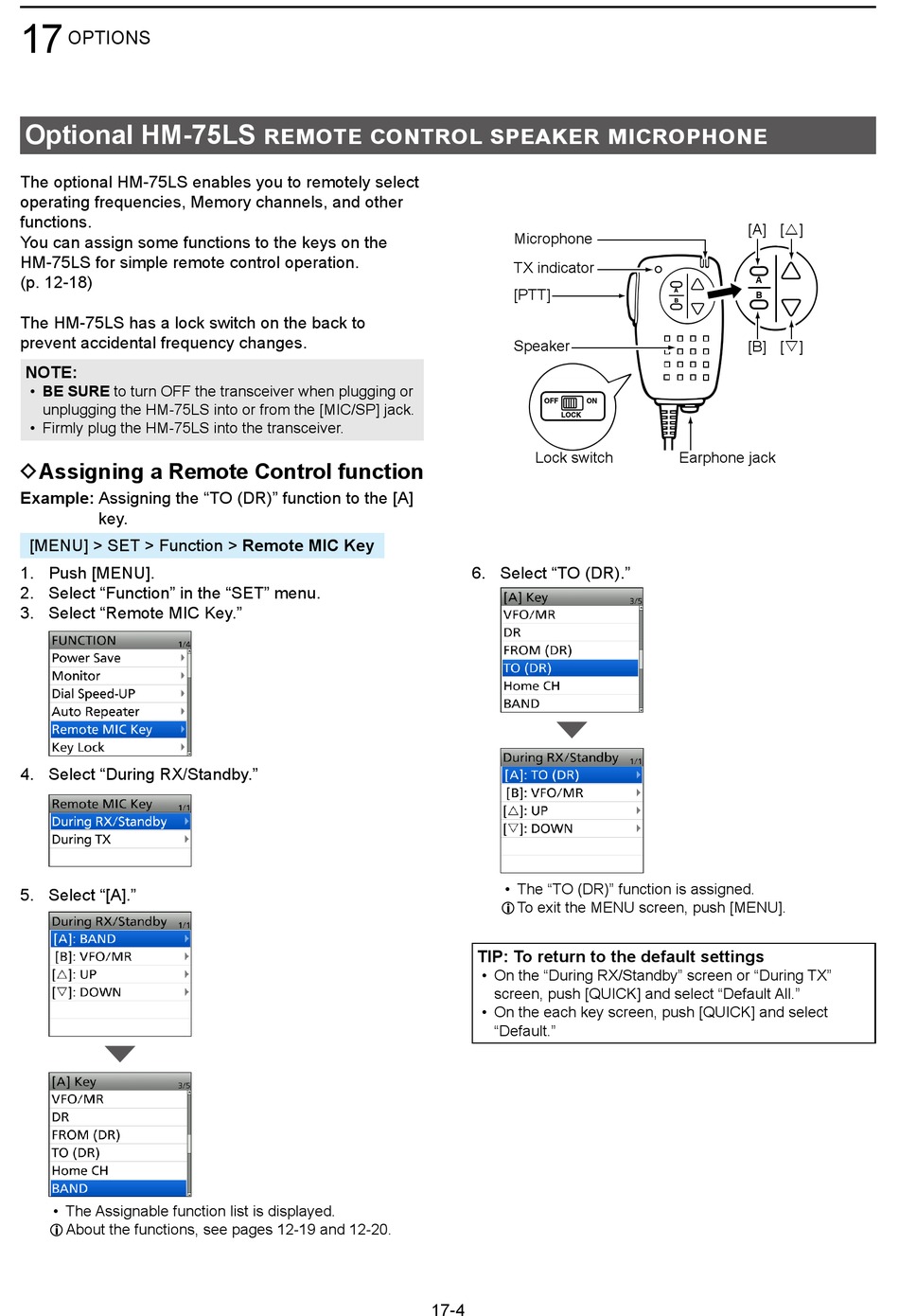

Optional HM-75LS remote control speaker microphone
The optional HM-75LS enables you to remotely select
operating frequencies, Memory channels, and other
functions
You can assign some functions to the keys on the
HM-75LS for simple remote control operation
(p 12-18)
The HM-75LS has a lock switch on the back to
prevent accidental frequency changes
NOTE:
• BE SURE to turn OFF the transceiver when plugging or
unplugging the HM-75LS into or from the [MIC/SP] jack.
• Firmly plug the HM-75LS into the transceiver
DAssigning a Remote Control function
Example: Assigning the "TO (DR)" function to the [A]
key
[MENU] > SET > Function > Remote MIC Key
1 Push [MENU]
2 Select "Function" in the "SET" menu
3 Select "Remote MIC Key"
4 Select "During RX/Standby."
5 Select "[A]"
• The Assignable function list is displayed
L About the functions, see pages 12-19 and 12-20
Microphone
TX indicator
[PTT]
Speaker
OFF ON
LOCK
Lock switch
6 Select "TO (DR)"
• The "TO (DR)" function is assigned
L To exit the MENU screen, push [MENU]
TIP: To return to the default settings
• On the "During RX/Standby" screen or "During TX"
screen, push [QUICK] and select "Default All"
• On the each key screen, push [QUICK] and select
"Default"
17-4
[A] []
A
A
B
B
[B] []
Earphone jack
