5
D-STAR OPERATION (ADVANCED)
Data communication

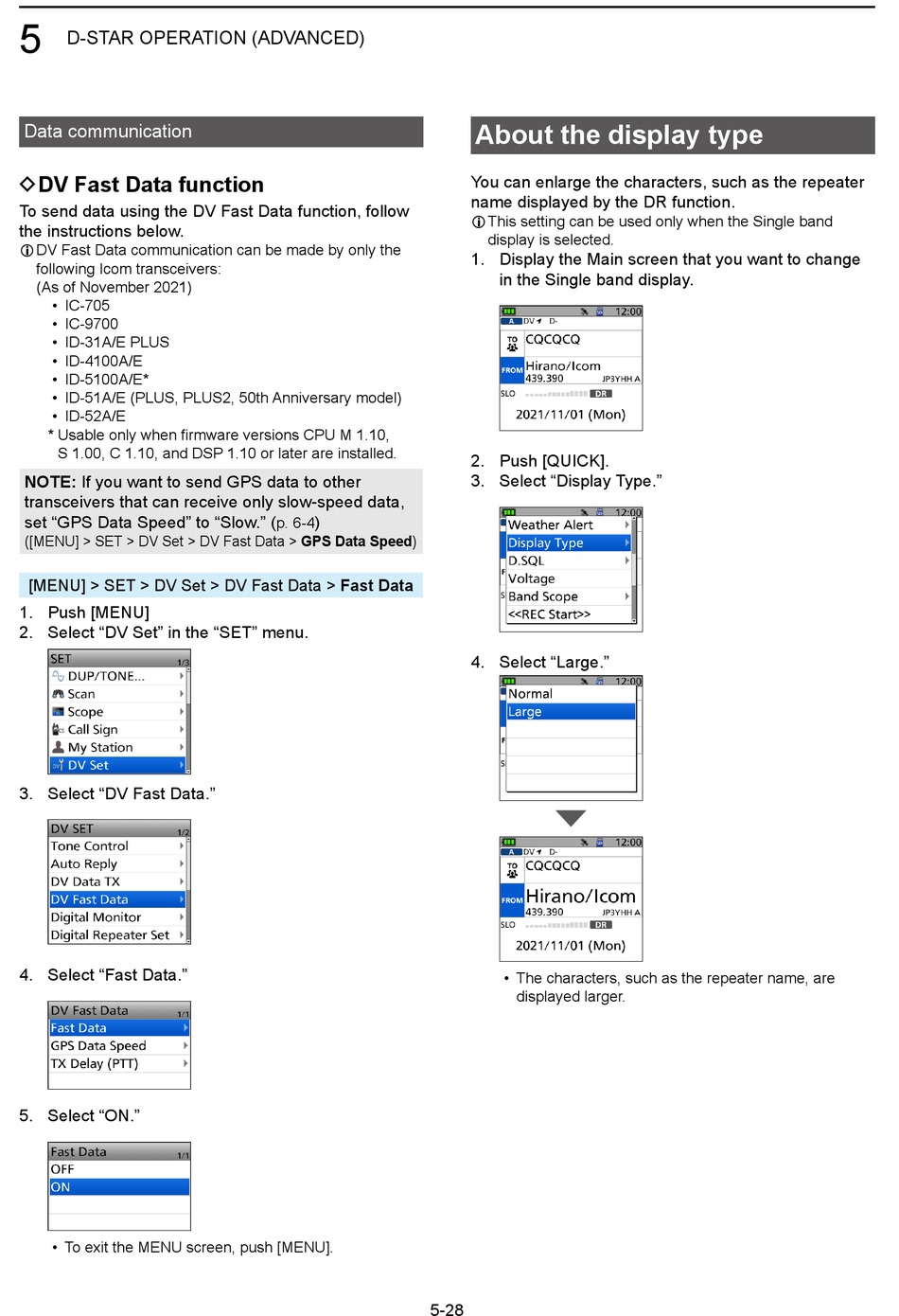

DDV Fast Data function

To send data using the DV Fast Data function, follow
the instructions below�
L DV Fast Data communication can be made by only the
following Icom transceivers:
(As of November 2021)
• IC-705
• IC-9700
• ID-31A/E PLUS
• ID-4100A/E
• ID-5100A/E*
• ID-51A/E (PLUS, PLUS2, 50th Anniversary model)
• ID-52A/E
* Usable only when firmware versions CPU M 1�10,
S 1�00, C 1�10, and DSP 1�10 or later are installed�
NOTE: If you want to send GPS data to other
transceivers that can receive only slow-speed data,
set "GPS Data Speed" to "Slow�" (
([MENU] > SET > DV Set > DV Fast Data > GPS Data Speed)
[MENU] > SET > DV Set > DV Fast Data > Fast Data
1� Push [MENU]
2� Select "DV Set" in the "SET" menu�
3� Select "DV Fast Data�"
4� Select "Fast Data�"
5� Select "ON�"
• To exit the MENU screen, push [MENU]�
)
p� 6-4
5-28

About the display type

You can enlarge the characters, such as the repeater
name displayed by the DR function�
L This setting can be used only when the Single band
display is selected�
1� Display the Main screen that you want to change
in the Single band display�
2� Push [QUICK]�
3� Select "Display Type�"
4� Select "Large�"
• The characters, such as the repeater name, are
displayed larger�
