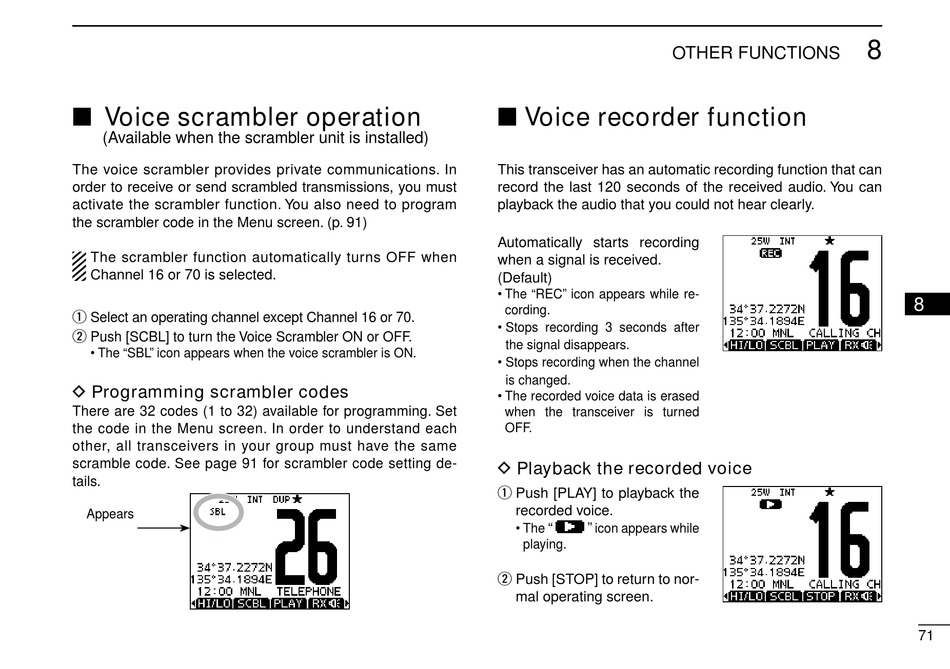

■ Voice scrambler operation

(Available when the scrambler unit is installed)
The voice scrambler provides private communications. In
order to receive or send scrambled transmissions, you must
activate the scrambler function. You also need to program
the scrambler code in the Menu screen. (p. 91)
The scrambler function automatically turns OFF when
Channel 16 or 70 is selected.
q Select an operating channel except Channel 16 or 70.
w Push [SCBL] to turn the Voice Scrambler ON or OFF.
• The "SBL" icon appears when the voice scrambler is ON.
D Programming scrambler codes
There are 32 codes (1 to 32) available for programming. Set
the code in the Menu screen. In order to understand each
other, all transceivers in your group must have the same
scramble code. See page 91 for scrambler code setting de-
tails.
Appears
OTHER FUNCTIONS

■ Voice recorder function

This transceiver has an automatic recording function that can
record the last 120 seconds of the received audio. You can
playback the audio that you could not hear clearly.
Automatically starts recording
when a signal is received.
(Default)
• The "REC" icon appears while re-
cording.
• Stops recording 3 seconds after
the signal disappears.
• Stops recording when the channel
is changed.
• The recorded voice data is erased
when the transceiver is turned
OFF.
D Playback the recorded voice
q Push [PLAY] to playback the
recorded voice.
" "
• The icon appears while
playing.
w Push [STOP] to return to nor-
mal operating screen.
