MODEL C2® PLUS & MODEL G™ PLUS with Proximity Sensor Feeding System

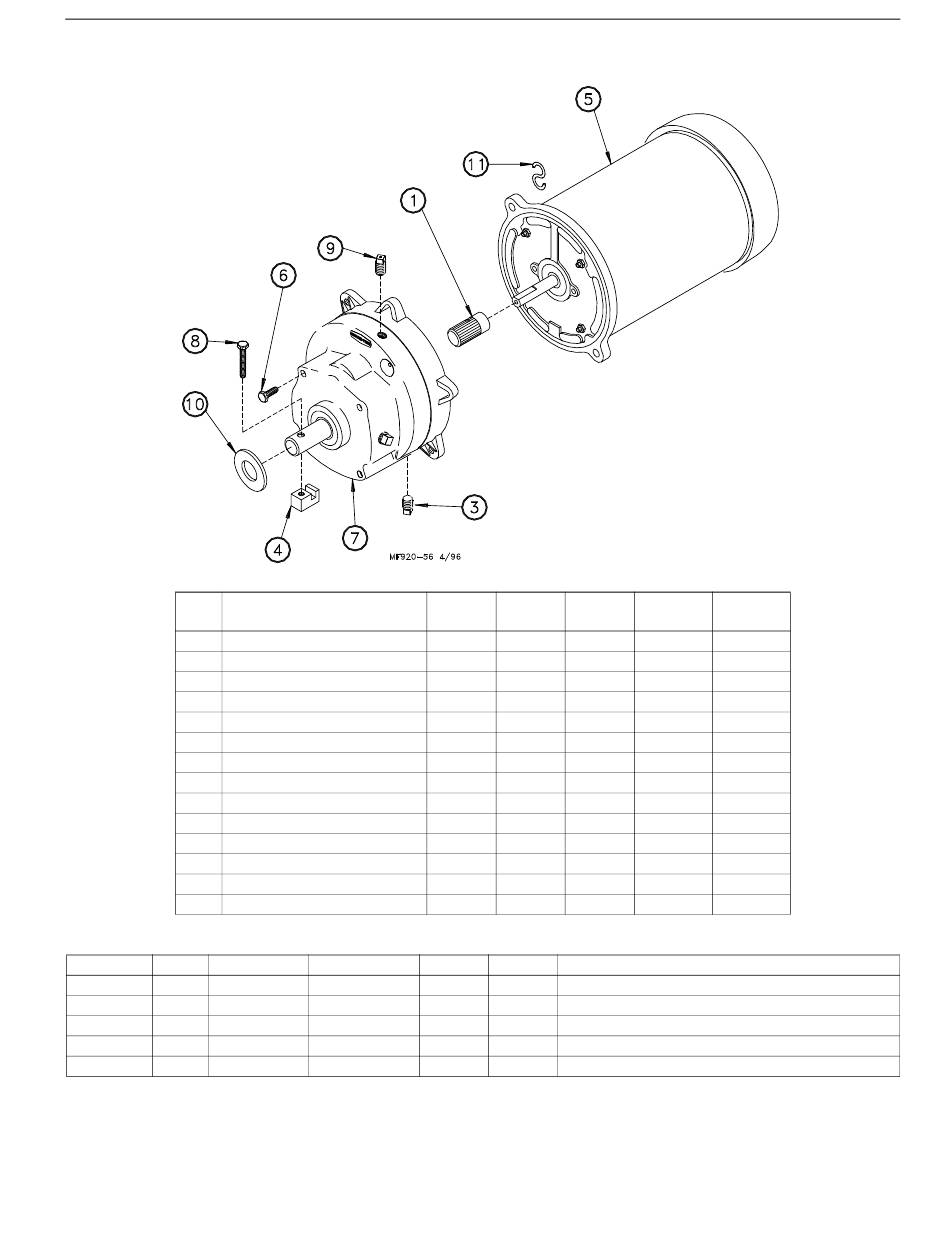

Power Unit Assemblies

Item
1
2
3
4
5
6 5/16-18x5/8 Hex HD Screw
7
8 1/4-20x1-1/2 Socket Hd Screw
9
10
11
--
--
--

Power Unit Assembly Part Numbers:

Part No. HP RPM
3259-84 1/3 HP 348 RPM
3259-85 1/2 HP 348 RPM
3259-98 1/2 HP 348 RPM
3259-100 1/2 HP 348 RPM
3259-128 1/2 HP 348 RPM
MF2495A
Description
Part No.
Pinion Assembly
- - - -
Pipe Plug (magnetic)
Driver Block
Motor
Gearhead
Vent Plug
Flat Washer
"S" Hook
Cord Assembly
Connector (Romex)
Connector (90 Degree)
Phase
Single Phase
Single Phase
Single Phase
Three Phase
Three Phase
3259-84 3259-85 3259-98
Part No. Part No.
5046 5046 5046
- - - - - - - - - - - -
30160 30160 30160
4642 4642 4642
4229 5703 5977
4412-1 4412-1 4412-1
3261-5 3261-5 3261-11
5083-8 5083-8 5083-8
3516 3516 3516
1484 1484 1484
2805 2805 2805
- - - - - - - - 28028
- - - - - - - - - - - -
- - - - - - - - 4228
Hz Voltage
60 Hz 230
60 Hz 230
50 Hz 230
50 Hz 220/380
60 Hz 230
3259-100 3259-128
Part No. Part No.
5046 5046
- - - - - - - -
30160 30160
4642 4642
28031 24624
4412-1 4412-1
3261-11 3261-5
5083-8 5083-8
3516 3516
1484 1484
2805 2805
- - - - - - - -
- - - - - - - -
- - - - - - - -
Usages
Use with all Control Units
Use with all Control Units
Use with all Control Units
Parts List
53
