Parts List

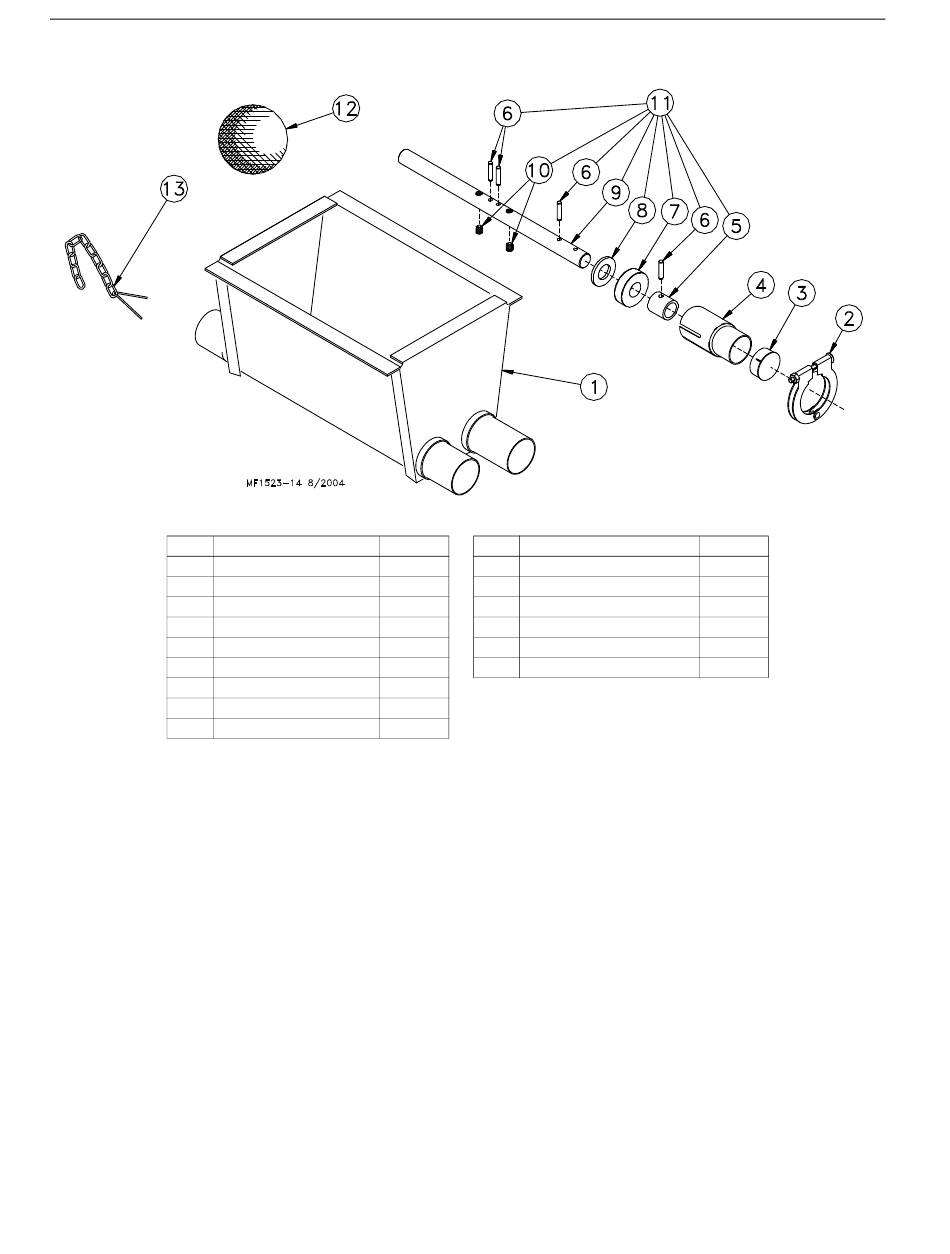

Twin Boot Components Part No. 6824
Item
Description
1
Boot Weldment
2
Tube Clamp
3
Cap
4
Outlet Tube
5
Sleeve
6
3/16 x 1" Pin
7
Bearing
8
Washer
9
Anchor
*The Jumper Wire Kit includes an insulated piece of High-Voltage Wire (part no. 28994) and (2) cable clamps.
46
MODEL C2® PLUS & MODEL G™ PLUS with Proximity Sensor Feeding System
Part No.
Item Description
3932
10
Setscrew
24063
11
Anchor and Bearing Ass'y
29373
12
Cannonball
4556
13
Latch Pin Ass'y
5648
--*
Jumper Wire Kit
2960-1
--
Danger Decal
2689
2955-14
38540
Part No.
47867
39372
3531
2683
5960
2527-9
MF2495A
