Mid-Line Control Units are available for the MODEL C2 PLUS & G PLUS Feeders. The Mid-Line Controls are
shown in Figure 45.
MODEL C2 PLUS Mid-Line Control with
Proximity Switch
MODEL C2 PLUS Mid-Line Control with
Mechanical Switch and Windows
The Mid-Line Control makes it possible to operate the feeding system when birds are confined away from the End
Control Unit. Chore-Time recommends placing the Mid-Line Control Feeder at least 2 pans away from the curtain
or partition. See Figure 46.
1. New Feeder Lines: Leave one feeder pan assembly off the feeder control tube at the point where
the Mid-Line Control needs to be placed. The feeder line can be assembled and suspended before
attaching the Mid-Line Control; or the Mid-Line Control may be attached to the feeder tube when
the other pans are installed.
Existing Feeder Lines: Cut the Grill Support and remove the feeder pan at the location where the
26
MODEL C2® PLUS & MODEL G™ PLUS with Proximity Sensor Feeding System
CHORE-TIME EQUIPMENT
A DIVISION OF CTB INC.
MILFORD, INDIANA 46542-2000
42663 MODEL C2 PLUS
INTERMEDIATE CONTROL
WITH PROXIMITY SWITCH
2529-711
DANGER
ELECTROCUTION HAZARD!
Do not open this control
box until electrical power is
disconnected at circuit breakers.
1255-66 6/01
1255-33 3/1998

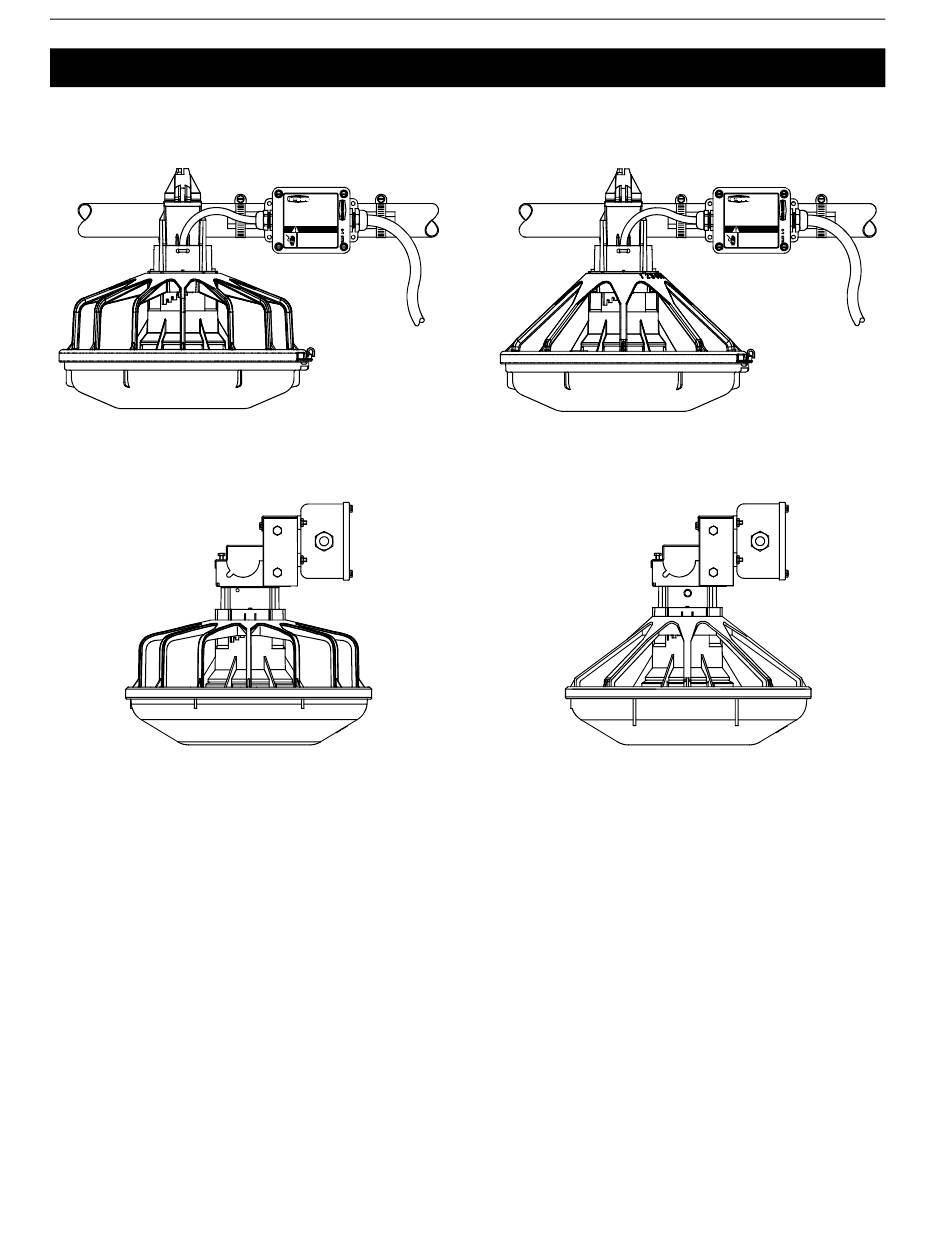

Figure 45.Mid-Line Controls
