MODEL C2® PLUS & MODEL G™ PLUS with Proximity Sensor Feeding System Installing the End Control, Boot Assembly, and Au-
Conduit (Item 3) in the connectors. Connect the wires to the Feed Line Motor (Item 2).
9.Attach all covers and wire according to the wiring section of this manual.
10.Pull the auger at the boot end until it begins stretching. Then let it relax. In the relaxed position, mark the
auger at the end of the boot. See Figure 35.
11.Auger stretch:
The auger needs to be stretched 7" [180 mm] per 100' [30 m]. Example: A 300' [90 m] feeder line requires
21" [500 mm] of stretch.
Beginning at the relaxed position, measure the required amount of stretch. Mark the auger at that point.
Grip the auger 8" [200 mm] ahead of this mark with locking pliers. Allow the auger to pull back into the boot
so that the pliers rest against the end of the boot. See Figure 36.
4) Boot under Feed Hopper
3) Pull an extra 8" [200 mm] of auger (minimum)
to allow for Anchor and Bearing Installation
MF2495A

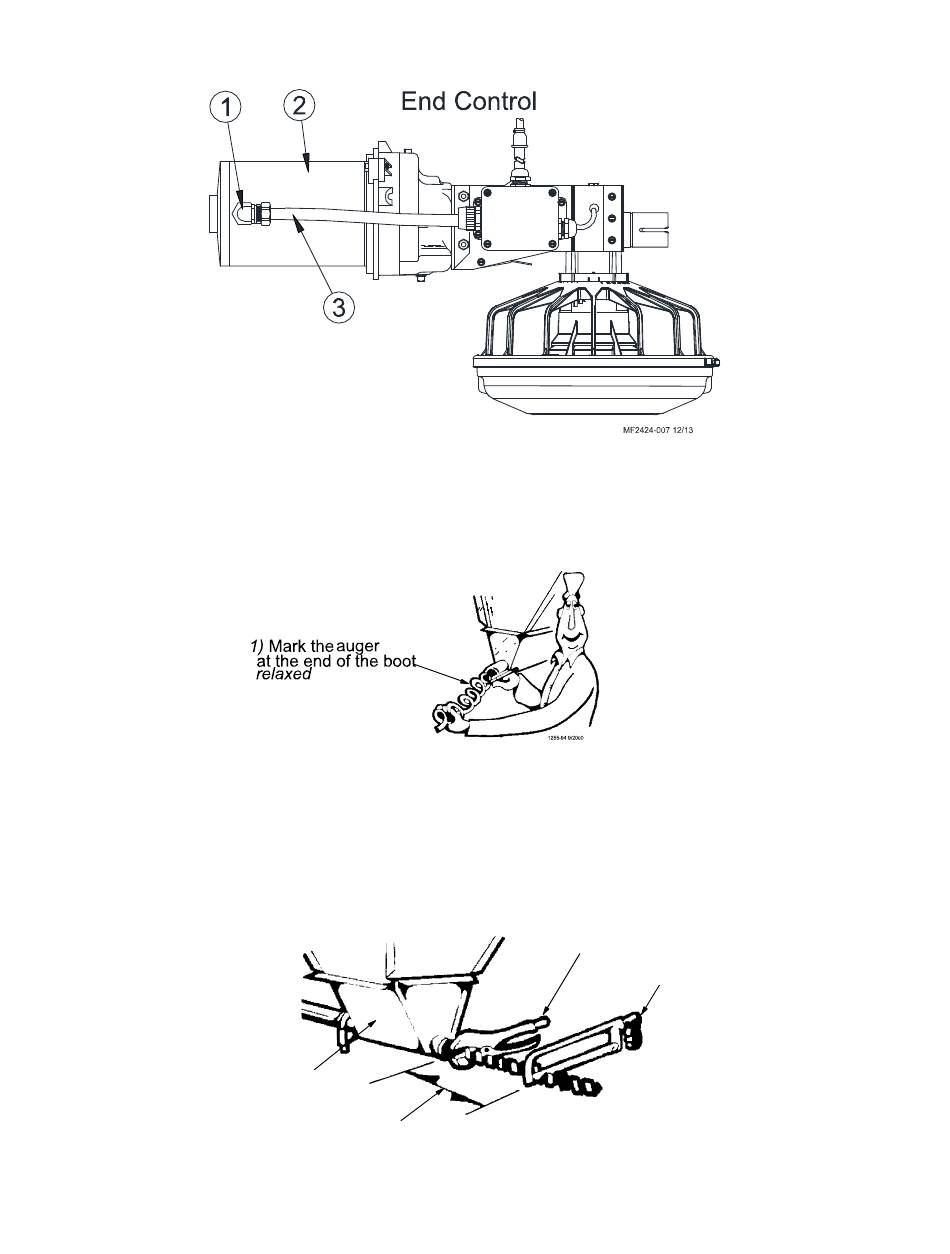

Figure 34.Installing Water Tight, Cutting and Installing Conduit
Figure 35.Measure the Auger from the relaxed position
Figure 36.Cut Auger with required stretch
1) Locking Pliers
2) Use a hacksaw or bolt
cutters to cut the auger
