MODEL C2® PLUS & MODEL G™ PLUS with Proximity Sensor Feeding System
insulators. See Figure 53.
5) Wire Form
15.Install the Poultry Trainer or Line Charger, as shown in Figure 54. or Figure 55..
The Poultry Trainer is used to power all Anti-Roost lines in a house. See Figure 54.
The Line Charger is used to power individual Anti-Roost lines in a house. See Figure 55.Route the charger
wire from the Poultry Trainer or Line Charger to the Anti-Roost system. Secure the Charger Wire to the Anti-
Roost cable, using a cable clamp.
MF2495A
2) Clamp with Anti-Roost Bracket and Insulator
3) Insulator

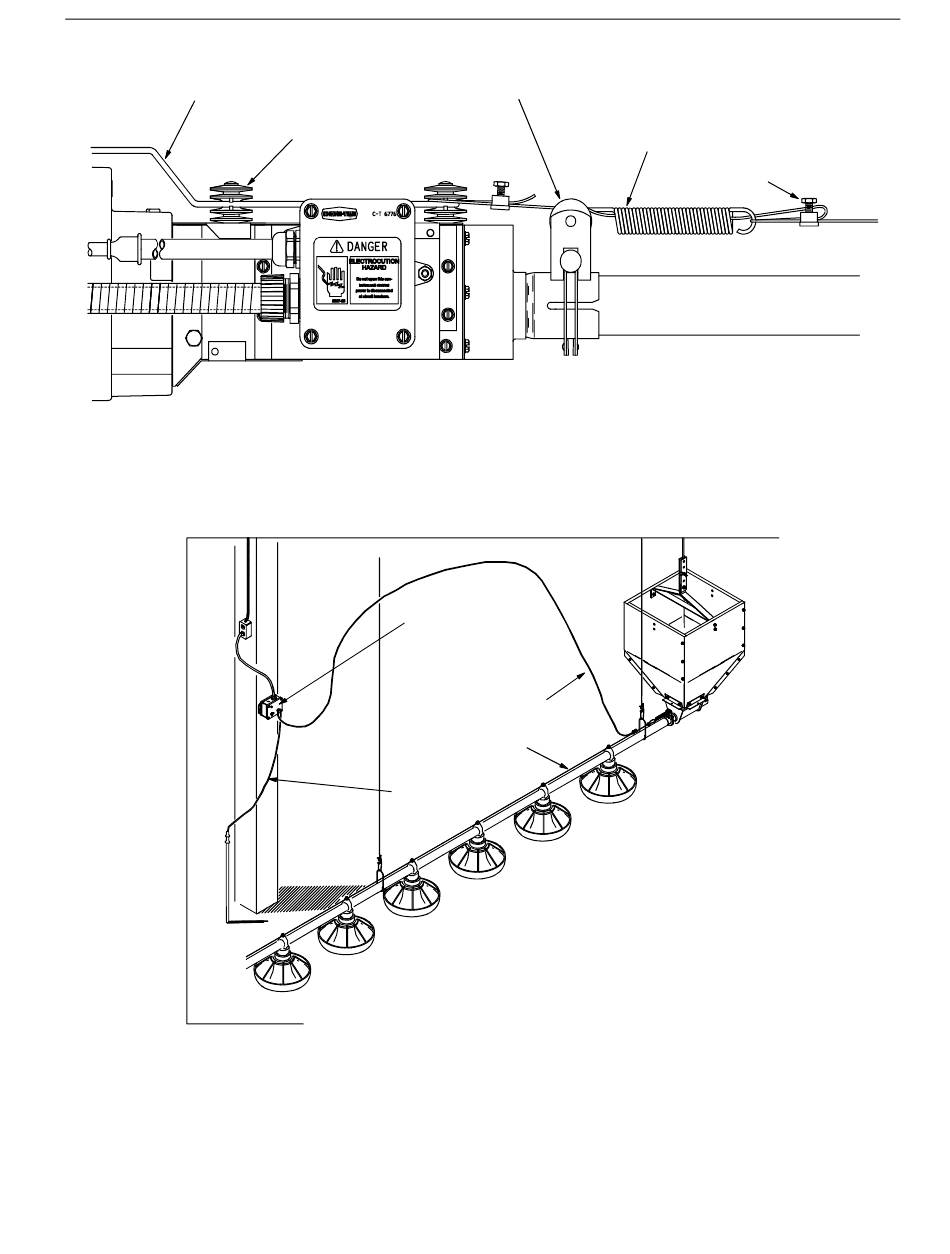

Figure 53.Anti-Roost Installation at the Control Unit
1) Secure Poultry
Trainer to the
Wall or Post
4) Insulated Charger Wire
3) Anti-Roost Wire
2) Ground Wire
Figure 54.Poultry Trainer Installation
4) Spring should be Stretched
3/4" to 1" [19 mm to 25 mm]
1) Clamp
1255-91 9/2000
Anti-Roost Assembly
1255-90 9/2000
