MODEL C2® PLUS & MODEL G™ PLUS with Proximity Sensor Feeding System
5.Install the Hangers on the feed line tube at the 8' [2.4
m] spacings determined by the suspension drop lines.
Figure 27. shows the proper installation of the Hanger
Assembly. Make sure the outlet drop hole is downward
when the Hangers are installed, otherwise feed will not
be allowed to drop into the feeder pan.
6.Install Adjustment Leveler within
6" [152 mm] of feeder line. Figure
28. shows the proper cable routing
around the Adjustment Leveler.
7.Following the installation of all
drops, check drop cables before
raising feeder line. Cable must be
tracking properly on all pulleys
before raising the feeder line.
8.Raise the feeder line to a convenient
working height.
9.With the feeder line suspended,
measure from the floor or ceiling to
the auger tubes to level the system.
10.Before tightening each clamp:
- make sure each tube is level (not
sagging, sloping, etc.).
- make sure straight end of each
tube is fully inserted in belled
end of next tube.
- if providing total drop out, tubes
should be rotated so that the Chore-Time Logo is on crown of tube.
- make sure the clamps are located, as shown in Figure 26.
Finally, tighten the Tube Clamps on the feeder tubes. Clamp the joints securely, but do not crush the tubes.
Re-adjust all Adjustment Levelers as needed and trim off excess cable as shown in Figure 28.
MF2495A
Feeder Line Assembly and Suspension
1) Cable Lock
3) Hanger
2) Auger Tube
1255-87 9/2000

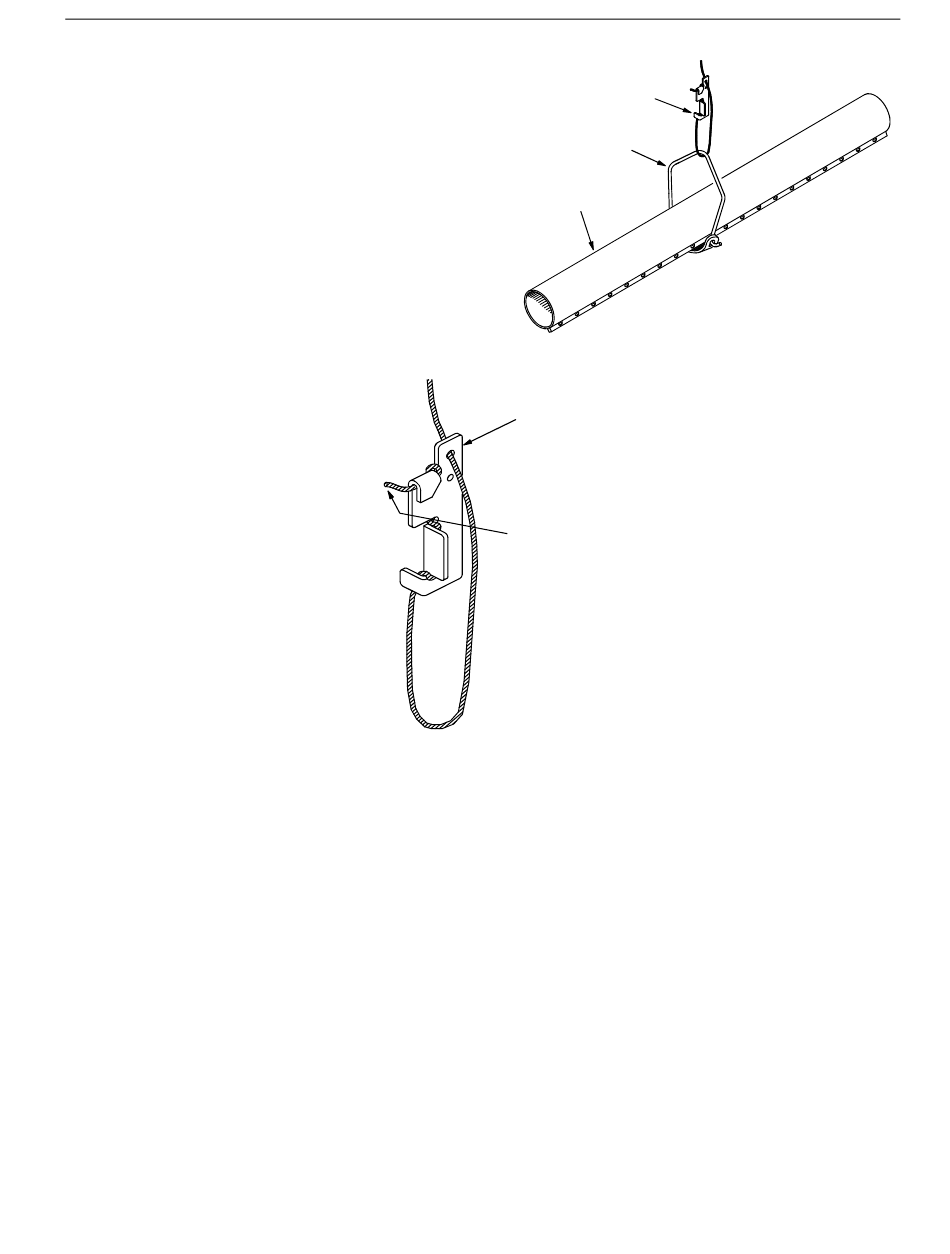

Figure 27.Hanger Installation
1) Use the large hole for 1/8" [3 mm] Drop Cable
Use the small hole for 3/32" [2 mm] Drop Cable
2) After tightening Tube Clamps on the feeder
tubes, trim off excess cable (see text)
1255-88 4/2001
Figure 28.Cable Lock Threading
