Wiring

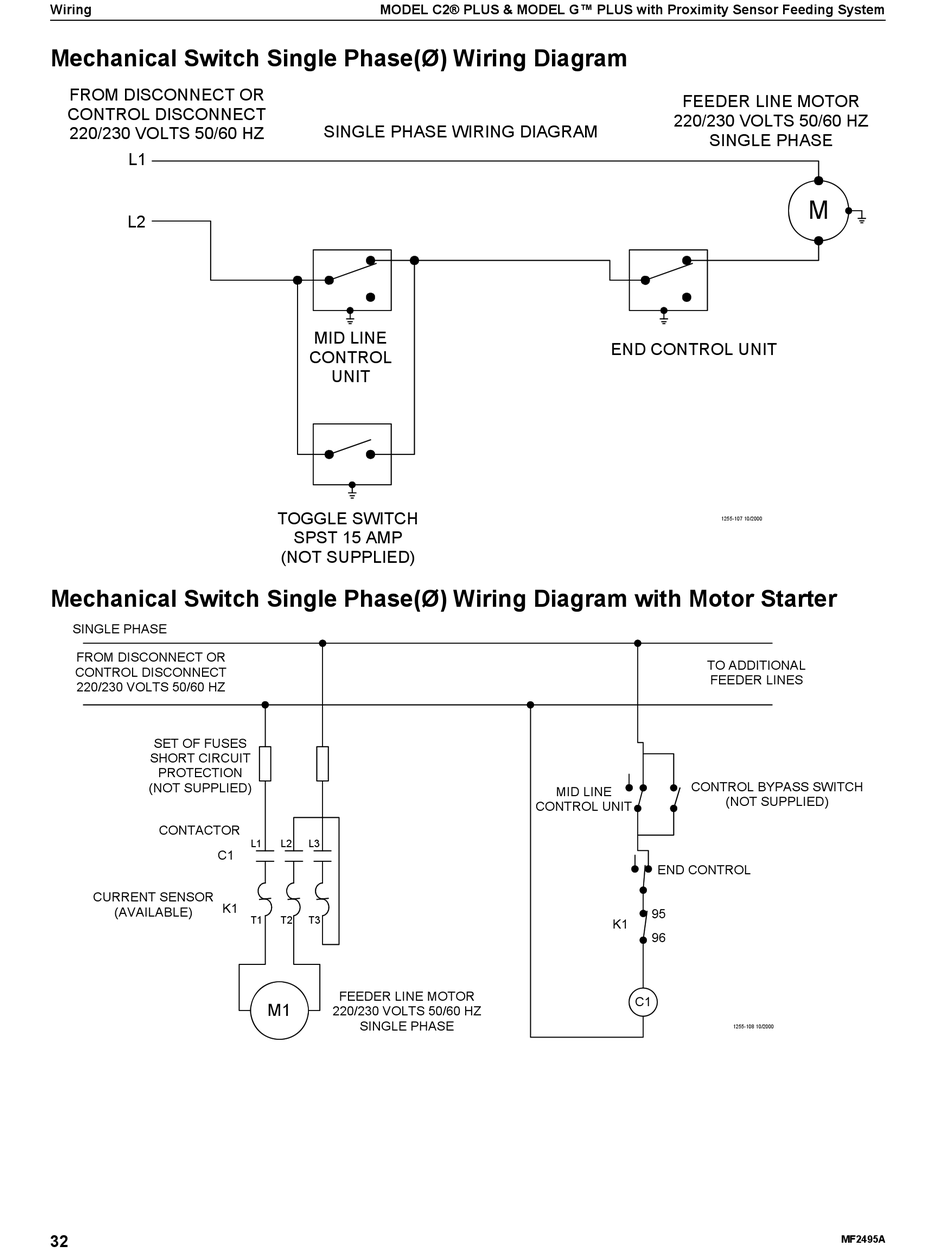

Mechanical Switch Single Phase(Ø)Wiring Diagram
FROM DISCONNECT OR
CONTROL DISCONNECT
220/230 VOLTS 50/60 HZ
L1
L2
Mechanical Switch Single Phase(Ø)Wiring Diagram with Motor Starter
SINGLE PHASE
FROM DISCONNECT OR
CONTROL DISCONNECT
220/230 VOLTS 50/60 HZ
SET OF FUSES
SHORT CIRCUIT
PROTECTION
(NOT SUPPLIED)
CONTACTOR
C1
CURRENT SENSOR
K1
(AVAILABLE)
32
MODEL C2® PLUS & MODEL G™ PLUS with Proximity Sensor Feeding System
SINGLE PHASE WIRING DIAGRAM
MID LINE
CONTROL
UNIT
TOGGLE SWITCH
SPST 15 AMP
(NOT SUPPLIED)
L1 L2 L3
T1 T2 T3
FEEDER LINE MOTOR
M1
220/230 VOLTS 50/60 HZ
SINGLE PHASE
FEEDER LINE MOTOR
220/230 VOLTS 50/60 HZ
SINGLE PHASE
END CONTROL UNIT
TO ADDITIONAL
FEEDER LINES
CONTROL BYPASS SWITCH
MID LINE
CONTROL UNIT
END CONTROL
95
K1
96
C1
M
