MODEL C2® PLUS & MODEL G™ PLUS with Proximity Sensor Feeding System
4.Slide the Drive Tube and flat washer over the output shaft on the Power Unit, as shown in Figure 38.
5.Continue installing auger until the auger reaches the Control Unit end of the feeder line.
6.Turn the Drive Tube Weldment into the auger, then attach to the output shaft of the Power Unit, as shown in
Figure 38. Use the Driver Block to secure the auger to the Output Shaft.
1) Driver Block
7.Attach the Anchor Plate and Gearhead Assembly to the Control Unit Body using the included 1/4'' Lock
Washers and 1/4-20 x 1/2'' Bolts. See Figure 39.
MF2495A
3) Control Unit not
shown for clarity
2) Drive Tube Weldment

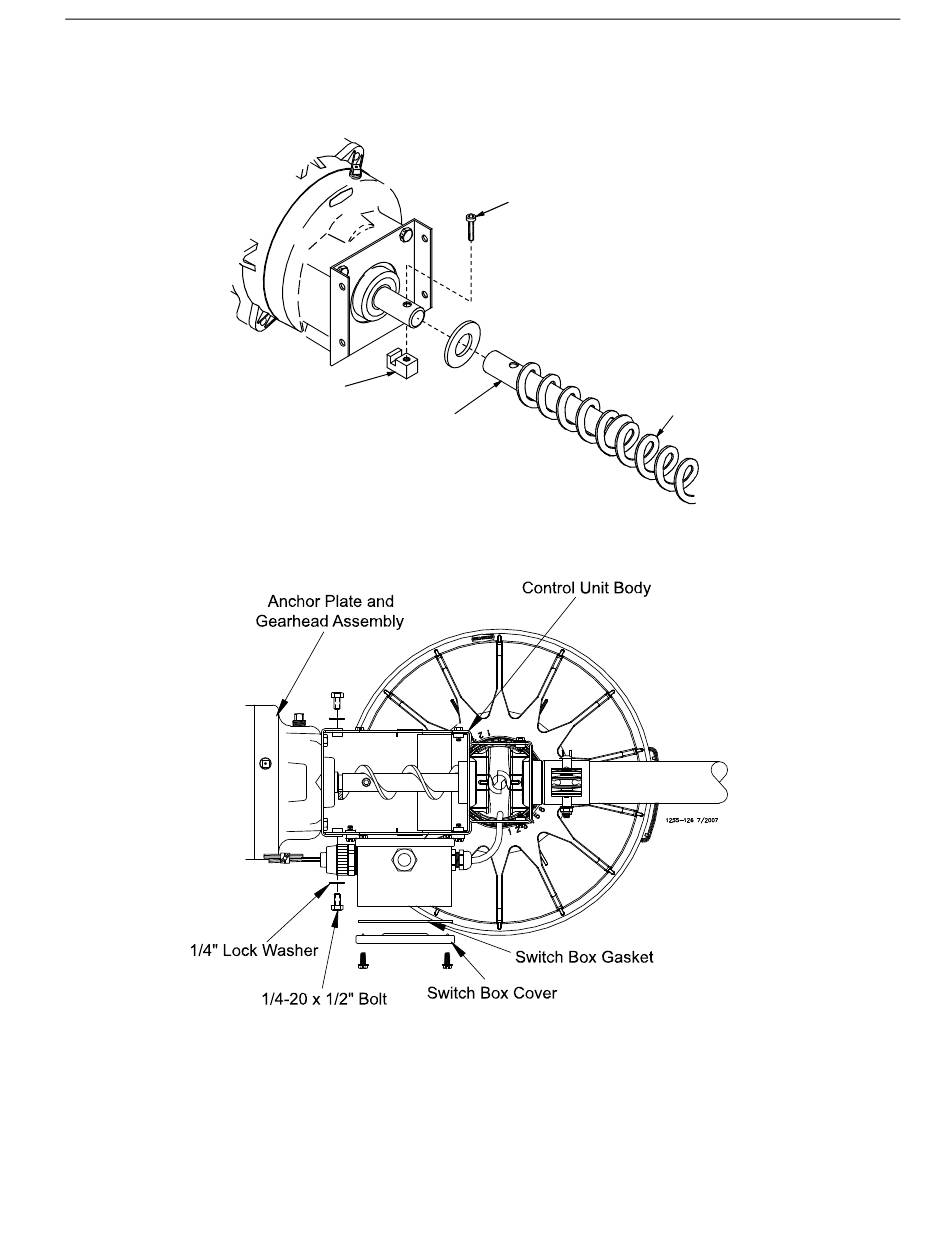

Figure 38. Auger Driver Components
Figure 39. Attaching the Anchor Plate and Gearhead
Assembly to the Control Unit Body
4) 1/4-20 x 1-1/2"
Socket Head Bolt
6) Auger
1255-93 4/2001
Auger Installation
