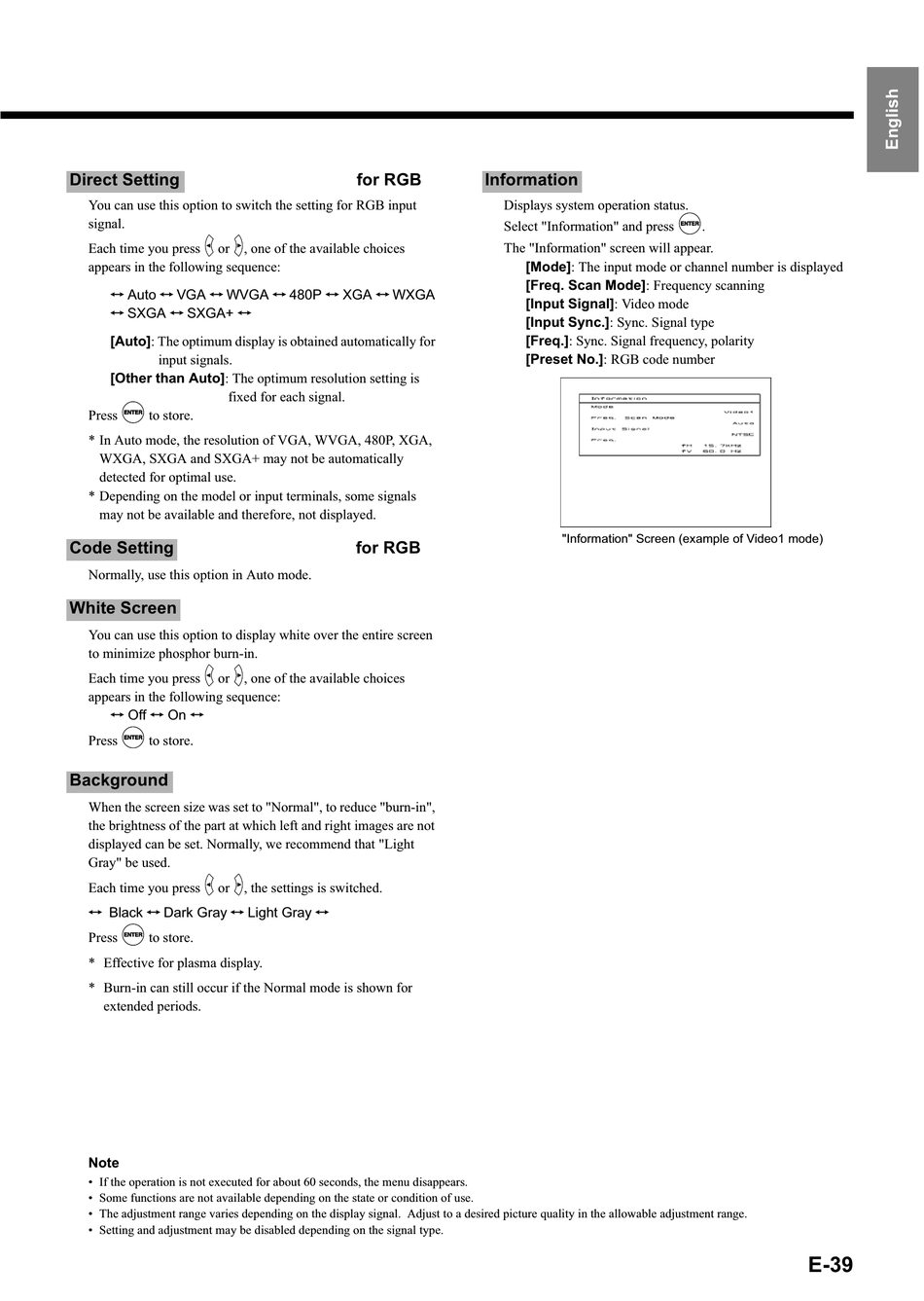

Direct Setting

You can use this option to switch the setting for RGB input
signal.
Each time you press
or , one of the available choices
appears in the following sequence:
Auto
VGA
WVGA
SXGA
SXGA+
[Auto]: The optimum display is obtained automatically for
input signals.
[Other than Auto]: The optimum resolution setting is
fixed for each signal.
Press
to store.
* In Auto mode, the resolution of VGA, WVGA, 480P, XGA,
WXGA, SXGA and SXGA+ may not be automatically
detected for optimal use.
* Depending on the model or input terminals, some signals
may not be available and therefore, not displayed.

Code Setting

Normally, use this option in Auto mode.

White Screen

You can use this option to display white over the entire screen
to minimize phosphor burn-in.
Each time you press
or , one of the available choices
appears in the following sequence:
Off
On
Press
to store.

Background

When the screen size was set to "Normal", to reduce "burn-in",
the brightness of the part at which left and right images are not
displayed can be set. Normally, we recommend that "Light
Gray" be used.
Each time you press
or , the settings is switched.
Black
Dark Gray
Press
to store.
* Effective for plasma display.
* Burn-in can still occur if the Normal mode is shown for
extended periods.
Note
• If the operation is not executed for about 60 seconds, the menu disappears.
• Some functions are not available depending on the state or condition of use.
• The adjustment range varies depending on the display signal. Adjust to a desired picture quality in the allowable adjustment range.
• Setting and adjustment may be disabled depending on the signal type.
for RGB
480P
XGA
WXGA
for RGB
Light Gray

Information

Displays system operation status.
Select "Information" and press
The "Information" screen will appear.
[Mode]: The input mode or channel number is displayed
[Freq. Scan Mode]: Frequency scanning
[Input Signal]: Video mode
[Input Sync.]: Sync. Signal type
[Freq.]: Sync. Signal frequency, polarity
[Preset No.]: RGB code number
"Information" Screen (example of Video1 mode)
.
E-39
