PART NAMES AND FUNCTIONS (Continued)

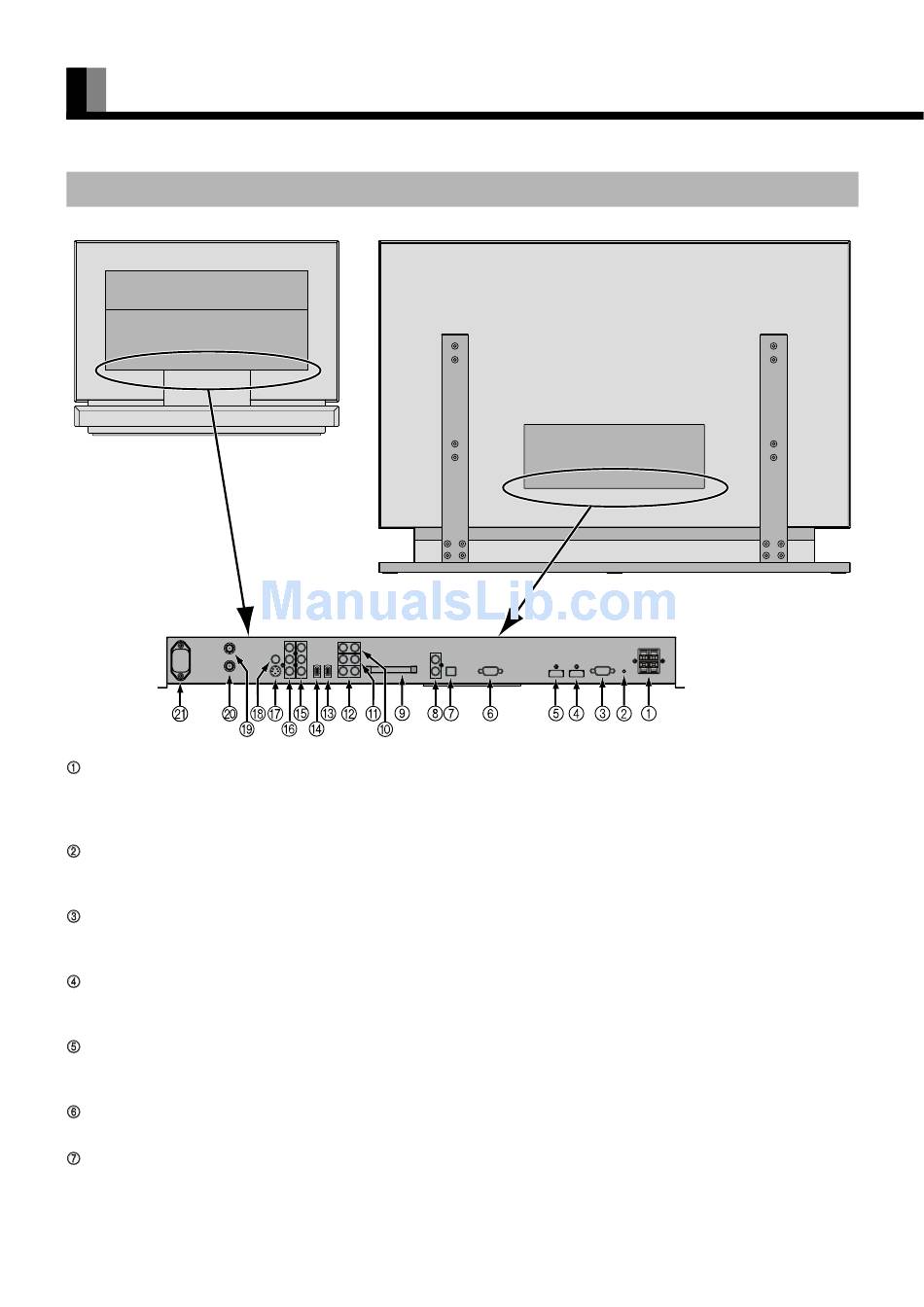

DISPLAY SECTION – BACK
Back of the display
(for 37" model)
External speaker output terminal (EXT. SP) for 50" / 65" model
Connect these terminals to the speakers.
When connecting a cable, attach a ferrite core to the cable. (See P. E-6.)
* For details, see the speaker unit installation manual.
Expansion terminal (EXP. PORT)
Currently, this terminal is not functional and is provided to accommodate future technology enhancements. Do not connect any cable to
this terminal.
RS-232C terminal (RS-232C)
This terminal is provided for you to control the display directly from a PC. Connect it to the RS-232C terminal on the PC.
When connecting a cable, attach a ferrite core to the cable. (See P. E-6.)
Video6 input terminal (VIDEO6 INPUT/HDMI)
Connect this terminal to the HDMI output terminal of DVD recorder/player or other video source.
When connecting a cable, attach a ferrite core to the cable. (See P. E-6.)
Video5 input terminal (VIDEO5 INPUT/HDMI)
Connect this terminal to the HDMI output terminal of DVD recorder/player or other video source.
When connecting a cable, attach a ferrite core to the cable. (See P. E-6.)
RGB1 input terminal (RGB1 INPUT/mD-sub)
Connect this terminal to the output terminal of a PC, set-top box, game, etc.
Digital audio output terminal (AUDIO OUTPUT DIGITAL)
Connect this terminal to the digital audio input terminal of the audio amplifier.
E-8
Back of the display
(for 50" / 65" model)
