INSTALLATION (Continued)

TOPPLING PREVENTION

There is the danger of the display toppling over and causing an injury due to an earthquake or other unexpected shock. To use the display
with peace of mind, take toppling prevention measures. Install stout hooks (commercial product) to the threaded holes at the back of the
display and fasten the hooks to a TV stand or pillar with strong wire (commercial product).

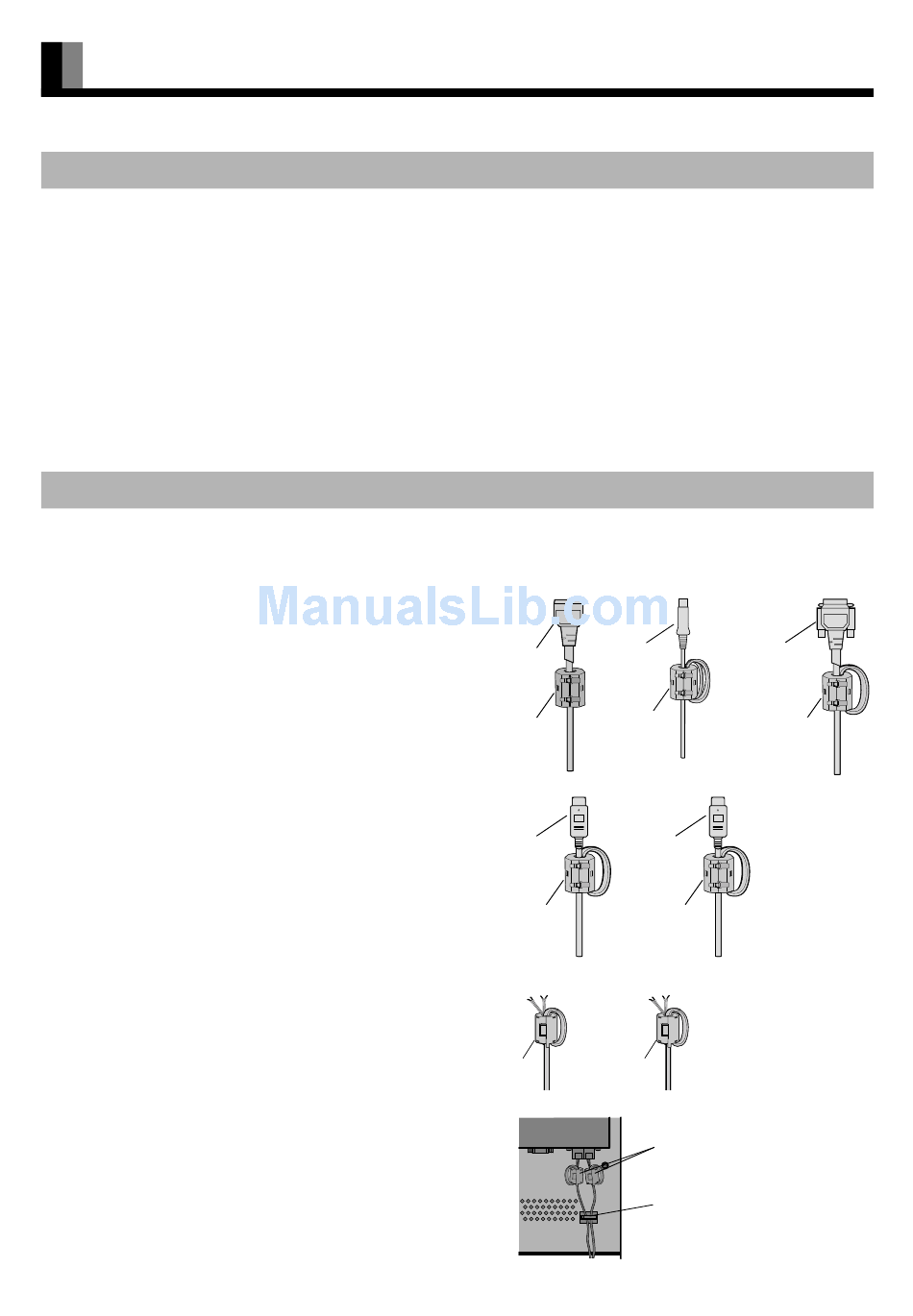

ATTACHING THE FERRITE CORES

• The ferrite cores are used to reduce noise. Attach them correctly as shown in the following illustrations.
5 large ferrite cores
When connecting the cord to the power input terminal, RS232C
terminal, S-video input terminal, and HDMI input terminal (2),
attach one of these ferrite cores to the cord and the cable near
the terminal.
2 small ferrite cores (for 50" / 65" model)
When connecting a cable to the external speaker output terminal
attach one of these ferrite cores to the cable near the terminal.
1 cable clamper (for 50" model)
Fix the speaker cable using a cable clamper as shown in the
figure at right.
(Do not fix the cable clamper above the air ventilation holes.)
E-6
S-video
Power Cord
cable
Ferrite Core
Ferrite Core
HDMI Cord
HDMI Cord
Ferrite Core
Ferrite Core
Ferrite Core
Ferrite Core
RS232C Cable
Ferrite Core
Ferrite Core
Cable Clamper
