Encountering Non-Flat Surfaces; Figure 70: Tm Palletizing Operator Transportation (4/4) - Techman Robot TM Palletizing Operator User Manual

For wider jack lifts (typically 685mm wide), insert the jack lift into the side slot to lift the operator.
WARNING:
1. Avoid transporting the palletizing operator through damp environment.
2. Remove all of the external I/O connections of the TM Palletizing Operator.
3. Remove all air lines or external power lines connected to the equipment before transporting
it.
4. Remove all of the connections to external devices / external storage devices through any
interface.

5.5.1 Encountering Non-Flat Surfaces

When encountering non-flat surfaces, apply a wrench to adjust the leveling mounts in order to avoid
wobbling.
1. Rotate upper hex nut clockwise to loosen the leveling mounts
2. Rotate lower hex nut clockwise to lower the leveling mounts
3. Rotate lower hex nut counterclockwise to raise the leveling mounts
4. Rotate upper hex nut counterclockwise to tighten the leveling mounts
TM Palletizing Operator User's Manual Product Version: 1.0 / Document Version: 1.0

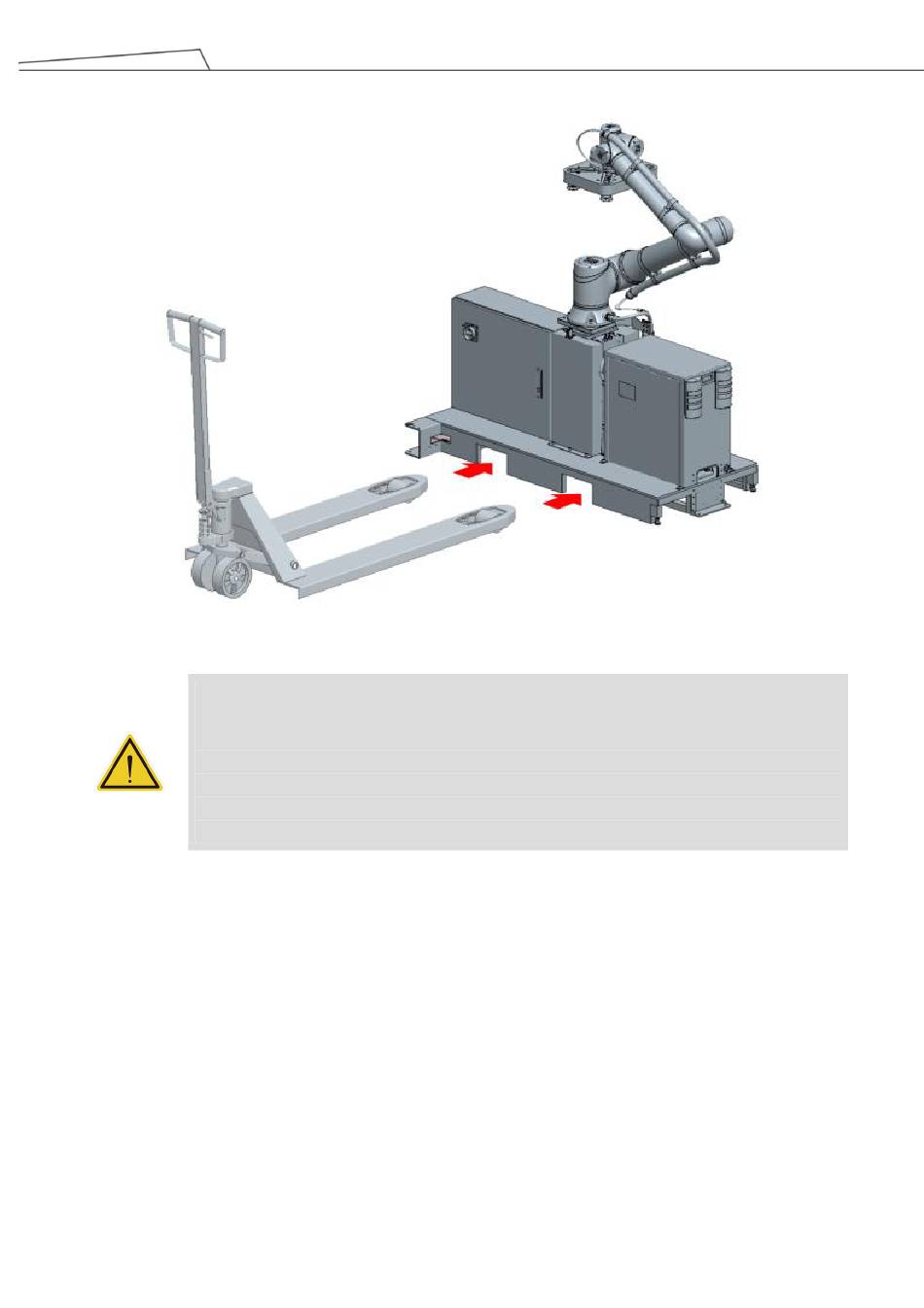

Figure 70: TM Palletizing Operator Transportation (4/4)
