Enter "Vision Job".
3.
4. If users click or tap on Vision Job, all the vision-related job for the robot will be displayed. Click or
tap on the "Pencil" icon to access "Step2_Recognizing Box Position".
Guide the robot to its initial position. When entering the screen below, press and hold "+" button
5.
on the teach pendant until the robotic arm reaches its initial position.
TM Palletizing Operator User's Manual Product Version: 1.0 / Document Version: 1.0

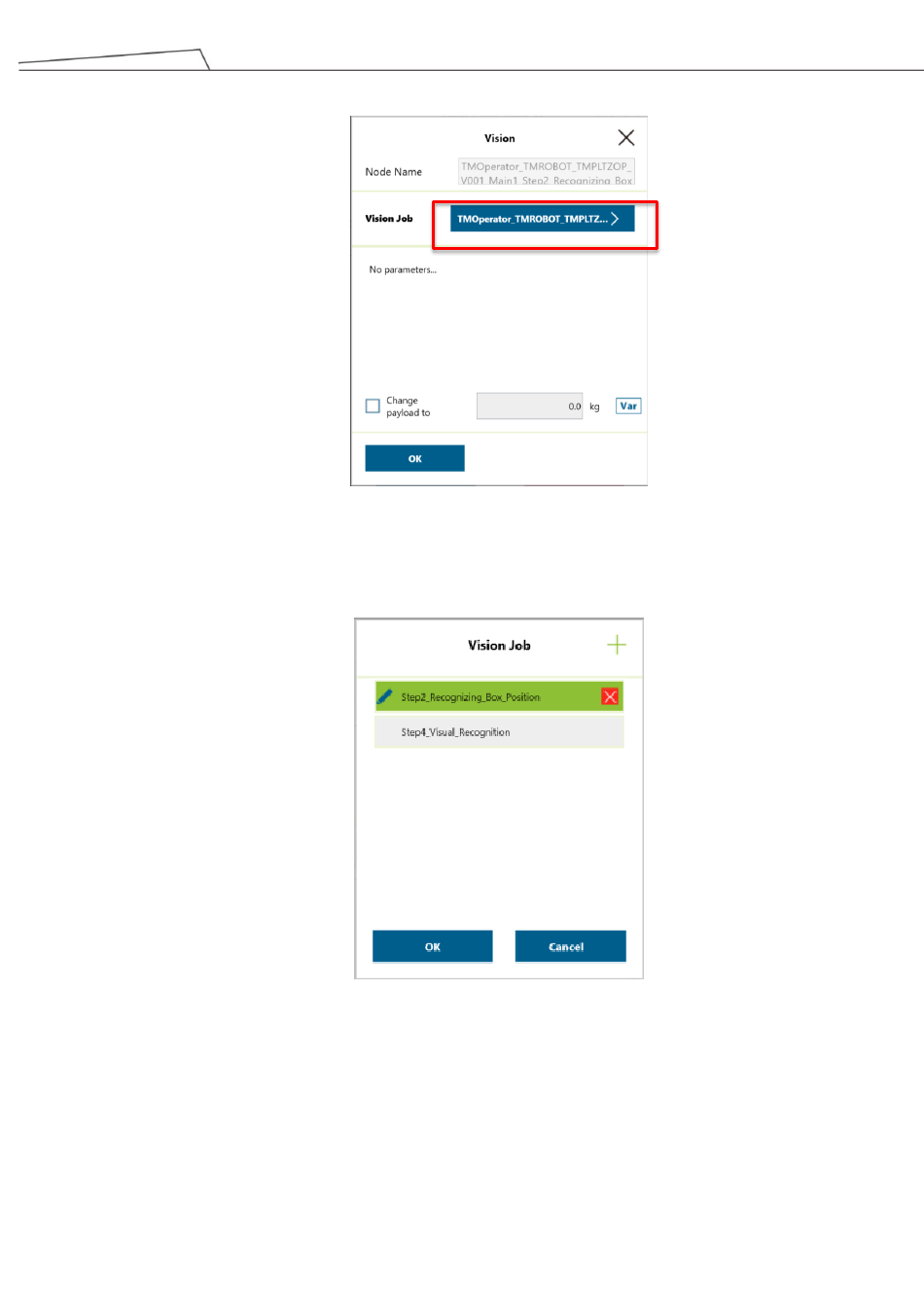

Figure 130: Vision job

Figure 131: Select "Step 2"
