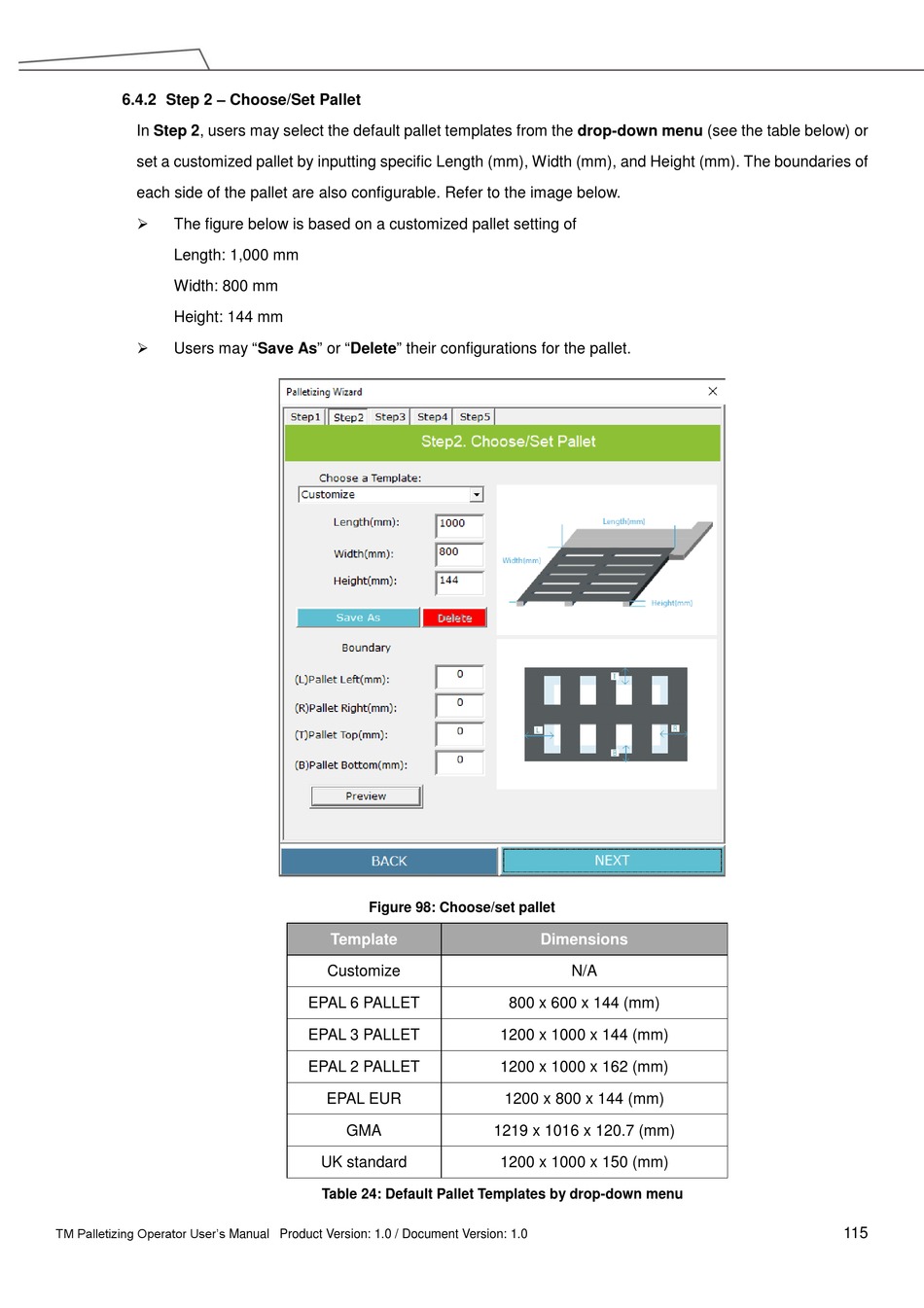

6.4.2 Step 2 – Choose/Set Pallet
In Step 2, users may select the default pallet templates from the drop-down menu (see the table below) or
set a customized pallet by inputting specific Length (mm), Width (mm), and Height (mm). The boundaries of
each side of the pallet are also configurable. Refer to the image below.

The figure below is based on a customized pallet setting of
Length: 1,000 mm
Width: 800 mm
Height: 144 mm
 Users may "Save As" or "Delete" their configurations for the pallet.
TM Palletizing Operator User's Manual Product Version: 1.0 / Document Version: 1.0

Figure 98: Choose/set pallet

Template
Customize
EPAL 6 PALLET
EPAL 3 PALLET
EPAL 2 PALLET
EPAL EUR
GMA
UK standard

Table 24: Default Pallet Templates by drop-down menu

Dimensions
N/A
800 x 600 x 144 (mm)
1200 x 1000 x 144 (mm)
1200 x 1000 x 162 (mm)
1200 x 800 x 144 (mm)
1219 x 1016 x 120.7 (mm)
1200 x 1000 x 150 (mm)
115
