4.

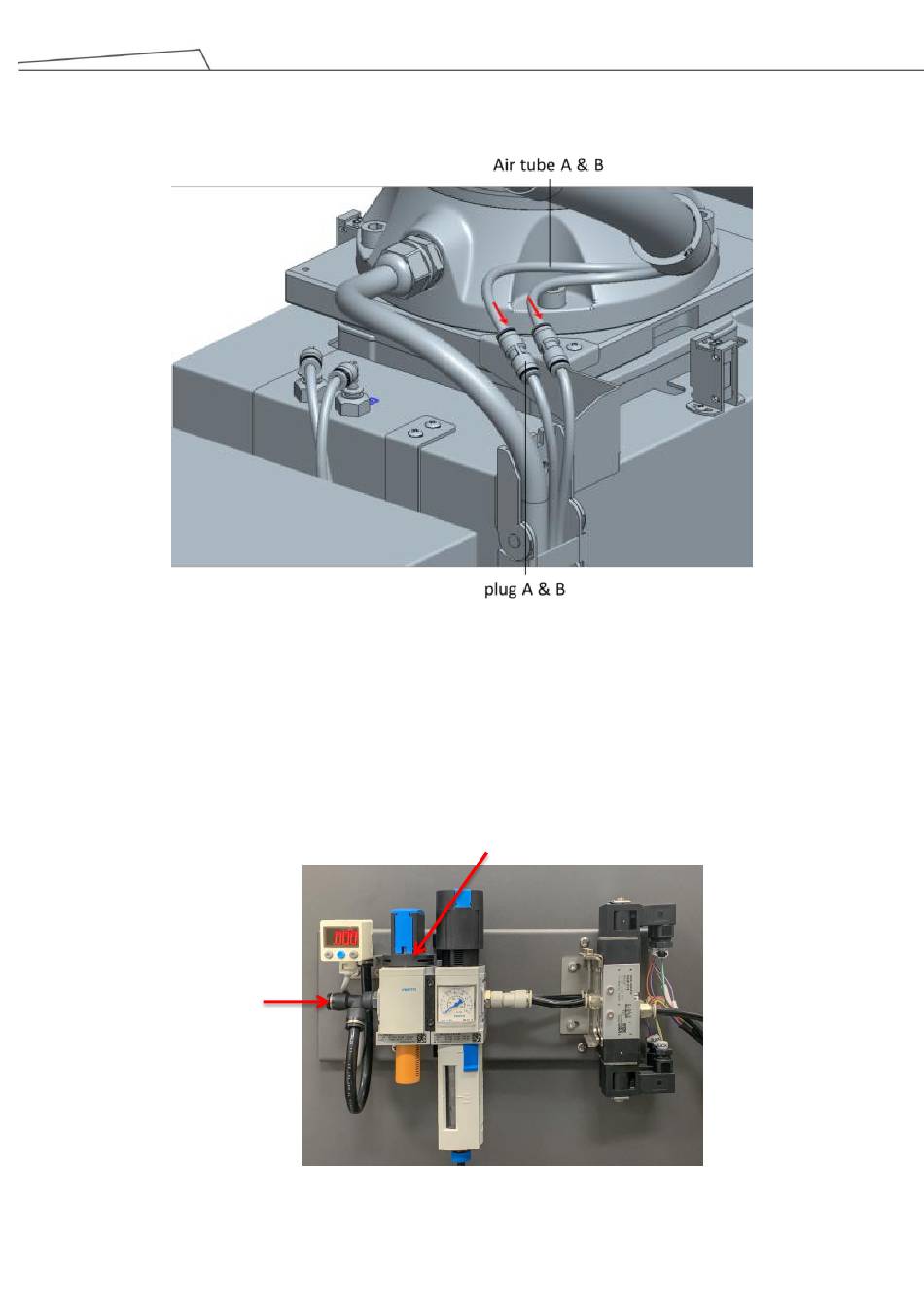

Connect the other ends of the air tube A&B plug to drag chain side plug. Make the connector is
inserted into the corresponding A&B plug.
5.3 Connecting External Compressed Air Supply
Before connecting external compressed air supply, make sure the ON/OFF valve is switched "OFF" (2-3)
position. The external compressed air supply is connected to the air unit of TM Palletizing Operator Base
through an 8mm compressed air tube.
Connect 8mm tube
TM Palletizing Operator User's Manual Product Version: 1.0 / Document Version: 1.0
Figure 63: Connection completed
ON/OFF Valve
at OFF (2-3) position
Figure 64: Air Unit for external compressed air supply
92
