2. The Expression Editor Setting will appear on the screen.
Click the text file you imported in Section 6.3. Check if the filenames are identicial (by default, the
filename is Layout.txt). Then click "OK" to proceed.
6.5.4.2 Step 2 – Recognizing Box Position
1. Lower the pillar to the minimum height. For instructions, see 6.5.3.1 Lowering the Pillar Height
Go to "Step2_Recognizing Box Positions".
2.
TM Palletizing Operator User's Manual Product Version: 1.0 / Document Version: 1.0

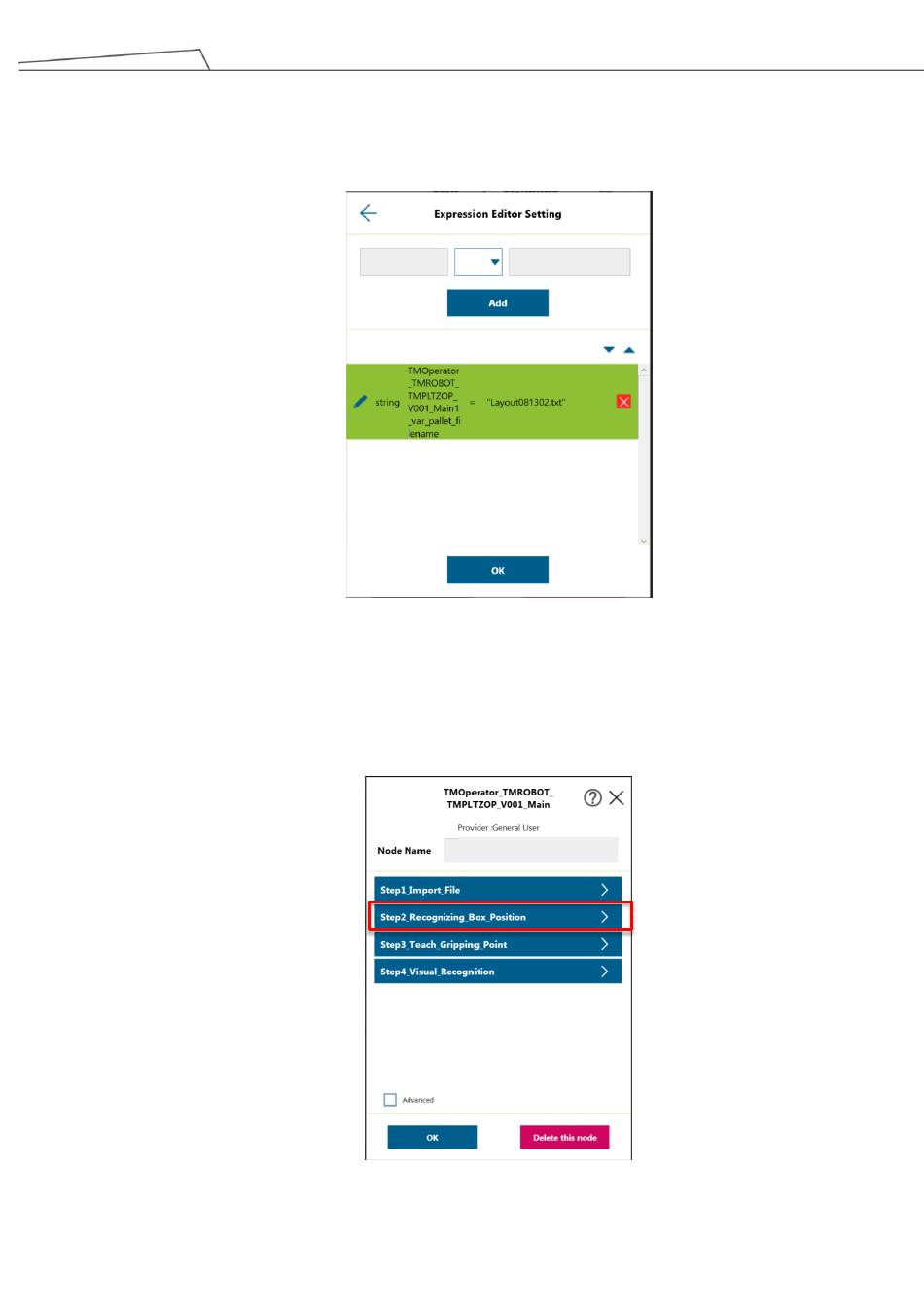

Figure 128: Input the file

Figure 129: Go to Step 2
