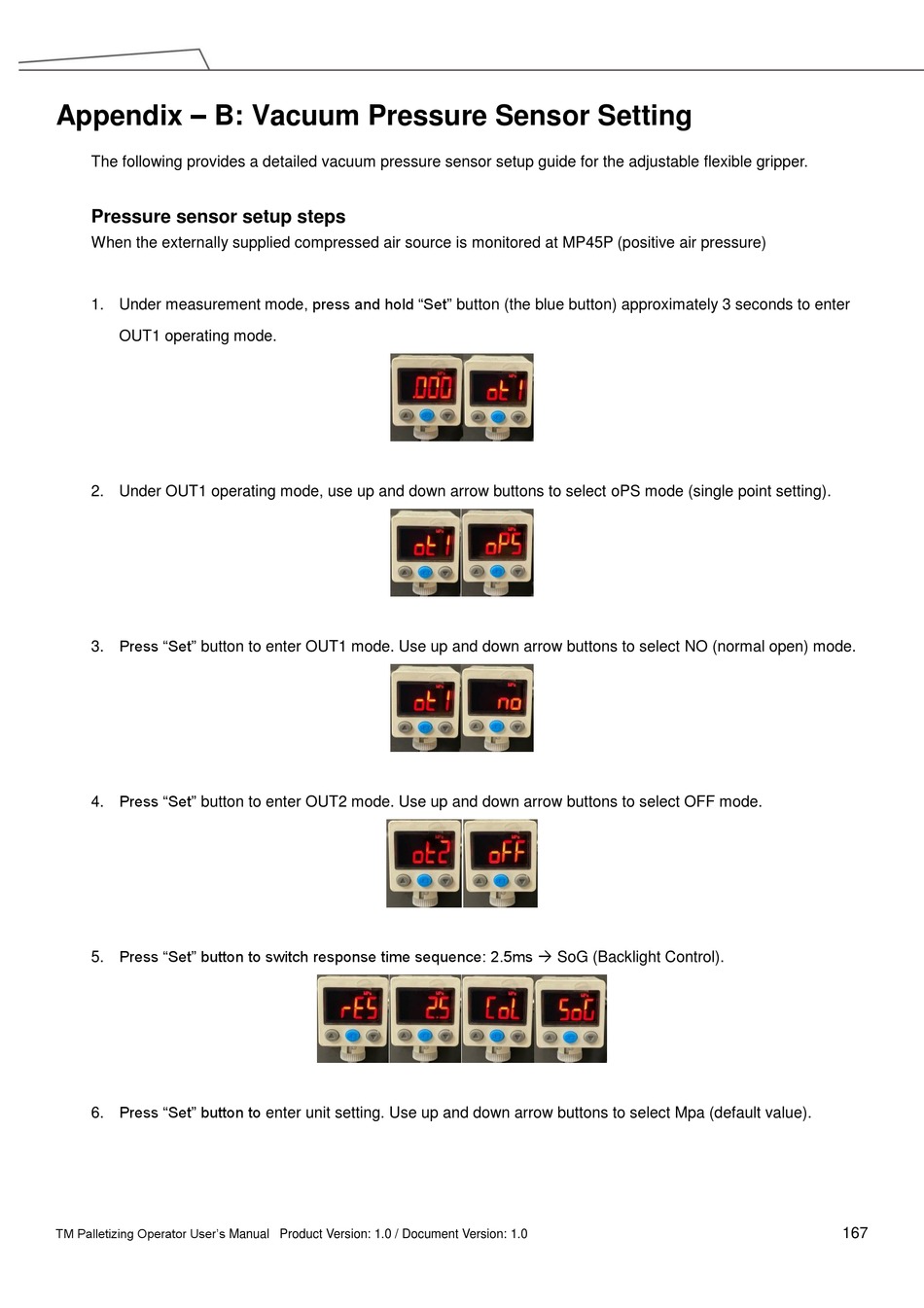

Appendix – B: Vacuum Pressure Sensor Setting
The following provides a detailed vacuum pressure sensor setup guide for the adjustable flexible gripper.
Pressure sensor setup steps
When the externally supplied compressed air source is monitored at MP45P (positive air pressure)
1. Under measurement mode, press and hold "Set" button (the blue button) approximately 3 seconds to enter
OUT1 operating mode.
2. Under OUT1 operating mode, use up and down arrow buttons to select oPS mode (single point setting).
3. Press "Set" button to enter OUT1 mode. Use up and down arrow buttons to select NO (normal open) mode.
4. Press "Set" button to enter OUT2 mode. Use up and down arrow buttons to select OFF mode.
5. Press "Set" button to switch response time sequence: 2.5ms SoG (Backlight Control).
6. Press "Set" button to enter unit setting. Use up and down arrow buttons to select Mpa (default value).
