Ruijie RG-RSR10-02E Series Hardware Installation And Reference Manual page 9

Table 1-6 Specifications of the AUX port
Index
Interface Standard
Connector
Rate
Cables
Serial cables are supplied with the RSR10-02E router.
FE Ports
Port Image and LED Indicators

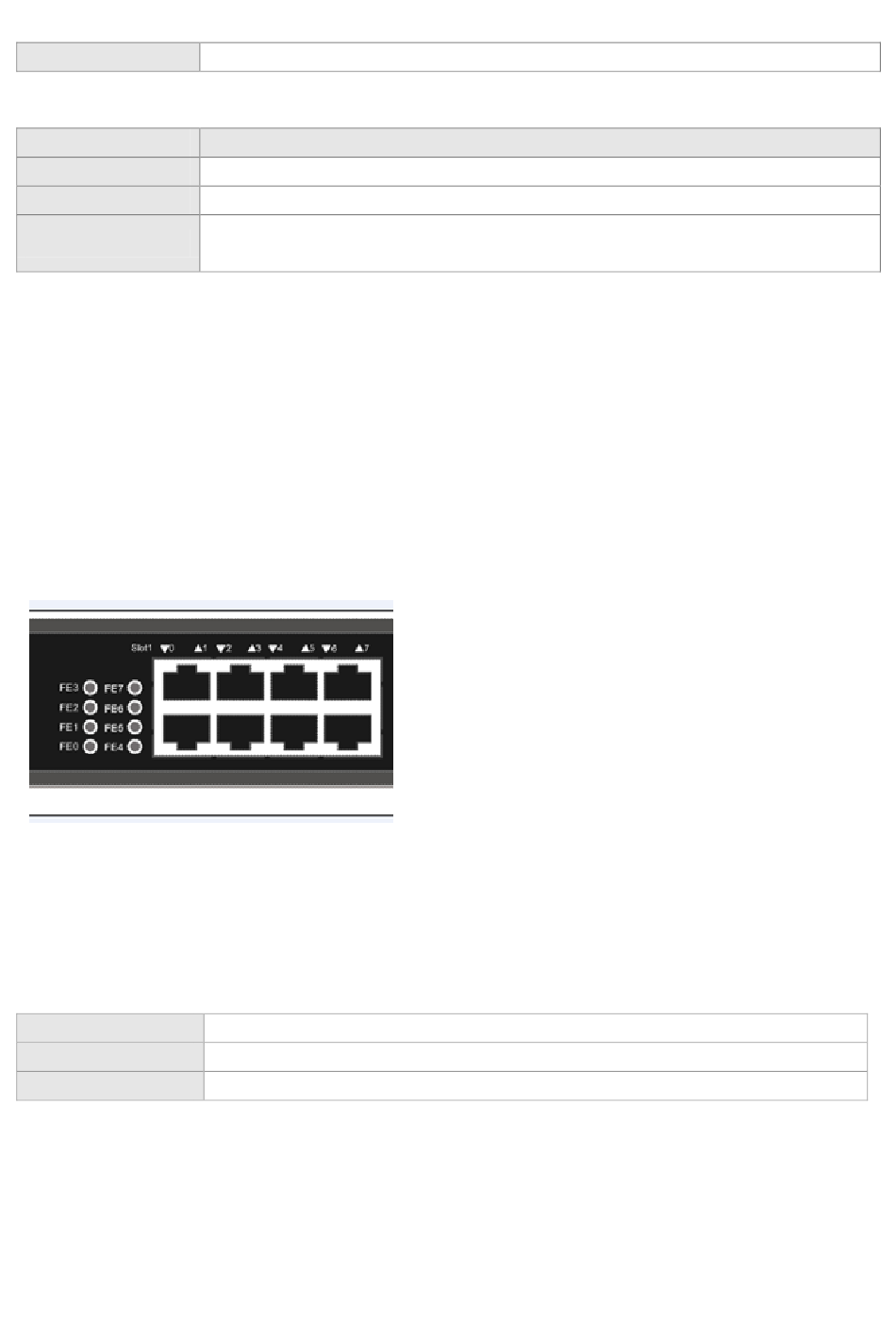

The following figure shows the fixed FE ports and its corresponding Link/ACT LED indicators.
Figure 1-5 FE Ports and Corresponding LED Indicators
For descriptions of FE port Link/ACT LED indicators, see the "LED Indicators" section in Chapter 1.
An RSR10-02E series router provides eight fixed 10/100 Mbps Ethernet ports.
The following table describes the basic features of the Ethernet ports.
Table 1-7 Specifications of the FE ports
Protocol
Quantity
Interface Type
Cables
All FE ports use Category 5 unshielded twisted pair (UTP) RJ-45 cables.
Straight-through cable: All wire pairs are in the same order on each end of the RJ-45 cable. The straight-through cable
is used to connect a terminal device such as a PC or router to a hub or LAN switch.
and 115200 bps. The default is 9600 bps.
Parameter
EIA/TIA-RS232
RJ-45
Supports 9600 to 115200 bps baud rates. The configurable frequency points are 9600,
19200, 38400, 57600 and 115200 bps. The default is 9600 bps.
IEEE Std 802.3-2008
8
10Base-T/100Base-TX interface
