Sic-3G-Cdma-E Interface Card - Ruijie RG-RSR10-02E Series Hardware Installation And Reference Manual

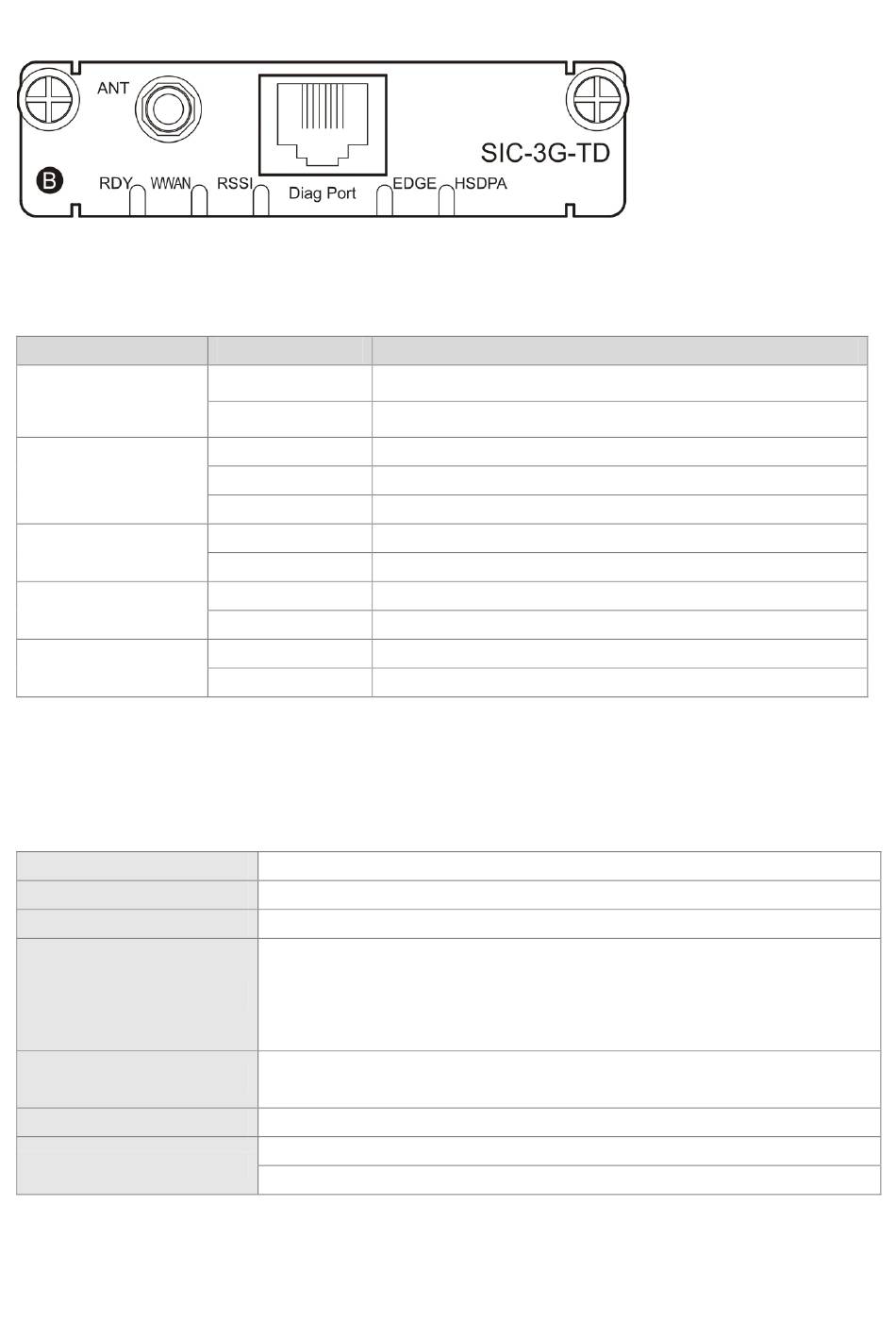

The following table describes panel indicators.
Table 1-32 LED Indicators on the SIC-3G-TD Card
Indicator
WWAN
(network status)
RSSI
HSDPA
EDGE
RDY
Features
The following table describes the basic features:
Table 1-33 Specification of the SIC-3G-TD Card
Number of Ports
Interface Type
Cables
Rate
Operating Temperature:
Humidity
EMC

SIC-3G-CDMA-E Interface Card

SIC card model: SIC-3G-CDMA
Status Meaning
Solid green Link up
Blinking green Data is being transmitted.
Solid green Strong signal
Blinking green Intermediate or low signal
Off Signal is weak or not present
Solid green Effective HSDPA service
Off No HSDPA service
Solid green Effective EDGE service
Off No EDGE service
On Initialization completed.
Off Initialization failed.
One
RJ-45
Serial cables
HSDPA (downlink 2.8 Mbps, uplink 384 Kbps)
EDGE (downlink 236.8 Kbps, uplink 236.8 Kbps)
TD-SCDMA (downlink 384 Kbps, uplink 384 Kbps)
GPRS (downlink 85.6 Kbps, uplink 85.6 Kbps)
Operating temperature: 0°C to 45°C
Storage temperature: -40°C to 70°C
Operating humidity: 10% to 90% RH
EMI: GB 9254-2008 Class A
EMS: GB/T 17618-1998
