SIC-3G-WCDMA Interface Card

SIC card model: SIC-3G-WCDMA
Image and Indicators

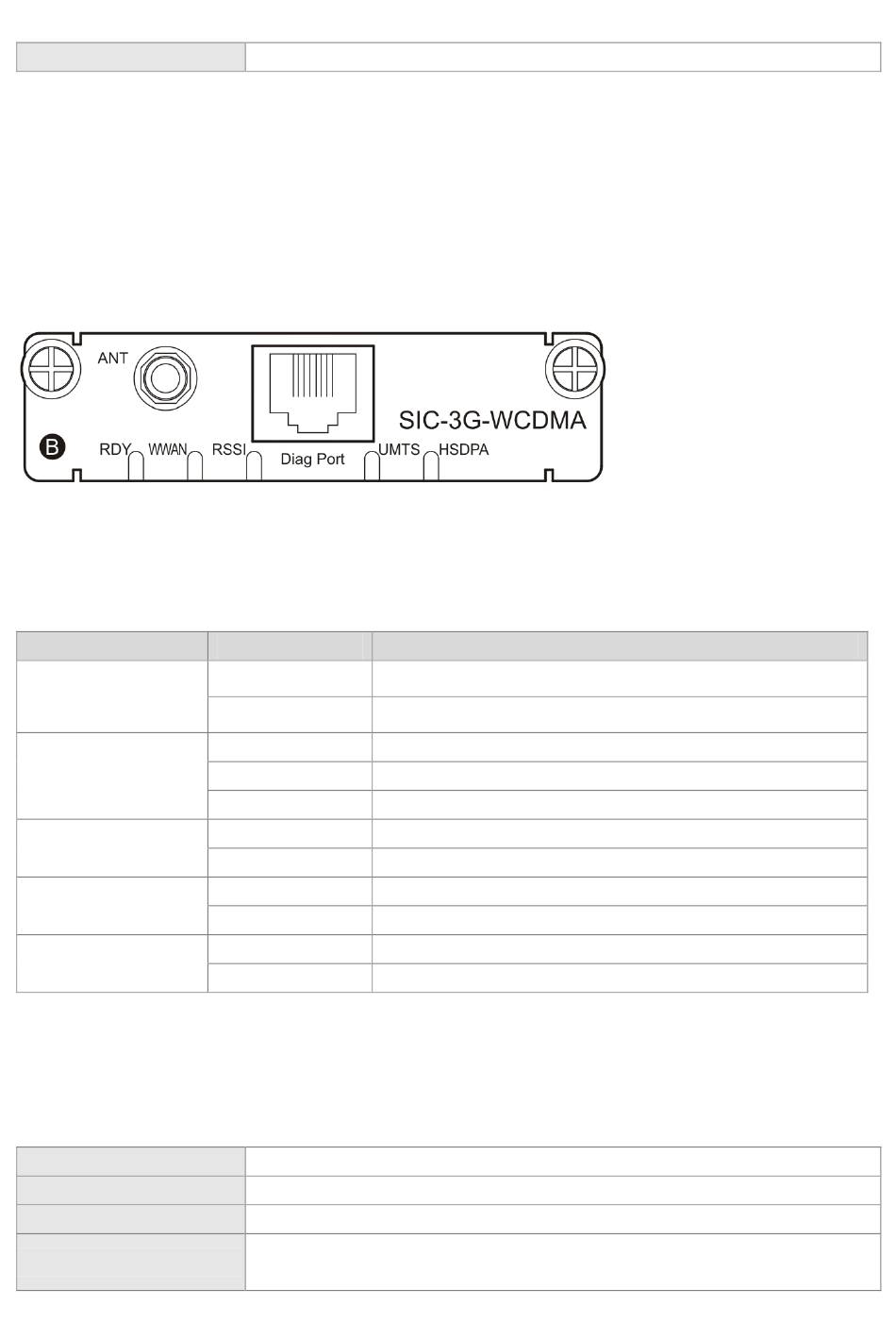

The following figure shows the image of SIC-3G-WCDMA.
Figure 1-38 SIC-3G-WCDMA
The SIC-3G-WCDMA is a Type B module, which can be inserted in a slot marked with "B".
The following table describes panel indicators.
Table 1-36 LED Indicators on the SIC-3G-WCDMA Card
Indicator
WWAN
(network status)
RSSI
HSDPA
UMTS
RDY
Features
The following table describes the basic features:
Table 1-37 Specification of the SIC-3G-WCDMA Card
Number of Ports
Interface Type
Cables
Rate
EMS: GB/T 17618-1998
Status Meaning
Solid green Link up
Blinking green Data is being transmitted.
Solid green Strong signal
Blinking green Intermediate or low signal
Off Signal is weak or not present
Solid green Effective HSDPA service
Off No HSDPA service
Solid green Effective UMTS service
Off No UMTS service
On Initialization completed.
Off Initialization failed.
One
RJ-45
Serial cables
HSDPA (downlink 7.2 Mbps; uplink 5.76 Mbps )
UMTS (downlink 384 Kbps; uplink 384 Kbps )
