Sic-3G-Wcdma-E Interface Card - Ruijie RG-RSR10-02E Series Hardware Installation And Reference Manual

Features
The following table describes the basic features:
Table 1-39 Specification of the SIC-3G-CDMA-E Card
Number of Ports
Interface Type
Cables
Rate
Operating Temperature:
Humidity
EMC

SIC-3G-WCDMA-E Interface Card

SIC card model: SIC-3G-WCDMA-E
Image and Indicators

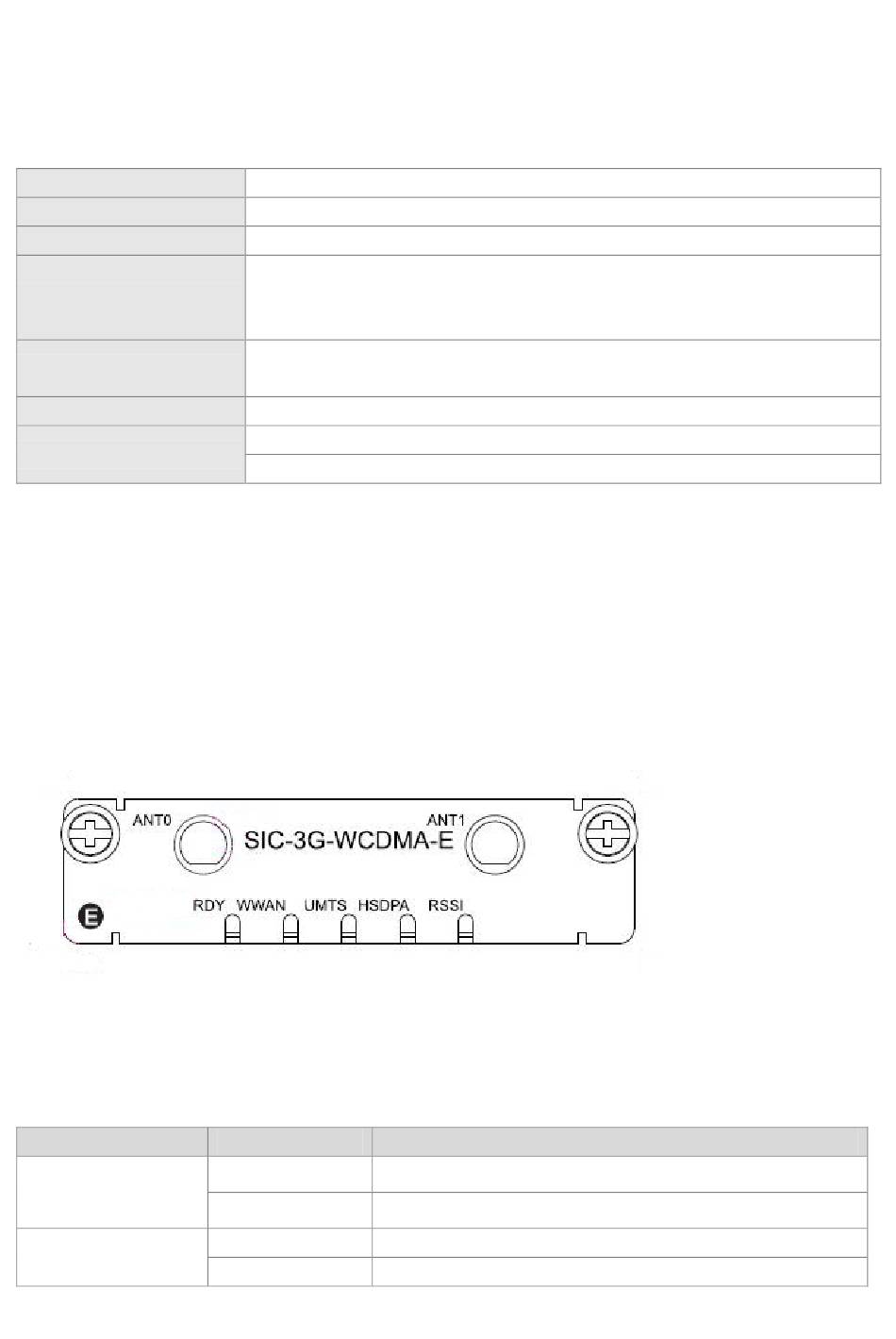

The following figure shows the image of SIC-3G-WCDMA-E.
Figure 1-40 SIC-3G-WCDMA-E
The SIC-3G-WCDMA-E is a Type E module, which can be inserted in a slot marked with "E".
The following table describes panel indicators.
Table 1-40 LED Indicators on the SIC-3G-WCDMA-E Card
Indicator
WWAN
(network status)
RSSI
One
RJ-45
Serial cables
1x EV-DO Rev.A (downlink 3.1 Mbps; uplink 1.8 Mbps )
1x EV-DO Rev.0 (downlink 2.4 Mbps; uplink 153.6 Kbps )
1x RTT (downlink 153.6 Kbps; uplink 153.6 Kbps )
Operating temperature: 0°C to 45°C
Storage temperature: -40°C to 70°C
Operating humidity: 10% to 90% RH
EMI: GB 9254-2008 Class A
EMS: GB/T 17618-1998
Status Meaning
Solid green Link up
Blinking green Data is being transmitted.
Solid green Strong signal
Blinking green Intermediate or low signal
