Sic-8A Interface Card - Ruijie RG-RSR10-02E Series Hardware Installation And Reference Manual

The cables are customer supplied. For the use of cables, see Chapter 6.

SIC-8A Interface Card

SIC card model: SIC-8A
Image and Indicators

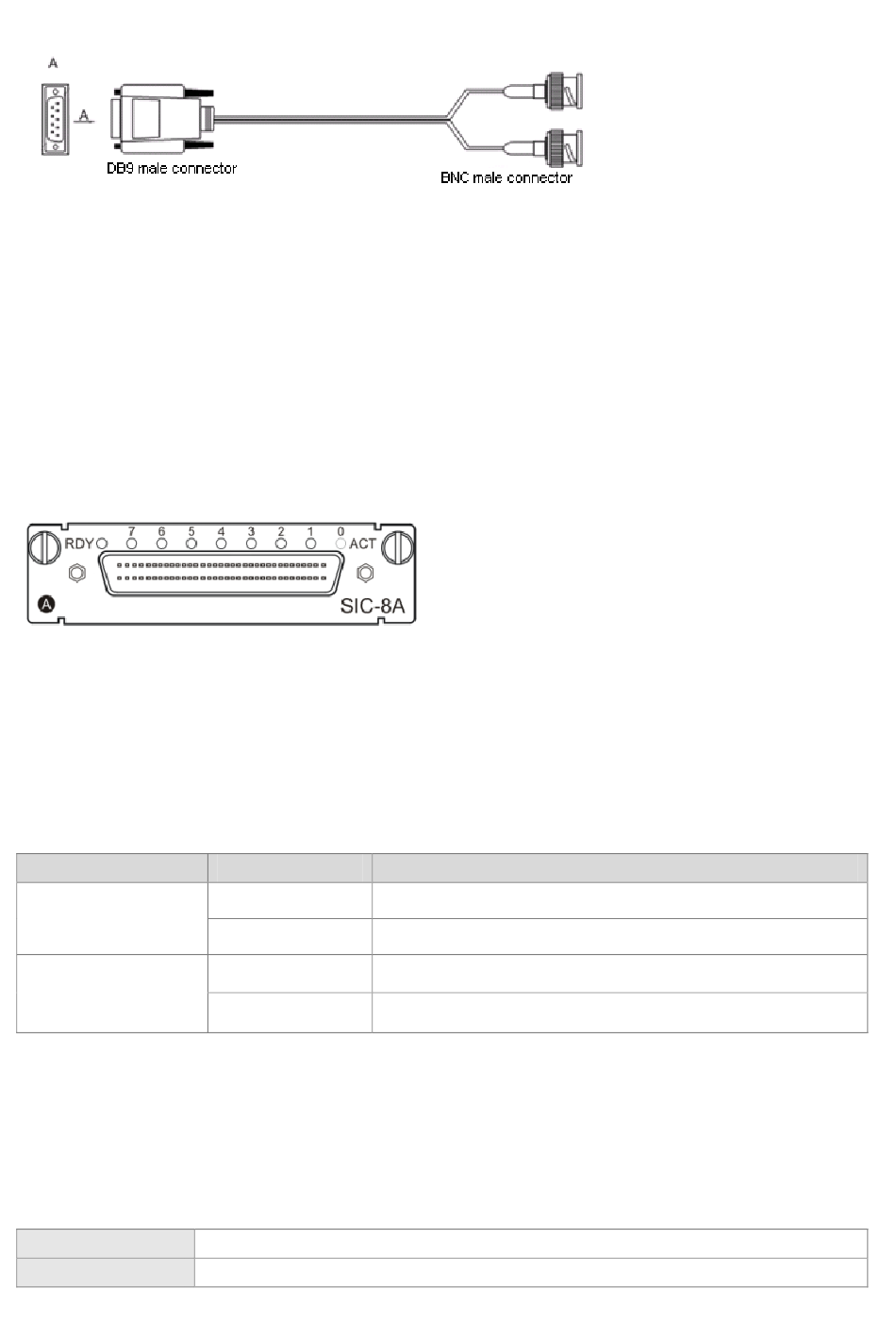

The following figure shows the image of an 8-port asynchronous interface card.
Figure 1-26 SIC-8A
The SIC-8A is a Type A SIC, which can be inserted in a slot marked with "A"
The interface card includes one SCSI DB68 connector and eight asynchronous interfaces. It includes one RDY indicator,
and eight ACT indicators.
The following table describes panel indicators:
Table 1-21 LED Indicators on the SIC-8A Card
Indicator
ACT
RDY
Features
The following table describes the basic features:
Table 1-22 Specifications of the SIC-8A Card
Number of Ports
Interface Type
Status
Blinking
Off
On
Off
One
SCSI DB68 female connector
Meaning
Data is being transmitted.
No data is being transmitted.
Initialization completed.
Initialization failed.
