Back Panel; About Fixed Ports; Console Port And Auxiliary Port - Ruijie RG-RSR10-02E Series Hardware Installation And Reference Manual

Off
Solid green
GE Port Blinking green
Solid yellow
Blinking yellow

Back Panel

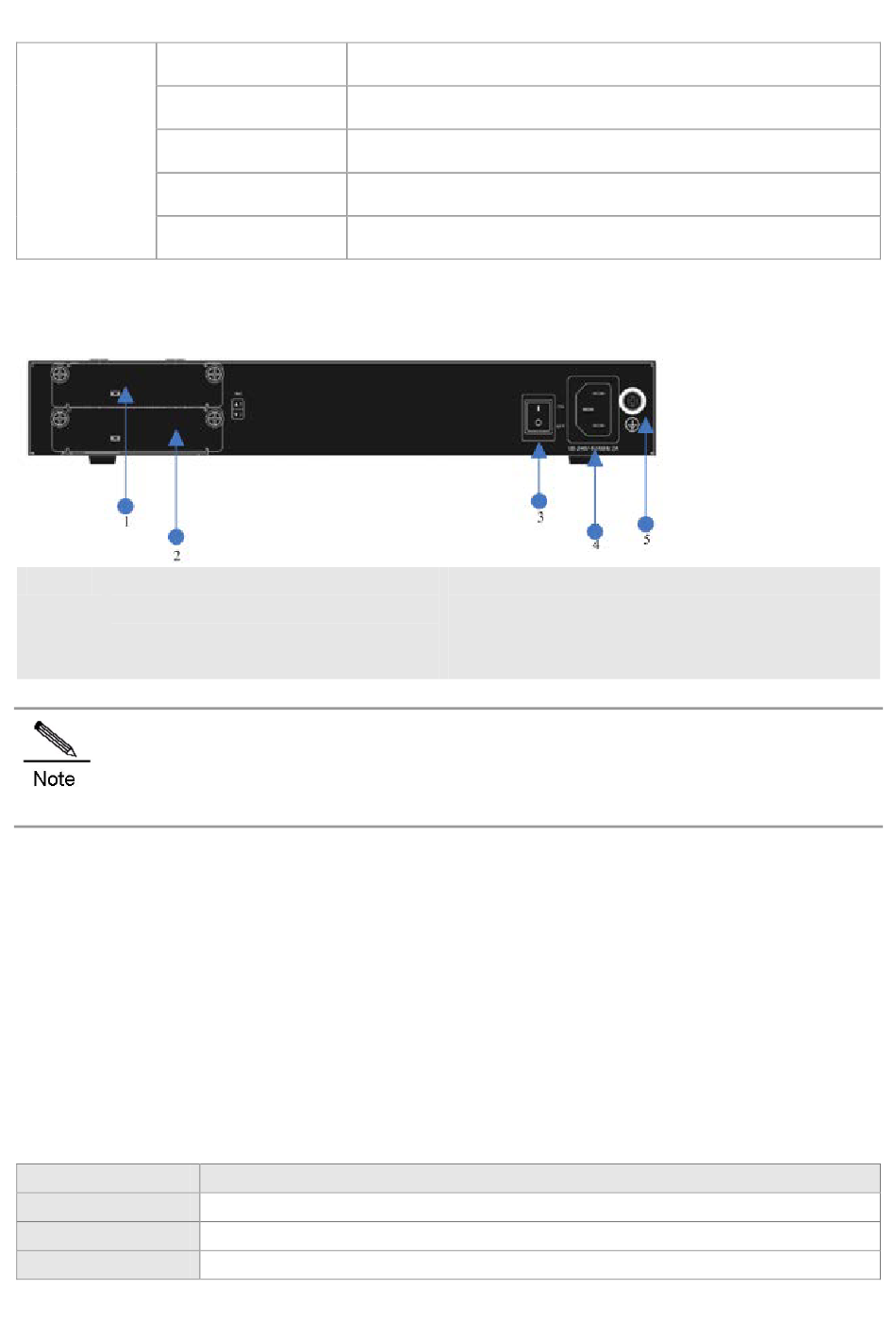

Figure 1-4 Back Panel of the RSR10-02E Router
Note: 1: SLOT 3
2: SLOT 2
3: Power switch
4: Power receptacle
If you cannot determine which slot is occupied by the current module, you can run the show slots command
in privileged EXE mode to view the slot number in router version information

About Fixed Ports

This section describes fixed ports on the RSR10-02E series router.

Console Port and Auxiliary Port

Features
The RSR10-02E series router provides one console port and one AUX port.
Table 1-5 Specifications of the Console port
Index
Interface Standard
Connector
Rate
No link.
GE port link up at 1000 Mbps
GE port link up at 1000 Mbps, and is receiving or transmitting data.
GE port link up at 10/100 Mbps.
GE port link up at 10/100 Mbps, and is receiving or transmitting data.
Parameter
EIA/TIA-RS232
RJ-45
Supports 9600 to 115200 bps baud rates. The configurable frequency points are 9600, 57600
5: Chassis ground connector
