Sic-3G-Wcdma-H-E Interface Card - Ruijie RG-RSR10-02E Series Hardware Installation And Reference Manual

Indicator
HSDPA
UMTS
RDY
Features
The following table describes the basic features:
Table 1-41 Specification of the SIC-3G-WCDMA-E Card
Number of Ports
Interface Type
Cables
Rate
Operating Temperature:
Humidity
EMC

SIC-3G-WCDMA-H-E Interface Card

SIC model: SIC-3G-WCDMA-H-E
Image and Indicators

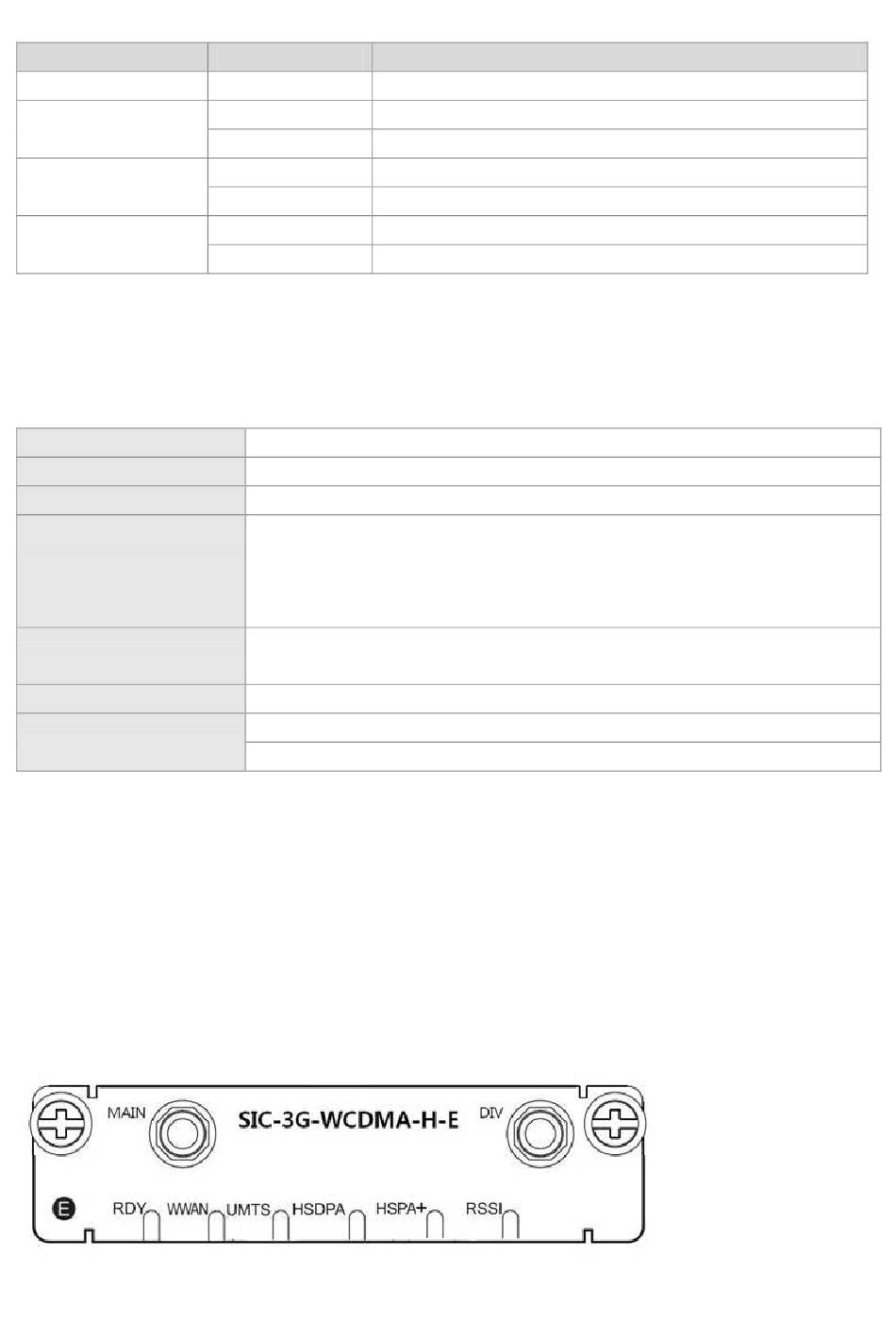

The following figure shows the image of SIC-3G-WCDMA-H-E
Figure 1-41 SIC-3G-WCDMA-H-E
Status Meaning
Off Signal is weak or not present
Solid green Effective HSDPA service
Off No HSDPA service
Solid green Effective UMTS service
Off No UMTS service
On Initialization completed.
Off Initialization failed.
One
N/A
N/A
HSDPA (downlink 7.2 Mbps; uplink 5.76 Mbps )
UMTS (downlink 384 Kbps; uplink 384 Kbps )
EDGE (downlink 236.8 Kbps; uplink 236.8 Kbps )
GPRS (downlink 85.6 Kbps; uplink 85.6 Kbps )
Operating temperature: 0°C to 45°C
Storage temperature: -40°C to 70°C
Operating humidity: 10% to 90% RH
EMI: GB 9254-2008 Class A
EMS: GB/T 17618-1998
