Manual operation:
Rapid on-site cleaning can be carried out with the menu:
"PARAM" "Manual operation"
Weekly programming:
"PARAM" "Set up 2"
Each day can be programmed individually. The following programmes are available
• "Clean": Cleaning started by entering the start time (s. fig. 27).
• "Clean Int": Cleaning is carried out at intervals with a defined spacing (s. fig. 27). This
programme cannot be started via the binary inputs directly.
• "User": User-defined cleaning programmes (create in Programme Editor; from
Field NAD1).
Programme sequences (cleaning example)
Monday:
2 x cleaning (at 11:00 and at 18:00) with 120 s. water, of which 60 s. additionally with
cleaner.
Clean every 30 mins. between 18:20 and 24:00 (= 1800 s.) with 120 s. water, of which
60 s. additionally with cleaner.
Clean
Hold Hold and Hold delay time
water 60 sec
+cleaner
Clean Int
Hold Hold and Hold delay time
water 60 sec
+cleaner
Measuring
time
18:20

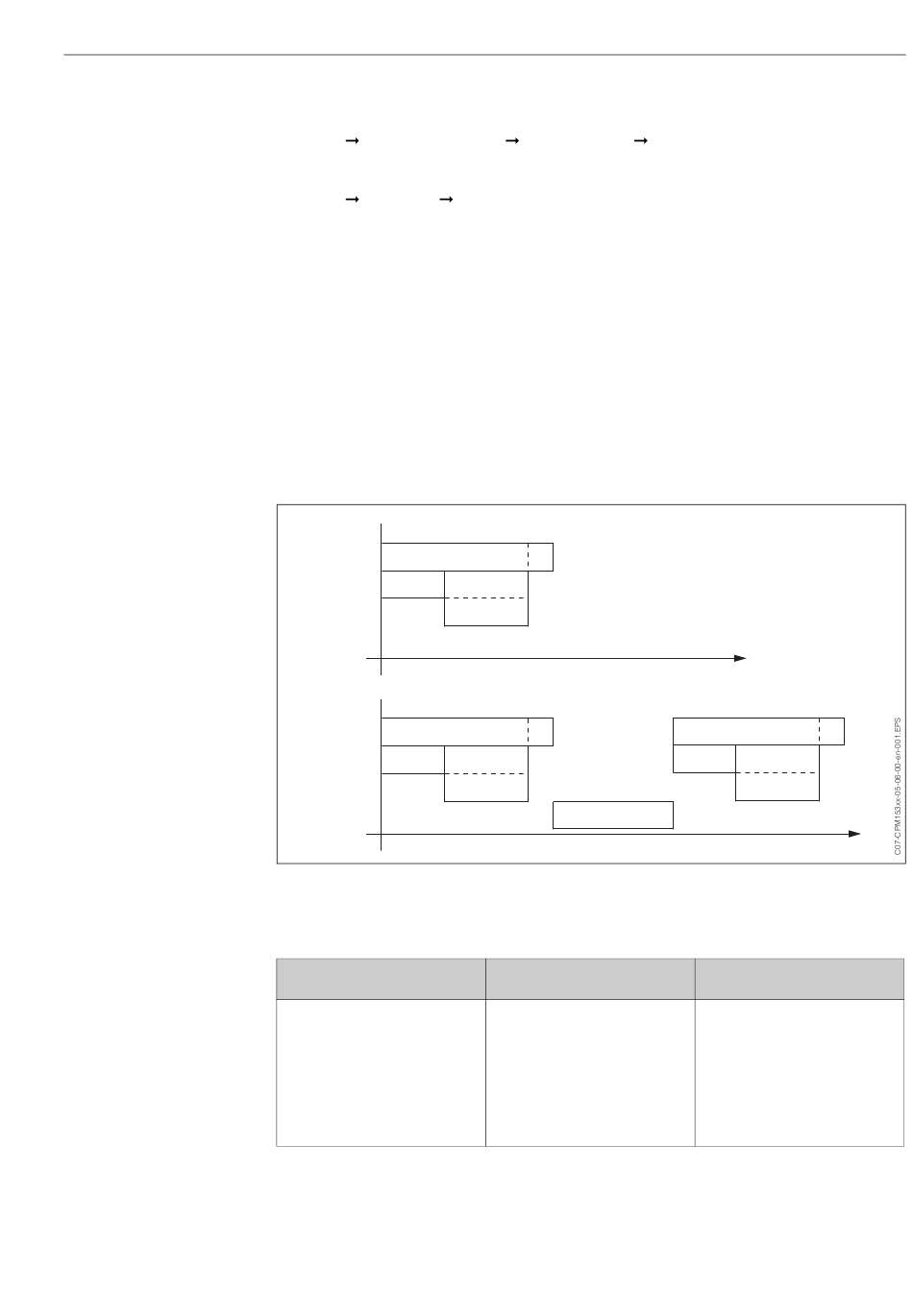

Fig. 27: Graphic representation of the above example
Required settings according to the example
(bold: to be set by user):
Field OAA1
Clean
11:00 11:02
Clean
18:00 18:02
Clean Int
24:00
18:20
In this way, each day can be programmed (or copied) individually.
"ChemoClean"
"ChemoClean":
60 sec
+cleaner
60 sec
+cleaner
Meas. time1800 sec
Field OAA2
(with "Clean")
01 Water 60 s
02 +Cleaner 60 s
03 Water 0s
04 Rep. Clean 0x
6 Commissioning
press "E" twice ("start cleaning")
Hold and Hold delay time
60 sec 60 sec
+cleaner
Field OAA2
(with "Clean Int")
01 Water 60 s
02 +Cleaner 60 s
03 Water 0s
Measuring time 1800s
