3 Installation
10

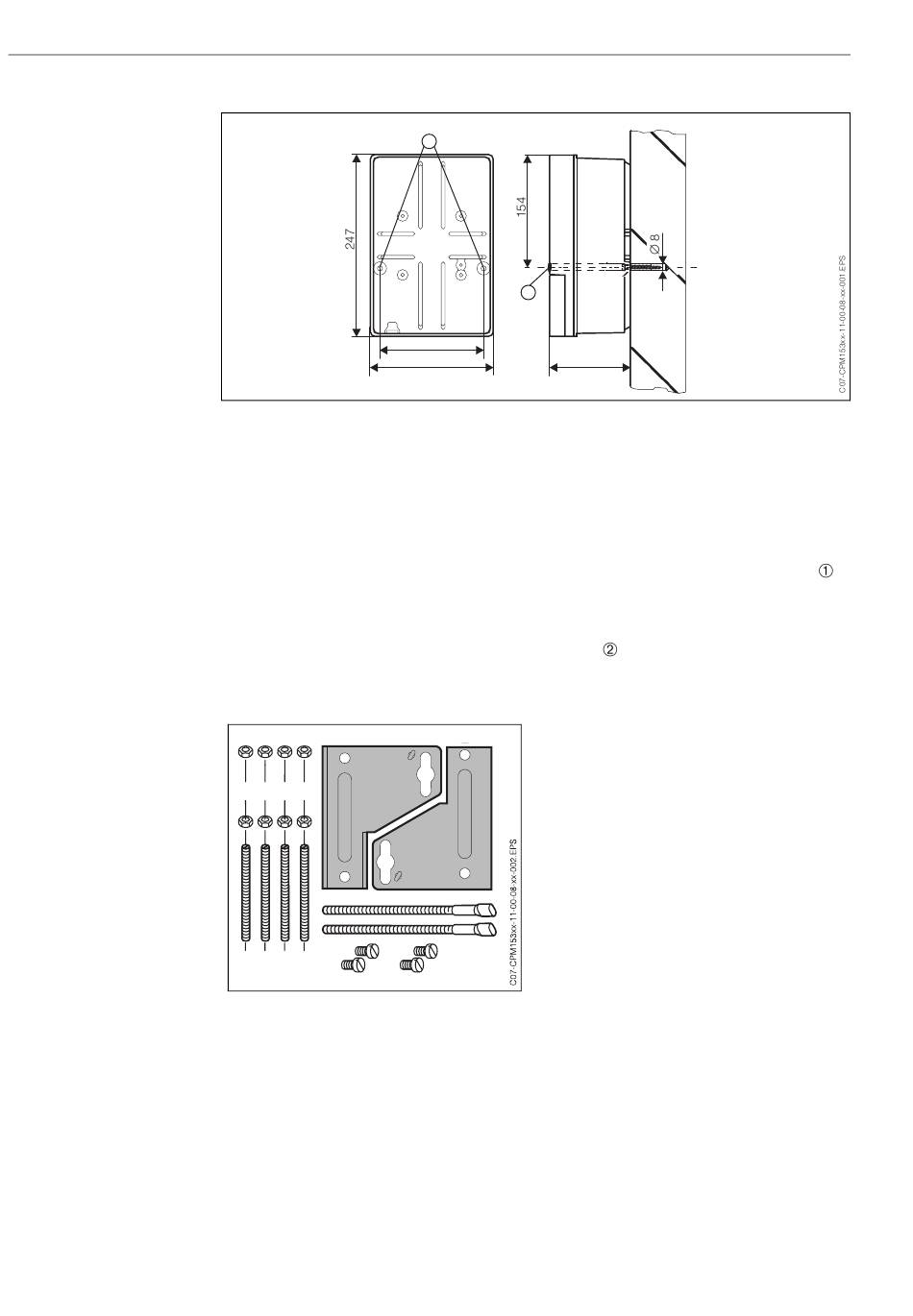

Fig. 2:
Dimensions for wall mounting: Fixing screw: dia. 6 mm
Wall plug: dia. 8 mm
1: Fixing drillholes
2: Plastic cover caps
For the wall mounting of the transmitter proceed as follows:
1.
Prepare drill holes acc. to fig. 2
2.
Push the two fixing screws from the front through the appropriate fixing bores
– Fixing screws (M6): max. dia. 6.5 mm
– Screw head: max. dia. 10.5 mm
3.
Mount the transmitter housing on the wall as shown.
4.
Cover the drill holes with the plastic cover caps
3.3.3
Post mounting and panel mounting
Fig. 3:
Mounting kit Mycom S CLM 153
1
2
142
167
100
Mount the parts of the mounting kit (see
accompanying figure) at the back of the
housing as depicted in fig. 4.
Required mounting cutout for panel
mounting: 161 x 241 mm
Installation depth: 134 mm
Pipe diameter: max. 70 mm.
Mycom S CLM 153
.
