CODE CHOICE
(default = bold)
amplification
KDisturb
KMax
1 1
Kdisconnect
-25 -25 0 0
0 0 4 4

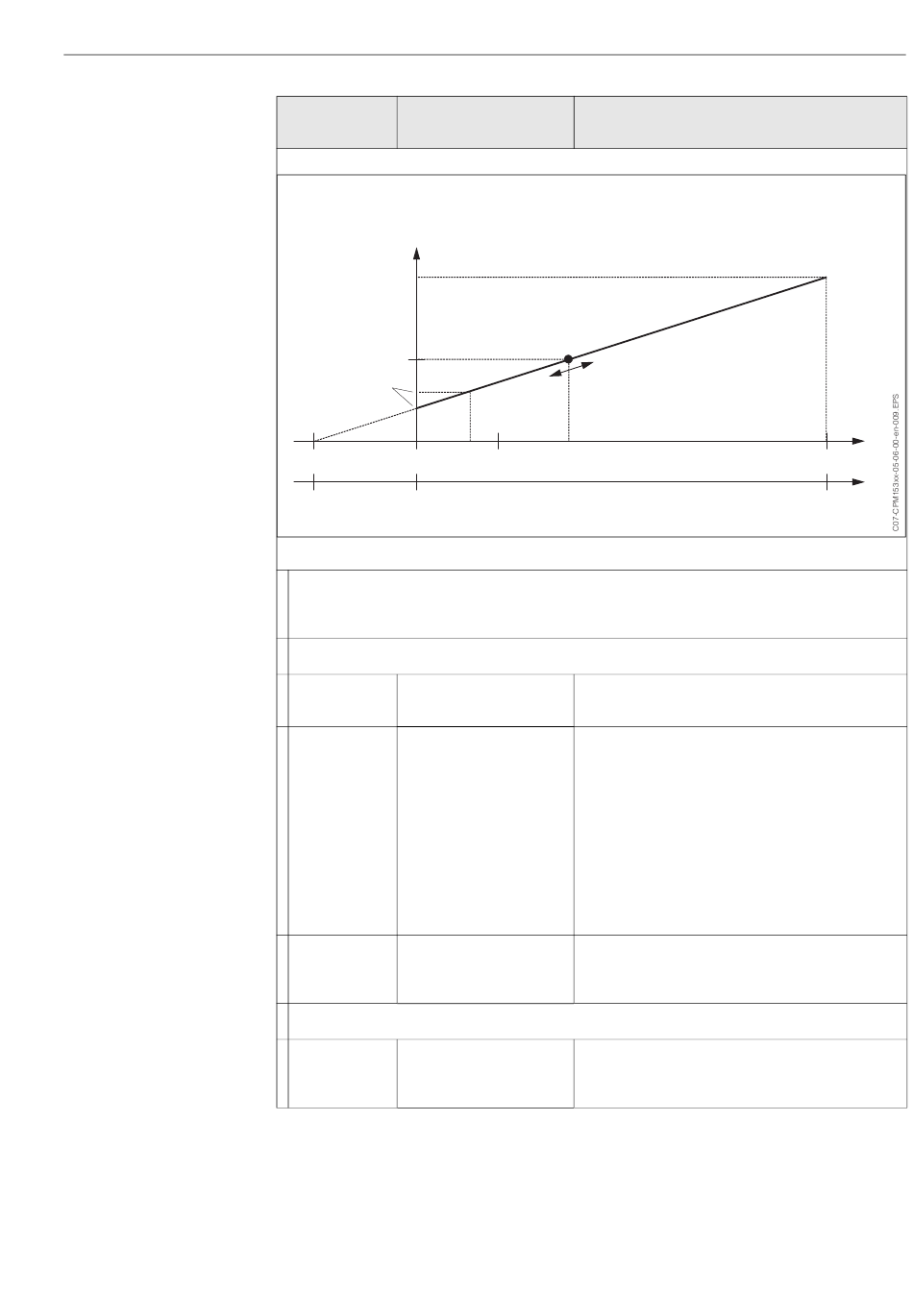

Fig. 24: Multiplying feedforward control
Feedback:
The following selection is dependent on whether you have a resistance or a current input.
With resistance input
0 ... 1 k Ω
MD1
0 ... 10 k Ω
MD2 act. resistance
____ k Ω
MD3 act. resistance
____ k Ω
For current input 1:
MD4 y = 0 ... 100
%
INFO
20 20
Select range
for resistance.
Assign a value for y = 0%
Drive the valve to y = 0%.
The current resistance is displayed. You can change
the valve position either manually or by pressing the
arrow keys on the transmitter. Confirm the position for y
!
= 0 % by pressing the "E" key.
Note!
If you cannot change it using the arrow keys, please
check the "Actuators" menu (Field 165) to see if the
relays have been assigned to valve control.
Assign a value for y = 100%
Drive the valve to y = 100%.
Proceeding as in the previous field.
mA: Select current range
4 ... 20 and assign the percentage range.
20 ... 4
6 Commissioning
current input signal in %
100 100
current input signal in mA
20 20
