"MEAS" switches to Measuring mode. This displays the measured values. Use the
!
arrow keys to scroll through the different measuring menus.
Press "MEAS" to exit any of the "PARAM", "DIAG", "CAL" menus without terminating the
settings / calibration.
"CAL" switches to the calibration menu for calibrating the sensors.
"E" (Enter) moves you one step forward in a menu or confirms a selection you made.
LED (status display)
Green: everything OK.
Red: an error has occurred.
• You can scroll through the items with the arrow keys, and then highlight your
selection (if there is a choice offered)
or
• Increment or decrement numbers by one step with "+" / "-".
Move to the next digit with the "right arrow" (editor type 1) or
• "Activate" with the "right arrow" and scroll through the selection with "+" / "-"
(editor type 2) (for information on editor types, see page 22).
5.1.3
Measuring menus

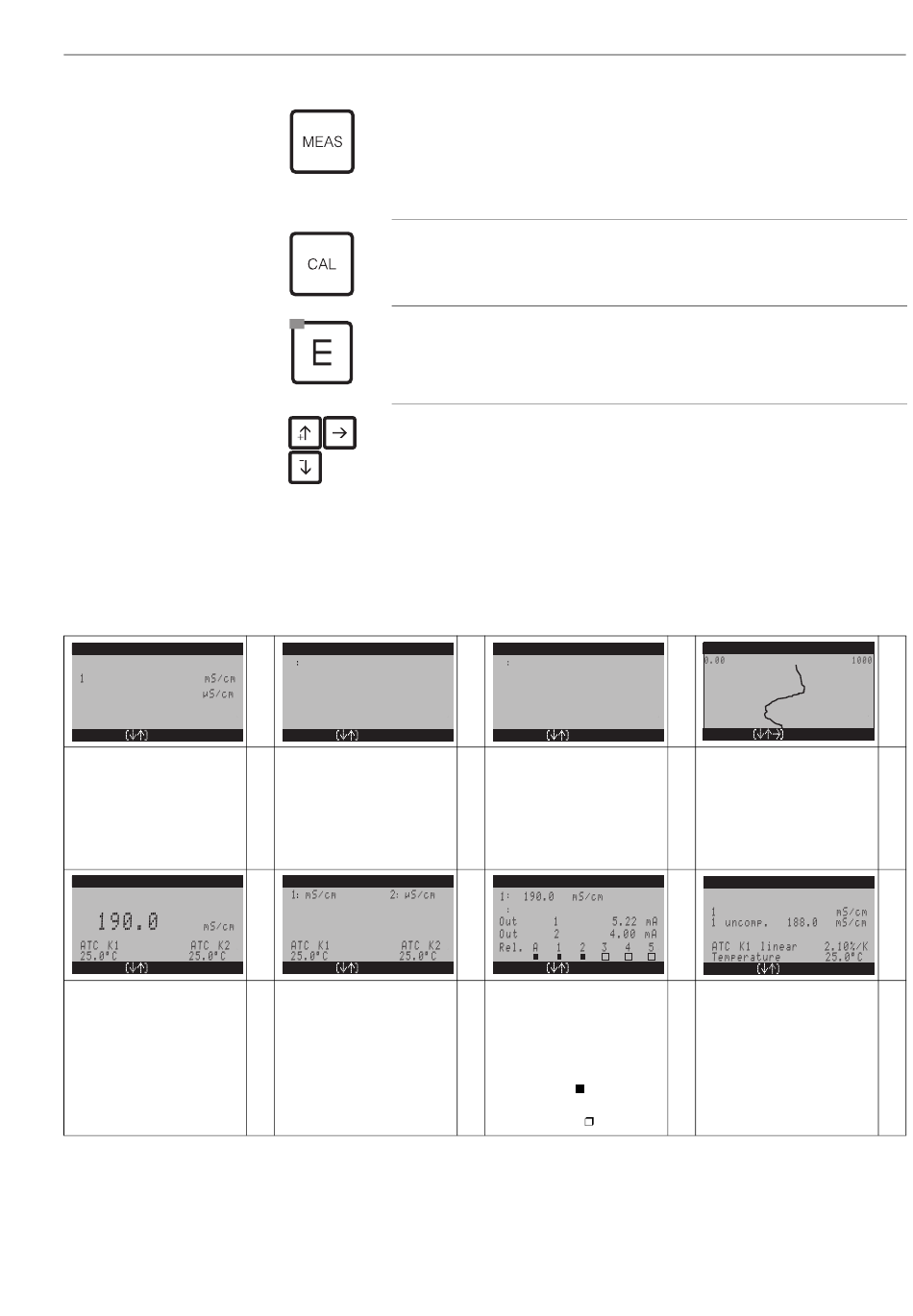

You can choose between the different measuring menus. Use the arrow keys to scroll
between the different menus.
W
Measure
V
1
190.0
mS/cm
Select
One-circuit/Two-circuit:
The current measured value
of circuit 1 is displayed.
W
Measure
V
190.0
3.52
Select
Two-circuit:
With a two-circuit device, in
this measuring menu you can
see both measured values
next to each other and their
corresponding temperatures.
Note!
W
PS1
Measure
V
2
3.52
Select
Two-circuit:
The current measured value
of circuit 2 is displayed.
W
PS1
Measure
V
2
3.52
µS/cm
Select
In this measuring menu, you
can see the current and
voltage values and the
contact states of the relay at
a glance (one-circuit device:
only primary value 1).
Active relay =
(with
function)
Inactive relay =
W
PS1
Measure
V
mS/cm 1
µS/cm
Select
One-circuit/Two-circuit:
If you have activated one
(both) data logger, you can
see the current measured
value(s) characteristic here in
the record mode
(subsequently).
W
PS1
Measure
V
190.0
Select
One-circuit:
With a one-circuit device you
can see the primary value
(temperature compensated
and below non-temperature
compensated) with the corre-
sponding temperature.
5 Operation
W
PS1
V
W
PS1
V
19
