Rev A

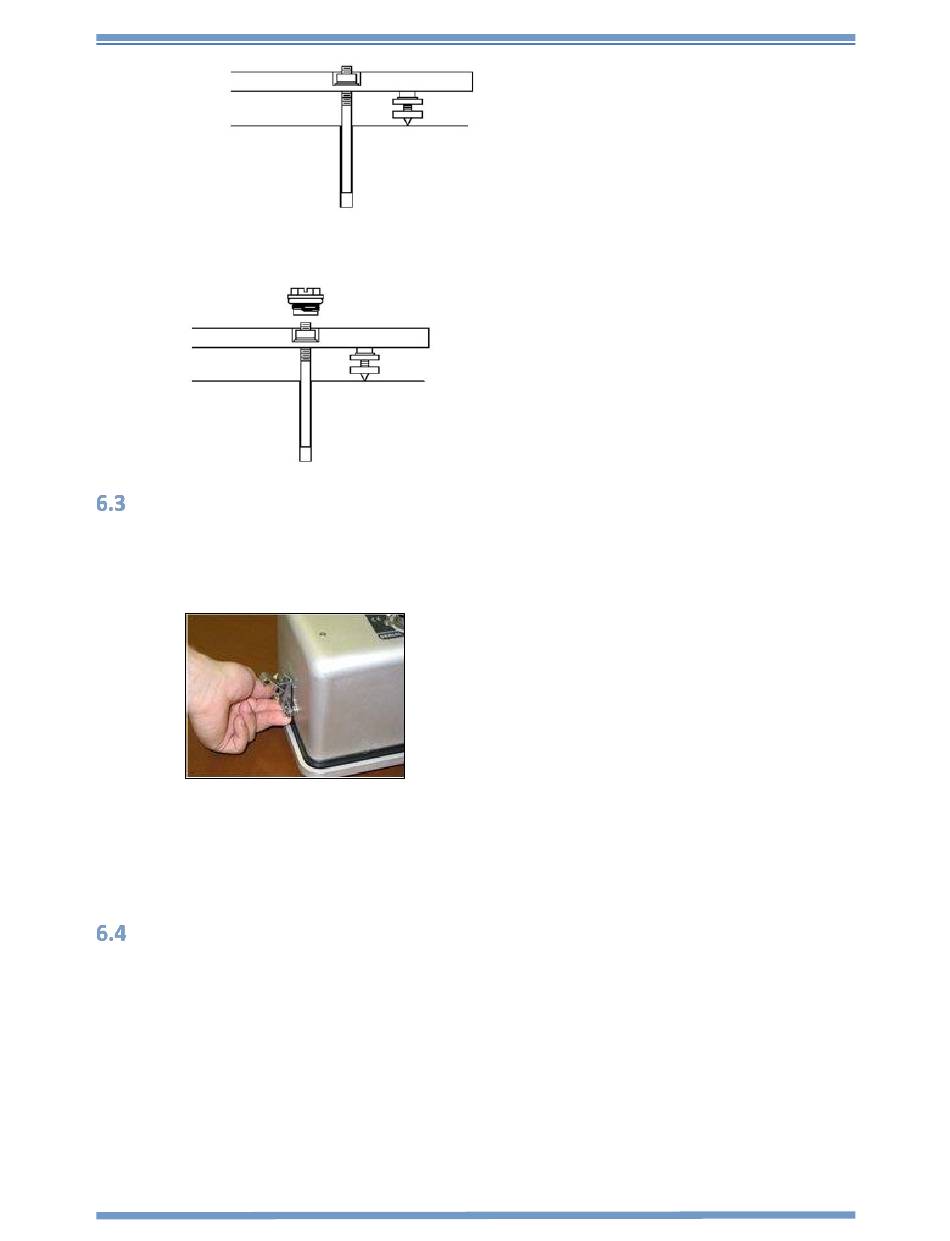

13. Seal the Anchor bolt hole with the Seal Plug (Item 17) as shown.

Re-assemble the 130-SMHR/9

1. Place the completed flipped enclosure lid assembly (Item 1) onto the mounting plate (Item 14).
2. Re-install the ground cable before setting the cover on the base plate.
3. Make sure the gasket (Item 8) sits in the groove of the mounting plate.
4. Spread the latches (Item 3) so the hooks do not interfere with the base.
5. Push firmly on the top of the enclosure lid to ensure a complete seal.
6. Hook latches into the slot beneath the base plate.
7. Snap the two halves of the 130-SMHR/9 together using the two draw latches (Item 3).

Install GPS and cables

8. Secure the PT06A12-8S connector of the 130-8015 cable for the GPS to the GPS connector on the
case enclosure.
9. Install the 130-GPS with a clear view of the sky.
10. Secure the appropriate cable from your PC control interface to your 130-SMHR/9 Serial port of the
recorder.
11. Secure the PT06A12-4S connector on your external power cable (130-8039) to the POWER connector
on the recorder.
