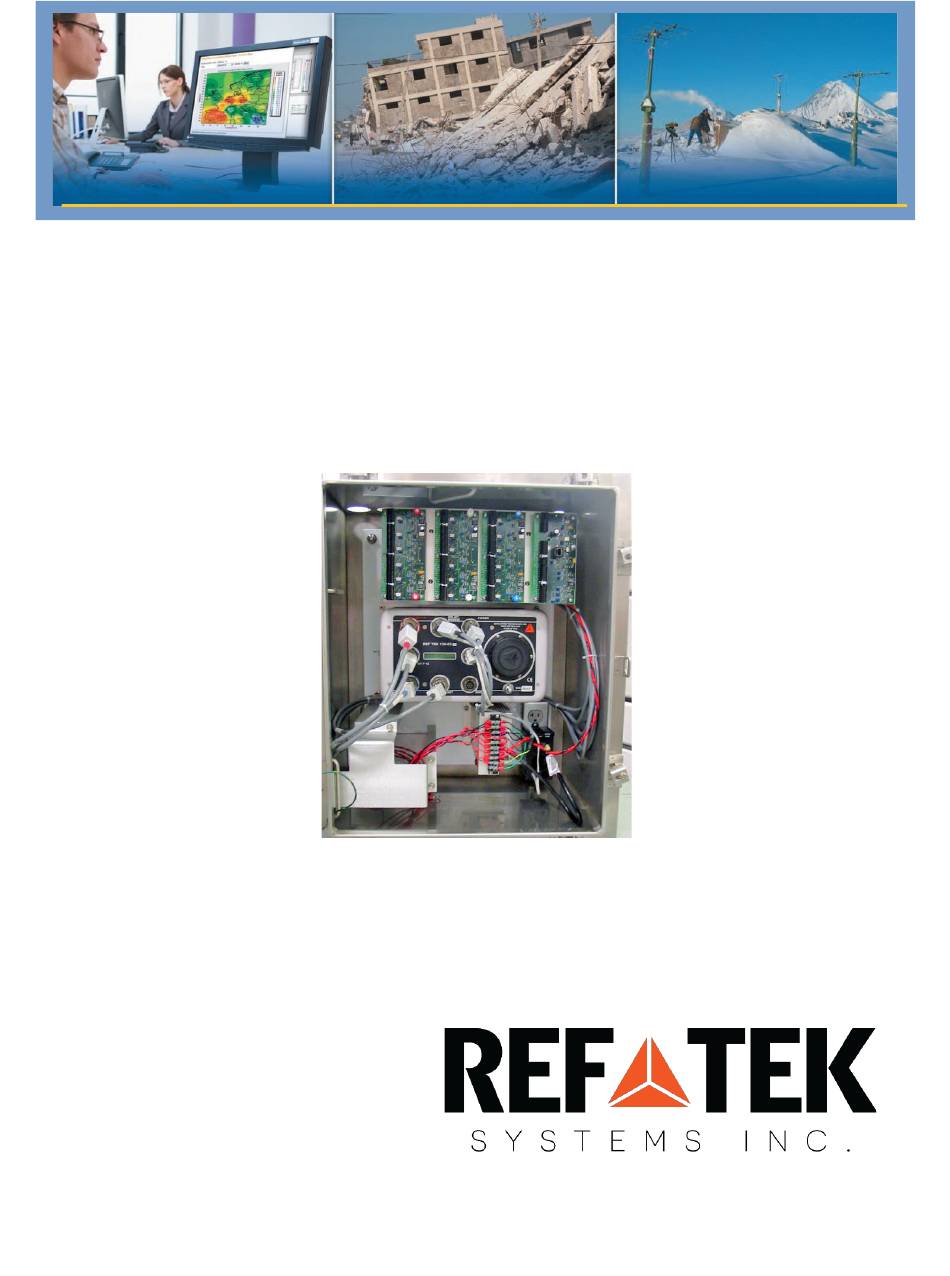

REF TEK 130 Multi-Channel Users Guide
This manual provides startup procedures for the 130-Multi-Channel Strong Motion Accelerograph
(MC12A)(97113-00)(MC18A)(97114-00) and its related products. Guidelines for initial communication with the
command line and modem are also provided.
Reftek Systems Inc.
75 MacDonald Avenue, Unit 1
Dartmouth, Nova Scotia
B3B 1T8
Support Phone: 1-902-444-0539
Email: support@reftek.com
www.reftek.com
96223-00-UG
Rev G
5/14/2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 130-MC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Reftek 130-MC

Summary of Contents for Reftek 130-MC

  • Page 1 This manual provides startup procedures for the 130-Multi-Channel Strong Motion Accelerograph (MC12A)(97113-00)(MC18A)(97114-00) and its related products. Guidelines for initial communication with the command line and modem are also provided. Reftek Systems Inc. 75 MacDonald Avenue, Unit 1 Dartmouth, Nova Scotia...
  • Page 2 Copyright© 2021 Reftek Systems Inc. All rights reserved. No part of this manual may be reproduced, copied or transmitted in any form outside the approved recipient’s organization without written permission from Reftek Systems Inc. Printed in CANADA Reftek Systems Inc.
  • Page 3 Kilo, KiloHertz; 103 = 1,000 M, MHz Mega, MegaHertz; 106 = 1,000,000 G, GHz Giga, GigaHertz; 109 = 1,000,000,000 Kb, KB Kilobit, KiloByte; 210 = 1,024 Mb, MB Megabit, MegaByte; 220 = 1,048,576 Gb, GB Gigabit, GigaByte; 230 = 1,073,741,824 Reftek Systems Inc.
  • Page 4 If you would like to know more about any of our REF TEK products and services, please visit our website at https://reftek.com/technical-support. On our support page, you can find information about submitting a support ticket, downloading sensor calibration sheets and exploring training options.

  • Page 5: Table Of Contents

    Warranty Statement ..........................19 Warranty/Non-Warranty Service ......................19 Static sensitive device protection ......................20 2 Operation with command line ............... 21 Overview ..............................21 Getting started with your 130-MC ......................21 2.2.1 Minimal Hardware Connections ......................22 2.2.2 Quick installation steps .......................... 22 DAS control overview ..........................
  • Page 6 Clear RAM on the 130-MC ........................31 2.7.2 Format a disk in the 130-MC ........................31 2.7.3 Check status of a media device on the 130-MC ..................31 Modem configuration ..........................32 2.8.1 Define a window for external modem power ..................32 2.8.2...
  • Page 7 RAM Backup Battery replacement ......................64 Disassembly of the 130-03 for service ...................... 65 Update firmware ............................66 7.6.1 Update the firmware of a 130-MC using a PC ..................66 7.6.2 Update the firmware if at the 130-MC ....................66 7.6.3 To transfer firmware to the 130-MC using RT130-SM ................
  • Page 8 Rev G REF TEK 130 Multi-Channel Users Guide 5/14/2021 96223-00-UG This Page Left Intentionally Blank viii Reftek Systems Inc.

  • Page 9: Mc18 Overview

    48 hours. The 130-MC is identical to the 130-SM except that it has a 12 or 18-channel 24-bit A-D converter that has a typical dynamic range of more than 114 dB and a different oscillator for internal time keeping.
  • Page 10 Rev G REF TEK 130 Multi-Channel Users Guide 5/14/2021 96223-00-UG RT588 -OR- RT588 RT599 Sensor 7-12 RT588 Sensor 13-18 Sensor 1-6 130-MC18A RT590 GPS Misc Interface 130-03/18 or 130-03/12 Power Supply Battery Location Triplite Isobar Reftek Systems Inc.

  • Page 11: Purpose Of The 130-Mc

    The REF TEK 130-MC combines the Third Generation Seismic Recorder (REF TEK 130-03). The 130- MC system is housed in a rugged and versatile enclosure. The 130-MC is a rugged, portable, and versatile data recorder. The modular design of their hardware and software allows you to...

  • Page 12: 130-Mc System Connections

    Rev G REF TEK 130 Multi-Channel Users Guide 5/14/2021 96223-00-UG 130-MC System Connections The connections and cables used in the 130-MC enclosure are as follows: Reftek Systems Inc.

  • Page 13: Power Terminals

    96223-00-UG Power Terminals Power is supplied to the 130-MC system through one 110 AC power connector. The hardware connection diagram on the previous page shows typical connections for the 130-MC. The following chart details individual connection to the terminal block (TB1) and charger.

  • Page 14: Gps 232 Terminals

    EARTH No Connect EARTH GPS 485 Terminals Also supported is input for GPS 485. This allows usage of a single GPS to come into one 130-MC and be output to multiple 130-MC units. GPS 485 RT590 Connector Cable J6 MC Pin...

  • Page 15: Mc-18 Interconnect

    EX 485 - Input/Output RS-485 GPS 485 OUT TX 485 + Output GPS_TX RS-485 TX 485 - Output GPS_TX RS-485 1 Hz 485 + Output 1Hz RS-485 1 Hz 485 - Output 1Hz RS-485 IRIGE Output EARTH No Connect Reftek Systems Inc.
  • Page 16 Rev G REF TEK 130 Multi-Channel Users Guide 5/14/2021 96223-00-UG Reftek Systems Inc.

  • Page 17: Rt590 Connections And Jumpers

    Rev G REF TEK 130 Multi-Channel Users Guide 5/14/2021 96223-00-UG RT590 Connections and Jumpers Reftek Systems Inc.

  • Page 18: Modem Connector

    96223-00-UG Modem connector The modem connector provides connections for the 130-MC internal modem. The modem connector is provided in order to connect the internal modem to the Plain-Old-Telephone- Service. The 130-8279 telephone line cable from the 130-03 connector connects to the Tripplite Isobar connector.

  • Page 19: 130-Mc Net Connector

    CAUTION: A 130-MC is shipped pre-configured with a default IP address. Be sure to change this address before connecting the 130-MC to an Ethernet port. Any IP addresses on one of the same subnets, as the 130-MC unit, may connect using FTP and/or the command socket.

  • Page 20: Relay Rt590 Connector

    96223-00-UG Relay RT590 Connector The relay terminals on the 130-MC provides three relay closures for certain software set able alarm conditions. Both Normally Open and Normally Closed contacts are provided on the relay connector for each of the three relays. A hardware jumper is provided to change the relay contacts from Normally De-energized (default) to Normally Energized.

  • Page 21: Channels 1-6 Rt588 Connector

    96223-00-UG Channels 1-6 RT588 Connector Channels 1-6 are on first of the RT588 boards of the 130-MC and provide external sensors to be connected. Refer to the Sensor display in the SMCC Users Guide or see the SL, ST, and SN commands in the Command Line Reference Guide for more information on how to configure the sensors.

  • Page 22: Connection Diagram

    Rev G REF TEK 130 Multi-Channel Users Guide 5/14/2021 96223-00-UG Connection Diagram Reftek Systems Inc.

  • Page 23: Channels 7-12 Rt588 Connector

    96223-00-UG Channels 7-12 RT588 Connector The channel 7-12 connector on the 130-MC provides inputs for an external sensor. The internal A/D card must be re-configured in order to work with an optional external sensor. It is optional to add another A/D card to use six more channels.

  • Page 24: Channels 13-18 Rt588 Connector

    REF TEK 130 Multi-Channel Users Guide 5/14/2021 96223-00-UG Channels 13-18 RT588 Connector The channel 13-18 connector on the 130-MC provides inputs for an external sensor. The internal A/D card must be re-configured in order to work with an optional external sensor. RT588 MC Pin...

  • Page 25: Hardware Modularity

    Rev G REF TEK 130 Multi-Channel Users Guide 5/14/2021 96223-00-UG Hardware Modularity 130-MC List Four boards form the primary REF TEK 130-MC connection system. Board Description Purpose Sensor Interface Board 130-03 channel 1-6 connection (RT588-B01) Channel 1-6 Lightning Protection Sensor Interface Board...

  • Page 26: List Of Other Hardware

    ONLY then there is no effect, otherwise RAM will fill and acquisition will stop. For further clarification see the explanation in the section “Ethernet Port”. Question: What happens if the Compact Flash card is pulled from the 130-MC when the LED is RED.

  • Page 27: Warranty Statement

    Question: Does the IBM Microdrive™ fit in the 130-MC Flash assembly? The IBM Microdrive™ does fit into the 130-MC but is unusable because the micro-drive is a rotating media and injects noise into the system that will affect the internal sensor (i.e. Every time the Microdrive™ spins up, the rotational torque is transmitted through the case and measured by the sensor).

  • Page 28: Static Sensitive Device Protection

    Rev G REF TEK 130 Multi-Channel Users Guide 5/14/2021 96223-00-UG Contact REF TEK, by a means that is listed below, to obtain an RMA number. Reftek Systems Inc 75 MacDonald Avenue, Unit 1 Dartmouth, Nova Scotia Canada Voice: 1-902-444-7650 EMAIL: support@reftek.com 1.

  • Page 29: Operation With Command Line

    The SMCC command and control program is a multi-platform REF TEK program for command-line command and control of the 130-MC over a TCP/IP (LAN/WAN) connection through RTPD or through a serial connection. SMCC is a client-server application that serves up HTML pages to web browser clients.

  • Page 30: Minimal Hardware Connections

    3. An electrician will need to secure the connector on your external power cable to the POWER connections on the terminal block (TB1) in the 130-MC recorder (See “Power Terminals”). 4. Connect one end of the GPS cable to the GPS.

  • Page 31: Das Control Overview

    In most cases, upgrade of the 130-MC firmware in your 130-MC requires presence of new code on an ATA Compact Flash device. To download new code, see the firmware section the beginning of this manual. Contact REF TEK to determine the applicability and advantages of such an upgrade.

  • Page 32: Example Configuration

    REF TEK 130 Command Line - Theory of Operations manual. Example configuration The following steps illustrate how to write an example of a parameter file that sets up a 130-MC with a vote trigger: 1. Create the file in Notepad or a similar editor.

  • Page 33: Power Considerations

    The 130-MC does not require hardware adjustments for normal operations. You may use a 130-MC as a stand-alone system, or you may use a network of many 130-MC units deployed over a survey site. During field operations, the 130-MC can store data in its own internal Compact Flash™...

  • Page 34: Port Settings And Modem Communications

    In general, perform the following to ensure a sufficient power supply: 1. Use the specification data and add the maximum current draw for the 130-MC and each peripheral that uses the same power supply to obtain the maximum total current they will draw at any given time then add at least 25%.

  • Page 35: 130-03 Command Port (Serial)

    5/14/2021 96223-00-UG 130-03 Command Port (Serial) Each 130-MC unit provides two bidirectional, asynchronous serial ports. The first of these ports is accessible at the Serial connector on the 130-03 unit's faceplate. This port has the following primary functions and characteristics:...

  • Page 36: Toss Parameter

    Once the Ethernet connection is re-established, the data in RAM will be sent out the Ethernet port and acquisition will re-start automatically. CAUTION:. There will be only a loss of data while the acquisition state is off. Reftek Systems Inc.

  • Page 37: Internal Modem Port

    This port provides for connection to an external modem in lieu of the internal modem. Configuration By default, the 130-MC software sets it to 57,600 baud, no parity, 8 data bits, and 1 stop bit. The baud rate can be user configured.

  • Page 38: General Gps Operations

    6. The oscillator is voltage-controlled and an adjustment is made to the controlling D/A value to zero out the oscillator drift, and also to correct for oscillator phase error. At initial power-up the 130-MC will leave the GPS on for approximately 15 minutes to do continuous phase-locking and oscillator adjustment.

  • Page 39: Formatting Media

    5/14/2021 96223-00-UG Formatting media The Media Format (MF) command can be used to clear the 130-MC data RAM or to format a disk installed in the 130-MC. Clear RAM on the 130-MC 1. To clear the 130-MC data enter the following:...

  • Page 40: Modem Configuration

    (regardless of whether it is an internal or external modem). If the internal modem is used, or no modem is attached, the init string is not sent. 1. Enter the amount of time the 130-MC waits, after turning on external power, before it tries to talk to the modem:...

  • Page 41: Modem Setup

    By doing this the external port can be used in a direct serial mode (presuming the internal modem is not installed). 1. To define the 130-MC modem initialization parameters enter the following: Note: This is the Factory Default setting and is recommended when using the internal 130-MC modem.

  • Page 42: Modem Dial Out Strings

    130-MC to call if the callout to the first number is not answered. Note: The 130-MC will first call out using the first dial string. Only if there is no answer at the first dial-string, the 130-MC will call out using the second dial string.

  • Page 43: 130-Mc Settings With Smcc

    Port settings and modem communications o SMCC modem displays DAS Control with SMCC Overview Communication with the 130-MC occurs through a PC and the SMCC program or emulation program with command line. For further explanation of the SMCC program see the SMCC Users Guide.
  • Page 44 5/14/2021 96223-00-UG The 130-MC collects data based on the series of parameters that you select and implement. All 130-MC units have multiple datastream capability, allowing users a vast array of possible parameter combinations. You may set the following parameters for each datastream:...

  • Page 45: Port Settings And Modem Communications

    The 130-MC does not require hardware adjustments for normal operations. You may use a 130-MC as a stand-alone system, or you may use a network of many 130-MC units deployed over a survey site. During field operations, the 130-MC can store data in its own internal Compact Flash™...

  • Page 46: 130-03 Command Port (Serial)

    5/14/2021 96223-00-UG 130-03 Command Port (Serial) Each 130-MC unit provides two bidirectional, asynchronous serial ports. The first of these ports is accessible at the Serial connector on the 130-03 unit's faceplate. This port has the following primary functions and characteristics:...

  • Page 47: Toss Parameter

    This port provides for connecting the optional internal modem to a phone line. Configuration By default, the 130-MC software talks to the internal modem at 115,200 baud, no parity, 8 data bits, and 1 stop bit. Note: SMCC can be used to setup a Modem Port. The settings can be changed using the provided display.
  • Page 48 5/14/2021 96223-00-UG Configuration By default, the 130-MC software sets it to 57,600 baud, no parity, 8 data bits, and 1 stop bit. The baud rate can be user configured. Hardware Location This port is accessible at the NET connector on the faceplate.

  • Page 49: Internal Modem Support

    4 Internal Modem support Internal SLM modem and the RT580 This section explains using the SLM modem module with the REF TEK 130-MC. Modem A user should be familiar with whatever REF TEK host system is in current use. Documents for other REF TEK products are available on request.

  • Page 50: Operating The 130-Mc With The Slm Modem

    5/14/2021 96223-00-UG Operating the 130-MC with the SLM Modem This section provides general procedures for setting up and operating the REF TEK 130-MC with a SLM modem module SLM Modem module The SLM2456 modem module is used in the 130-Modem and as the internal modem for the 130- MC.

  • Page 51: Configure The Modem Initialization String

    (presuming the internal modem is not installed). 1. Define the 130-MC modem initialization parameters by entering the Factory Default setting. 2. Enter the 130-MC modem Hang-up String. Modem Dial Out strings Upon callout the Dial #1 number is used first and if it fails then the Dial #2 number is tried.

  • Page 52: Delay Time/Speed

    If an external modem is used, and the speed is changed, the user needs to hang up to force the “power” window to be shut-down and re-established so that the init string is resent. Select the Apply button to send the modem parameters. Reftek Systems Inc.

  • Page 53: 130-03 Features

    This section describes features and maintenance requirements for the REF TEK 130-03 which is part of the 130-MC system. The 130-MC system meets the USGS Advanced National Seismic System (ANSS) specifications for strong motion reference stations for deployment in urban areas.

  • Page 54: Purpose Of The 130-Mc System

    The REF TEK 130-MC combines the Third Generation Broadband Seismic Recorder (REF TEK 130- 03/12 or 130-03/18) and is housed in an instrument enclosure. The 130-MC is a rugged and versatile data recorder. The modular design of their hardware and software allows you to...
  • Page 55 Rev G REF TEK 130 Multi-Channel Users Guide 5/14/2021 96223-00-UG Reftek Systems Inc.

  • Page 56: Power Connector

    Input RS232 ±12 Volts DSR B Input RS232 ±12 Volts DCD B Input RS232 ±12 Volts DTR B Output RS232 ±5 Volts No Connect DGND Output2 + 5 Volts Volts=Controlled by software Output = Protected by self-resetting fuse Reftek Systems Inc.

  • Page 57: Gps Connector

    The modem connector provides connections for the 130-03 internal modem. The modem connections are a part of the Relay connector. Recorder Connector Connector Recorder Pin Desc Electrical Desc Modem PT0-7A-14-15P Telephone Line Cable 130-8279 RING Telephone Line Volts=Controlled by software and protected by a self resetting fuse Reftek Systems Inc.

  • Page 58: 130-03 Net Connector

    Ethernet = Controlled by software and protected by self resetting fuse Volts = Tracks main input voltage VDC = Alternate main power input Tristate = Controlled by software Note: * RS232 In/Out is disabled when the optional internal modem is installed. Reftek Systems Inc.

  • Page 59: Relay Connector

    Modem No Connection No Connection Note: There is an optional jumper (JP3 located near the relay connector) that can be installed on the RT580 Lid board in order to set the three provided relays as normally energized Reftek Systems Inc.

  • Page 60: Channels 1-6 Connector

    0-5 Volts No connect No connect No connect Note: 1 = Tracks main input voltage Note: 2 = Protected by self-resetting fuse Note: 3 = Output on/off controlled by software Note: 4 = provided by RT580 board Reftek Systems Inc.

  • Page 61: Channels 7-12 Connector

    0-5 Volts No connect No connect No connect Note: 1 = Tracks main input voltage Note: 2 = Protected by self-resetting fuse Note: 3 = Output on/off controlled by software Note: 4 = provided by RT580 board Reftek Systems Inc.

  • Page 62: Channels 13-18 Connector

    0-5 Volts No connect No connect No connect Note: 1 = Tracks main input voltage Note: 2 = Protected by self-resetting fuse Note: 3 = Output on/off controlled by software Note: 4 = provided by RT580 board Reftek Systems Inc.

  • Page 63: Hardware Modularity

    REF TEK 130 Multi-Channel Users Guide 5/14/2021 96223-00-UG Hardware Modularity 130-03 List of Hardware Five boards form the primary REF TEK 130-MC/12. An additional RT581-B03 can be added to make the 130-03/12 an 18 -channel unit (130-03/18). Board Description Purpose...

  • Page 64: 130-03 Boards

    Rev G REF TEK 130 Multi-Channel Users Guide 5/14/2021 96223-00-UG 130-03 Boards RT526 Flash Board RT580 Lid Board RT608-B06 A/D (1-6) RT608-B07 A/D (7-12) RT608-B08 A/D (13-18) RT506 CPU Board 130-8263 Base 130-9279 Gasket Reftek Systems Inc.

  • Page 65: 130-03 Assembly

    Assembly of the 130-03 130-03 REF TEK IP67 Test This section provides general maintenance procedures that increases the effectiveness and useful life of your 130-MC. Disassembly of the 130-03 for service To disassemble a 130-03 use the following figure and follow these steps:...

  • Page 66: Assembly Of The 130-03

    4. Check that the seal strip is set inside the enclosure lid. Note: If necessary, apply petroleum jelly to the Seal Strip to better seal the 130-MC. 5. Place the completed flipped enclosure lid assembly (Item 2) onto the base plate in the 130-03 unit making sure the seal strip sits in the groove of the base plate as well.

  • Page 67: Periodic Maintenance Operations

    REF TEK 130 Multi-Channel Users Guide 5/14/2021 96223-00-UG 7 Periodic Maintenance Operations Introduction The next two sections provide maintenance information for the 130-MC on the following topics: Topics: o Replacing the Compact Flash™ o RAM Backup Battery replacement o Connector Assembly & Maintenance...

  • Page 68: Replacing The Compact Flash

    UNTIL THE LED CHANGES TO GREEN The following conditions could result if a drive is replaced while the LED is Red: CAUTION: For optimal performance in a REF TEK 130-MC recorder Compact Flash disks should ALWAYS be formatted BY THE 130-MC.
  • Page 69 When using the Compact Flash™ with a Compact Flash™ Reader: 1. Grasp only the edges while inserting the drive into the Compact Flash Reader. 2. Grasp only by edges or tab to install or remove the drive. Reftek Systems Inc.

  • Page 70: Connector Assembly & Maintenance

    Upon order, REF TEK will supply any or all of our standard connector cables Also, REF TEK will construct any custom cables your system needs. For some of the more standard connector/cable drawings of commonly used assemblies see 130-MC cables on page 69. When making the connections follow industry standard practices in dressing the cable end, soldering the connections and applying shrink tubing.
  • Page 71 Rev G REF TEK 130 Multi-Channel Users Guide 5/14/2021 96223-00-UG 5. Assemble new connectors correctly as shown below. Reftek Systems Inc.

  • Page 72: Ram Backup Battery Replacement

    2. Disconnect the connector for the battery from the pins located next to the fin clip inside the well. 3. Gently remove the battery assembly from the fin clip inside. 4. Insert the new battery assembly into the fin clip inside the well disk enclosure. Reftek Systems Inc.

  • Page 73: Disassembly Of The 130-03 For Service

    3. Flip the draw latches on the 130-03. 4. Remove the case enclosure with boards from the bottom lid. 5. Remove the enclosure from the 130-MC cabinet and flip the 130-03 DAS upside-down on the top of the top case (Item 1).

  • Page 74: Update Firmware

    Updating firmware in a 130-MC requires the presence of a firmware file on a Compact Flash device. 1. On power-up, the 130-MC checks the Compact Flash for the presence of a ‘main.s3’ firmware file in the root directory. 2. If the ‘main.s3’ file is present on the Compact Flash, the 130-MC: 1.

  • Page 75: Reset The 130-Mc Using Rt130-Sm

    2. Connect to the desired 130-MC. 3. Switch to the Station Details -> File Maint menu to copy the file to the 130-MC. 4. Refresh the directory on the Local directory where the firmware is located with the Refresh DIR button.

  • Page 76: Sample 130-03 Lcd Displays

    Init = Initializing the modem Idle = Waiting Dialing = Dialing out Connected Requested State Actual State Acquisition Status: Stream Indicator: C = Continuous V = Vote Event Count StreamIndicator X = External else trigger type ---- Inactive Reftek Systems Inc.

  • Page 77: 130-Mc Internal Cable Drawings

    Rev G REF TEK 130 Multi-Channel Users Guide 5/14/2021 96223-00-UG 8 130-MC Internal cable drawings 130-03 cable list Refer to the table below for the internal cable assemblies for the 130-03 family Description Connection Internal Disk Interconnect cable CPU to Compact Flash Board...
  • Page 78 Rev G REF TEK 130 Multi-Channel Users Guide 5/14/2021 96223-00-UG This Page Left Intentionally Blank Reftek Systems Inc.

  • Page 79: Index

    130-03 ................55 130-03 function ............18 list for MC connection ..........17 130-03 connector ............50 connection ..............11 cables 130-MC ................. 69 Internal ................. 69 channel port 130-03 13-18 connector ..........54 Ethernet ............... 27 130-03 1-6 connector ........... 52 external modem NET ...........
  • Page 80 Rev G REF TEK 130 Multi-Channel Users Guide 5/14/2021 96223-00-UG use MC with ..............21 parameter .............. 28, 39 Static Sensitivity ..............20 trigger types ..............25 warranty RMA ................19 toss Reftek Systems Inc.
  • Page 81 Rev G REF TEK 130 Multi-Channel Users Guide 5/14/2021 96223-00-UG This Page Left Intentionally Blank Reftek Systems Inc.
