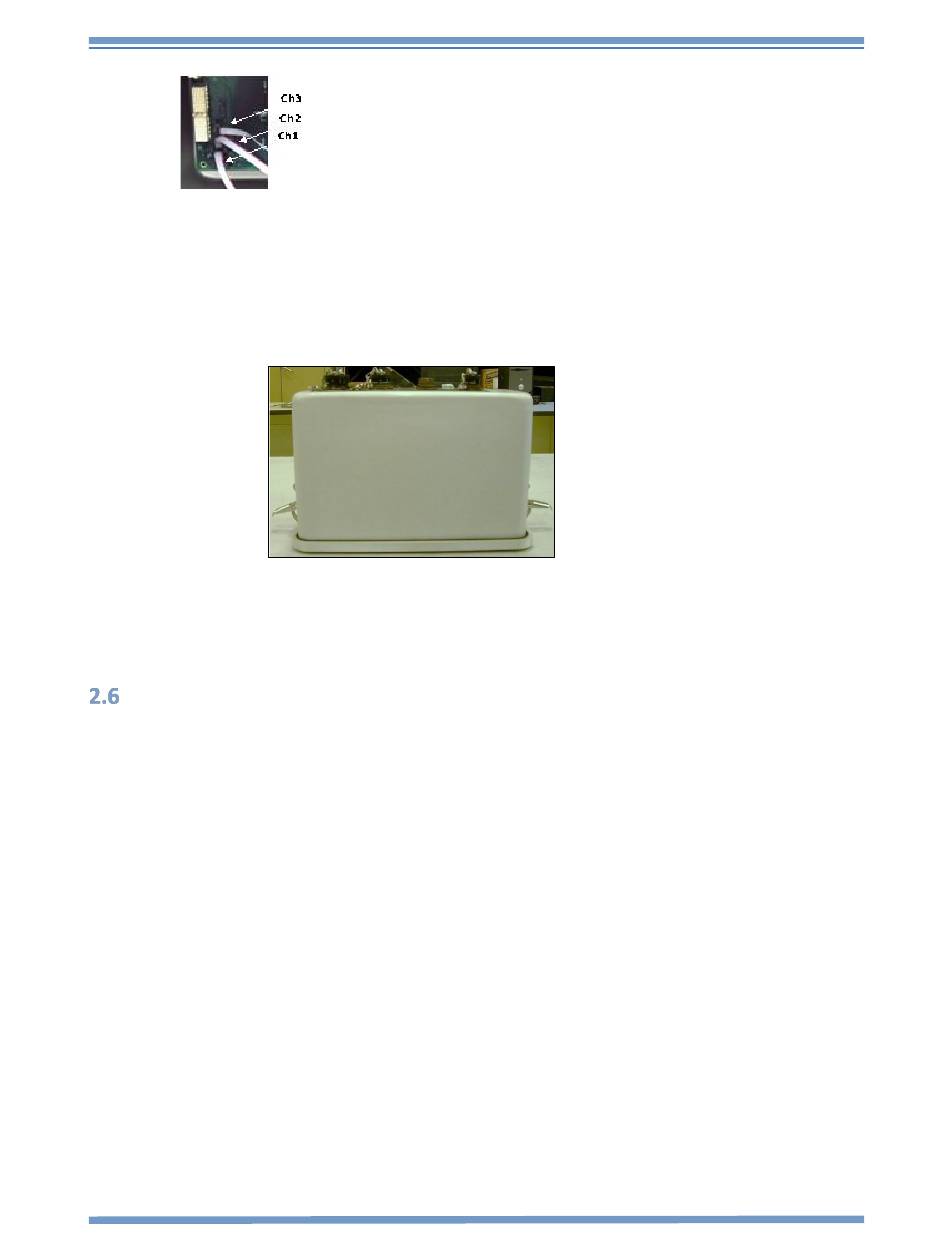

2. Check that the gasket is still attached to the bottom half of the base.
3. Place the flipped enclosure lid assembly onto the base plate making sure the lid sits in the groove of
the base plate and gasket as well.
Note: Check the orientation of the enclosure top and the base plate before closing the two draw latches. Check the
orientation of the direction arrows on the label match the orientation of the direction arrows on the base plate
label (The sensor switch will be aligned to the plastic standoff).
4. Spread the latches so the hooks do not interfere with the base.
5. Push firmly on the top of the enclosure lid to ensure a complete seal.
6. Hook latches into the slot beneath the base plate.
7. Snap the two halves of the 130-SMHR/9 together using the two draw latches.
8. Seal and test the 130-SMHR/9.

Port settings and modem communications

A 130-SMHR/9 provides several communications ports. This section describes the available
communications ports, and other considerations regarding the use of modems. The ports are:
•
Command port (Serial)
•
NET port (Ethernet)
•
Internal modem port (for use with the optional internal modem)
•
Optional external modem port (in lieu if internal modem)
To set up the configurations of the 130-SMHR/9 unit's ports, follow the instructions in the 130
Command Line Reference manual.
Note: A 130-SMHR/9 is shipped pre-configured with a default IP address. Be sure to change this address before
connecting the 130-SMHR/9 to an Ethernet port.
Note: The 130-SMHR/9 uses a 10BaseT Ethernet chip. The 130-SMHR/9 Ethernet port may not work when
connected to all 100BaseT and some 10/100BaseT Ethernet hubs.
