Rev A

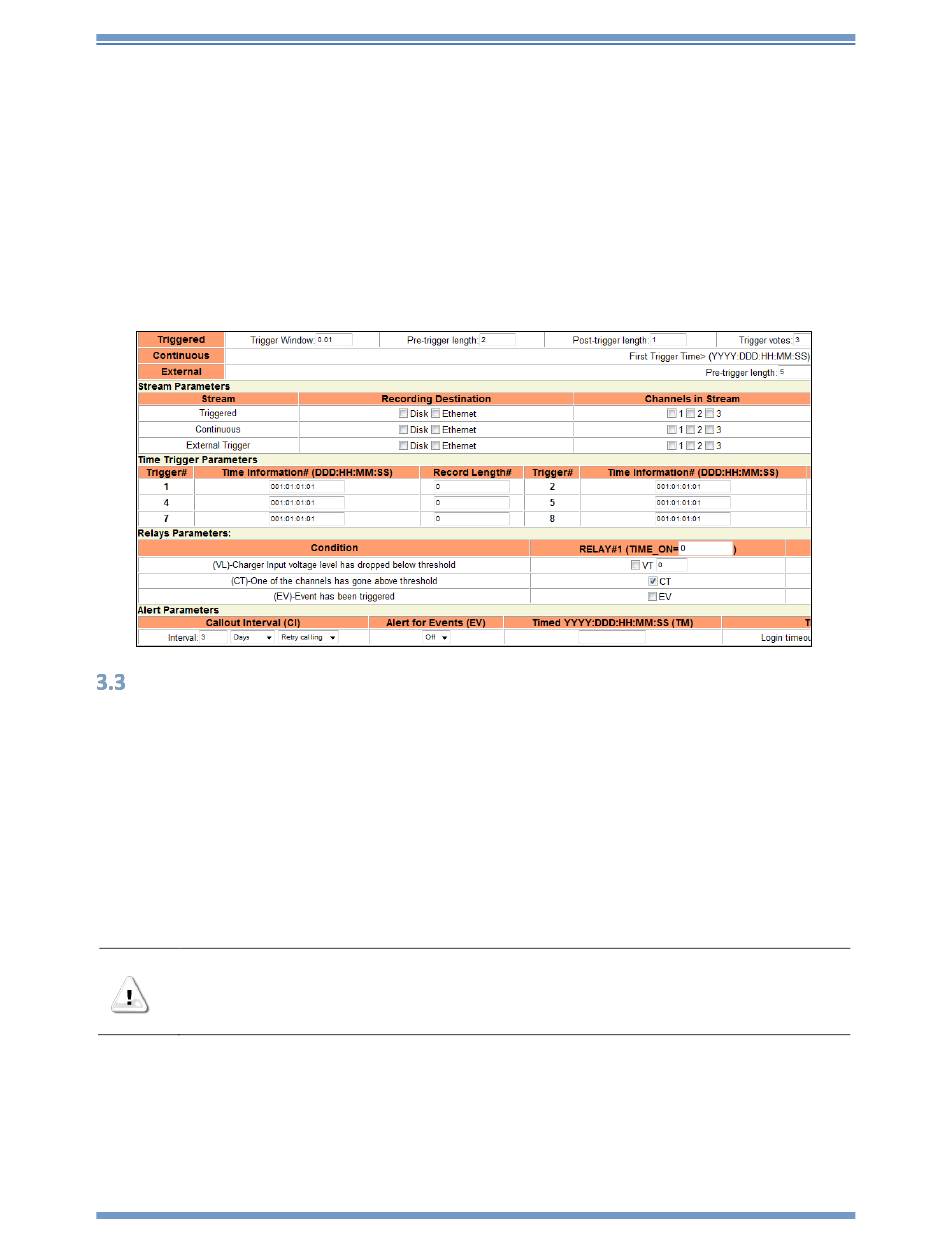

Detailed explanations and methods for using all 130-SMHR/9 parameters, including data
streams and triggers, are provided in subsequent sections in the SMCC Users Guide manual and
130 Command Line Reference.
REF TEK pre-sets and tests the hardware of each 130-SMHR/9 before you receive the unit to
ensure that it performs as specified. The 130-SMHR/9 does not require hardware adjustments
for normal operations. You may use a 130-SMHR/9 as a stand-alone system, or you may use a
network of many 130-SMHR/9 units deployed over a survey site. During field operations, the
130-SMHR/9 can store data in its own internal Compact Flash™ card(s). The 130-SMHR/9 has
two ports (Ethernet and Telemetry) that allow connection to networks locally or remotely (by
radio, telephone, or satellite relays). Some networks include both local and remote
interconnections.

Port settings and modem communications

A 130-SMHR/9 provides several communications ports. This section describes the available
communications ports, and other considerations regarding the use of modems. The ports are:
•
Command port (Serial)
•
NET port (Ethernet)
•
Internal modem port (for use with the optional internal modem)
•
Optional external modem port (in lieu if internal modem)
To set up the configurations of the 130-SMHR/9 unit's ports, follow the instructions in the
SMCC Users Guide.
CAUTION:. A 130-SMHR/9 is shipped pre-configured with a default IP address. Be sure to
change this address before connecting the 130-SMHR/9 to an Ethernet port.
The 130-SMHR/9 uses a 10BaseT Ethernet chip. The 130-SMHR/9 Ethernet port may not
work when connected to all 100BaseT and some 10/100BaseT Ethernet hubs.
