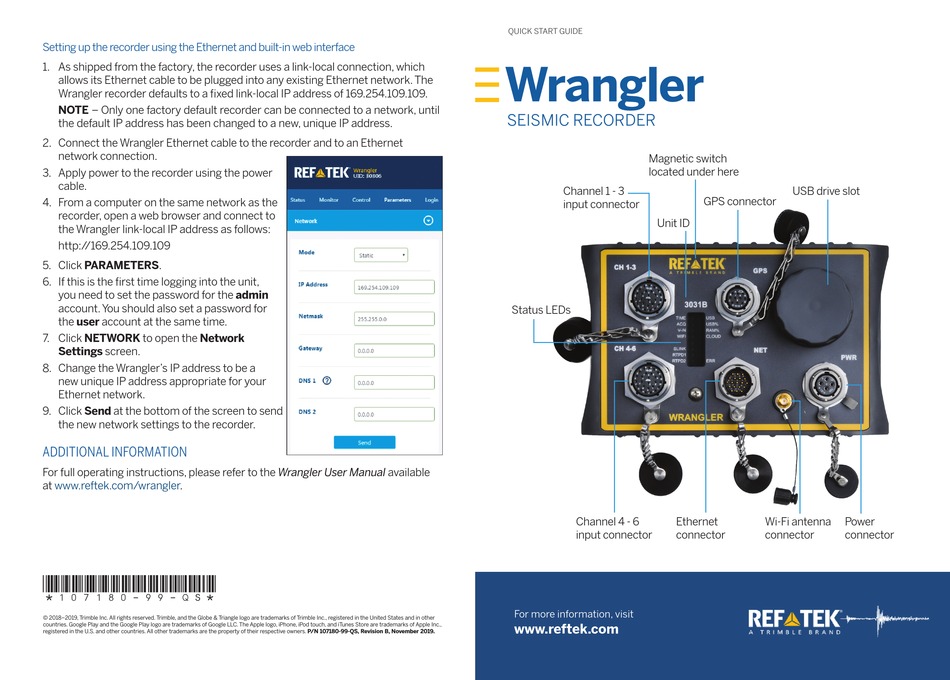

Reftek Wrangler Quick Start Manual

Setting up the recorder using the Ethernet and built-in web interface
1. As shipped from the factory, the recorder uses a link-local connection, which
allows its Ethernet cable to be plugged into any existing Ethernet network. The
Wrangler recorder defaults to a fixed link-local IP address of 169.254.109.109.
NOTE – Only one factory default recorder can be connected to a network, until
the default IP address has been changed to a new, unique IP address.
2. Connect the Wrangler Ethernet cable to the recorder and to an Ethernet
network connection.
3. Apply power to the recorder using the power
cable.
4. From a computer on the same network as the
recorder, open a web browser and connect to
the Wrangler link-local IP address as follows:
http:/ /169.254.109.109
5. Click PARAMETERS.
6. If this is the first time logging into the unit,
you need to set the password for the admin
account. You should also set a password for
the user account at the same time.
7. Click NETWORK to open the Network
Settings screen.
8. Change the Wrangler's IP address to be a
new unique IP address appropriate for your
Ethernet network.
9. Click Send at the bottom of the screen to send
the new network settings to the recorder.
ADDITIONAL INFORMATION
For full operating instructions, please refer to the Wrangler User Manual available
at www.reftek.com/wrangler.
*107180-99-QS*
© 2018–2019, Trimble Inc. All rights reserved. Trimble, and the Globe & Triangle logo are trademarks of Trimble Inc., registered in the United States and in other
countries. Google Play and the Google Play logo are trademarks of Google LLC. The Apple logo, iPhone, iPod touch, and iTunes Store are trademarks of Apple Inc.,
registered in the U.S. and other countries. All other trademarks are the property of their respective owners. P/N 107180-99-QS, Revision B, November 2019.
QUICK START GUIDE
Wrangler
SEISMIC RECORDER
Magnetic switch
located under here
Channel 1 - 3
input connector
Unit ID
Status LEDs
Channel 4 - 6 Ethernet
input connector connector
For more information, visit
www.reftek.com
USB drive slot
GPS connector
Wi-Fi antenna Power
connector connector
