Note: If new replacement boards are added remember the SMI board is always last.

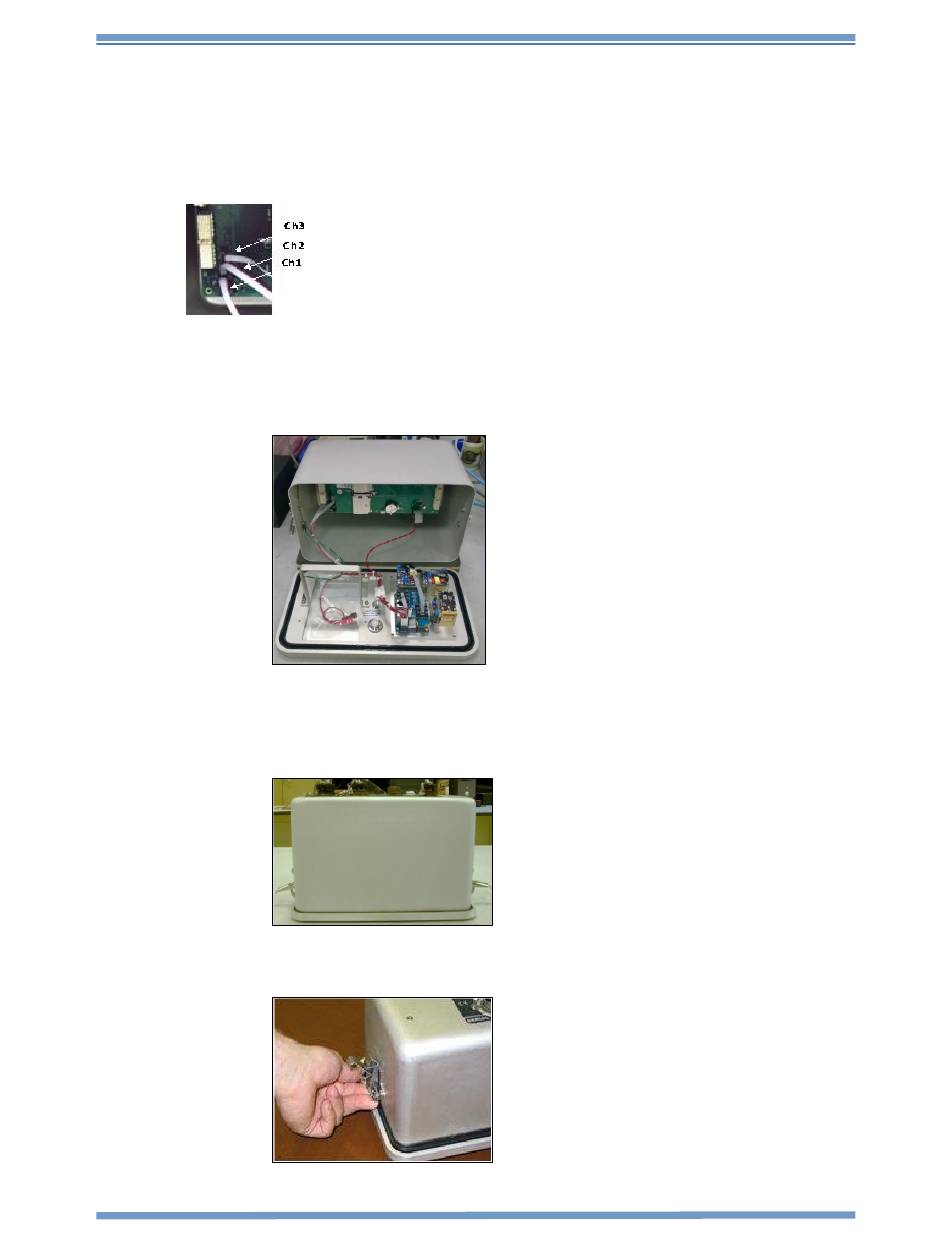

2. Insert the six removed #6-32 screws with the lock washers.
3. Tighten the board stack screws with a screwdriver.
4. Connect the loose end of the ribbon cables by locating the first pin on the connector and applying
pressure until the ears of the connector close.
5. Re-attach the Triaxial accelerometer cables to the RT570.
6. Check that the gasket (Item 8) is still attached to the bottom half of the enclosure lid (Item 1).
7. Place the completed flipped enclosure lid assembly (Item 1) onto the base plate (Item 13) making
sure the lid sits in the groove of the base plate and gasket as well.
Note: Check the orientation of the enclosure top and the base plate before closing the two draw latches. Check the
orientation of the direction arrows on the label match the orientation of the direction arrows on the base plate
label (The sensor switch will be aligned to the plastic standoff).
8. Spread the latches so the hooks do not interfere with the base.
9. Push firmly on the top of the enclosure lid to ensure a complete seal.
10. Hook latches into the slot beneath the base plate
