Rev A

5 130-SMHR/9 Assembly

Introduction

This section provides assembly and disassembly information for the 130-SMHR/9. This section
also provides general maintenance procedures that increase the effectiveness and useful life of
your 130-SMHR/9.

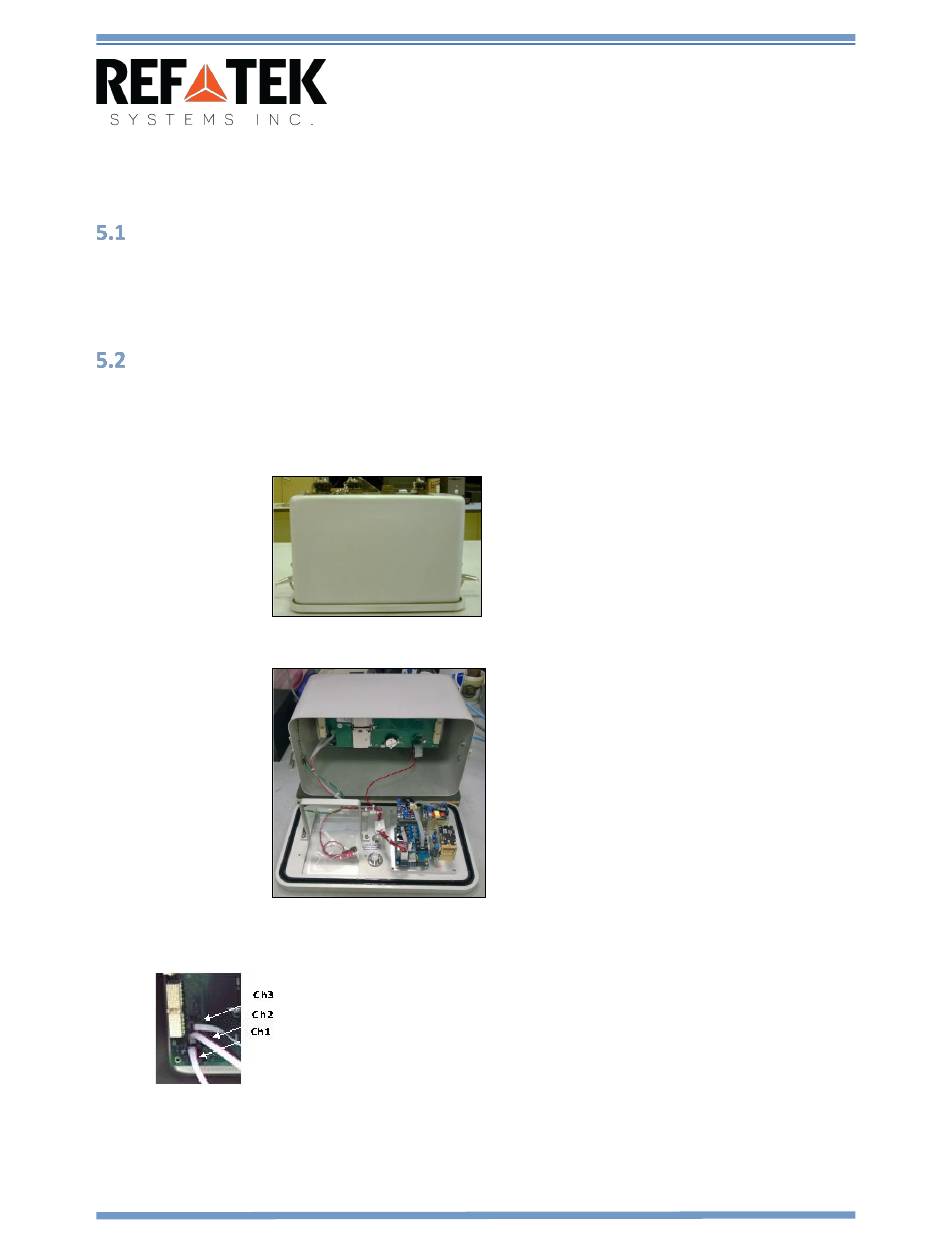

Disassembly of the 130-SMHR/9 for service

To disassemble a 130-SMHR/9:
1. Power off the 130-SMHR/9.
2. Flip the draw latches (Item 3).
3. Remove the enclosure lid (Item 1) and set it gently on the side of the enclosure lid (not upside-down)
to remove cables and avoid contamination of the seal.
Note: Be careful not to break the cables attached to the accelerometer and Compact/Flash board. The order of
board removal is not important until the 130-SMHR/9 needs to be assembled.
4. Disconnect the cables from the RT570 SMI board.
Note: The accelerometer connection labels are on each cable and match the numbers on the RT570 board. Make
sure the gasket (Item 8) stays in the enclosure lid of the 130-SMHR/9 assembly.
5. If boards need to be removed place the unit on the connections that have the dust caps installed.
6. Loosen and remove the six #6-32x2 screws from the stack.
Reftek Systems Inc.
REF TEK 130-SMHR/9 Users Guide
98060-00-UG
5/6/2021
45
