The 130-SMHR/9 collects data based on the series of parameters that you select and
implement. All 130-SMHR units have multiple datastream capability, allowing users a vast array
of possible parameter combinations. You may set the following parameters for each
datastream:
•
Which input channel or channels to include
•
Sample rate
•
Data format (recording resolution)
•
Trigger type
The possible values for these parameters, as well as the possible combinations of parameters,
are different for the 130-SMHR/9 with different hardware configurations, different versions of
control firmware, or both. For a comprehensive explanation of your 130-SMHR/9 specific
capabilities and limitations, refer to the REF TEK 130 Command Line - Theory of Operations and
Command Reference manuals.

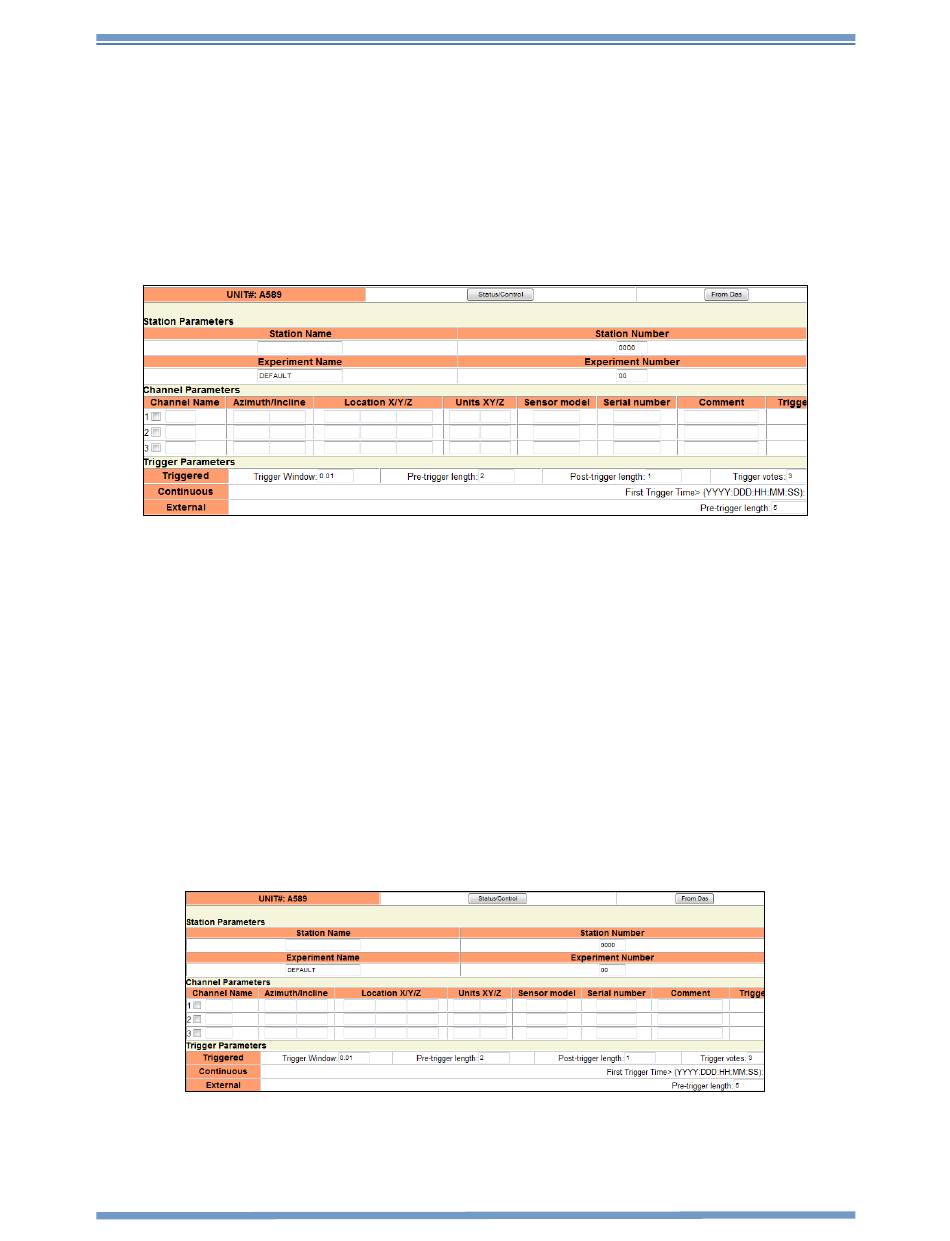

The trigger type selected for a datastream defines the particular mechanism that determines
when the 130-SMHR/9 collects data. The trigger types available on the 130-SMHR/9 are as
follows:
•
Continuous trigger
•
Vote trigger
•
External trigger
Each trigger has its own set of parameters that determines the exact conditions under which
the 130-SMHR/9 records data.
