Hardware layout and configuration

The STM3210E-EVAL evaluation board is designed around the STM32F103ZGT6
microcontroller in a 144-pin TQFP package. The hardware block diagram
the connections between the STM32F103ZGT6 and peripherals (LCD, SPI Flash, USART,
IrDA, USB, audio, CAN bus, smartcard, MicroSD Card, NOR Flash, NAND Flash, SRAM,
temperature sensor, audio DAC and motor control) and
features on the actual evaluation board.

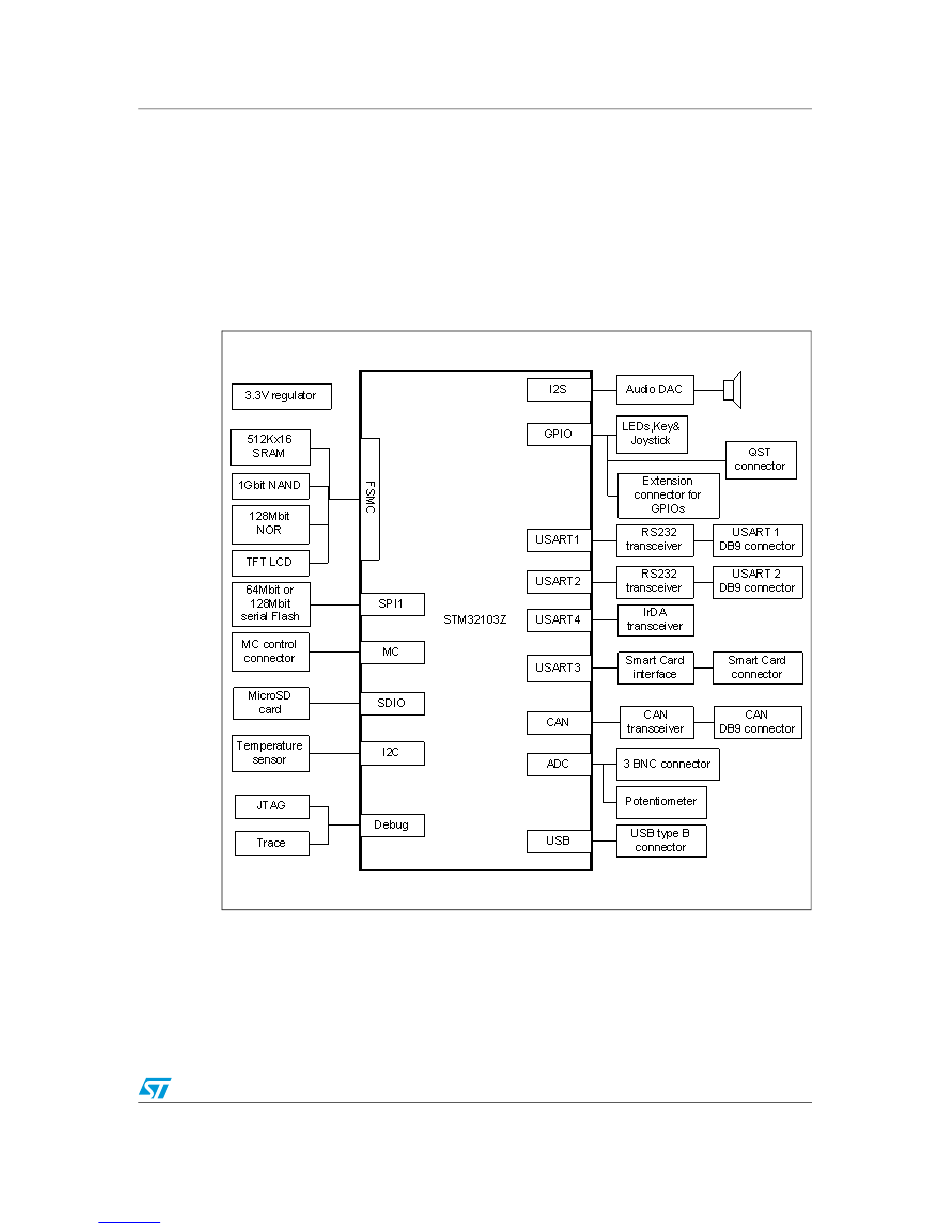

Figure 2. Hardware block diagram
Hardware layout and configuration
Figure 3
Doc ID 14220 Rev 5
Figure 2 illustrates
helps you to locate these
