Connectors
3.15
28/48
Downloaded from
Elcodis.com
electronic components distributor
Smartcard connector CN18

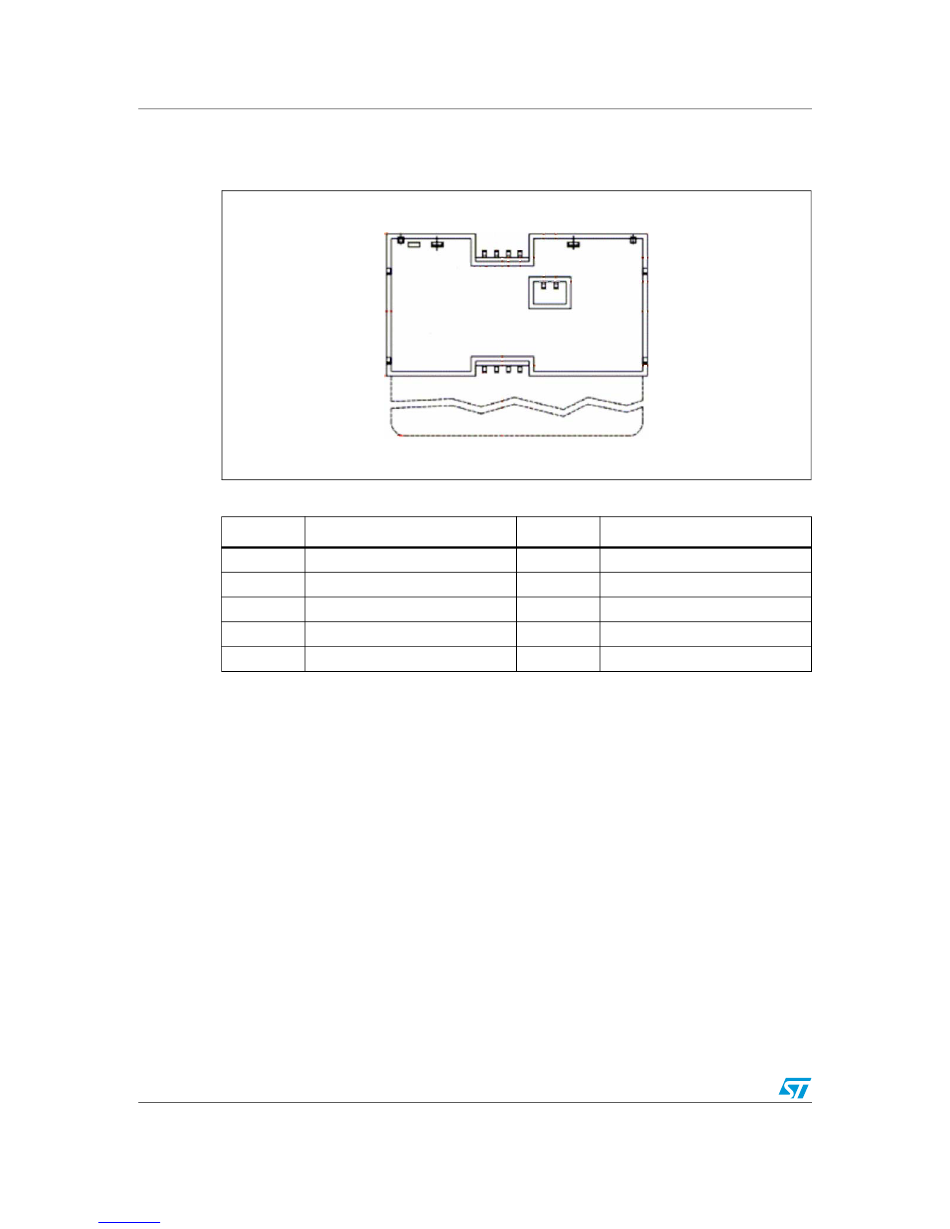

Figure 15. Smartcard connector CN18 (front view)
Table 28.
Smartcard connector CN18
Pin number
Description
1
VCC
2
RST
3
CLK
4
NC
17
Detection pin of card presence
17 18
5 6 7 8
Pin number
5
6
7
8
18
Doc ID 14220 Rev 5
UM0488
Description
GND
NC
I/O
NC
Detection pin of card presence
