Hardware layout and configuration

6 Hardware layout and configuration
The STM32H7 Nucleo-144 board is designed around the STM32H7 Series microcontrollers
in a 144-pin LQFP package.
Figure 3
push-buttons, LEDs, USB, Ethernet, ST Zio connectors and ST morpho headers).
Figure 4
board.
The mechanical dimensions of the board are showed in
12/48
shows the connections between the STM32H7 and its peripherals (STLINK-V3,
and Figure 5 show the location of these features on the STM32H7 Nucleo-144

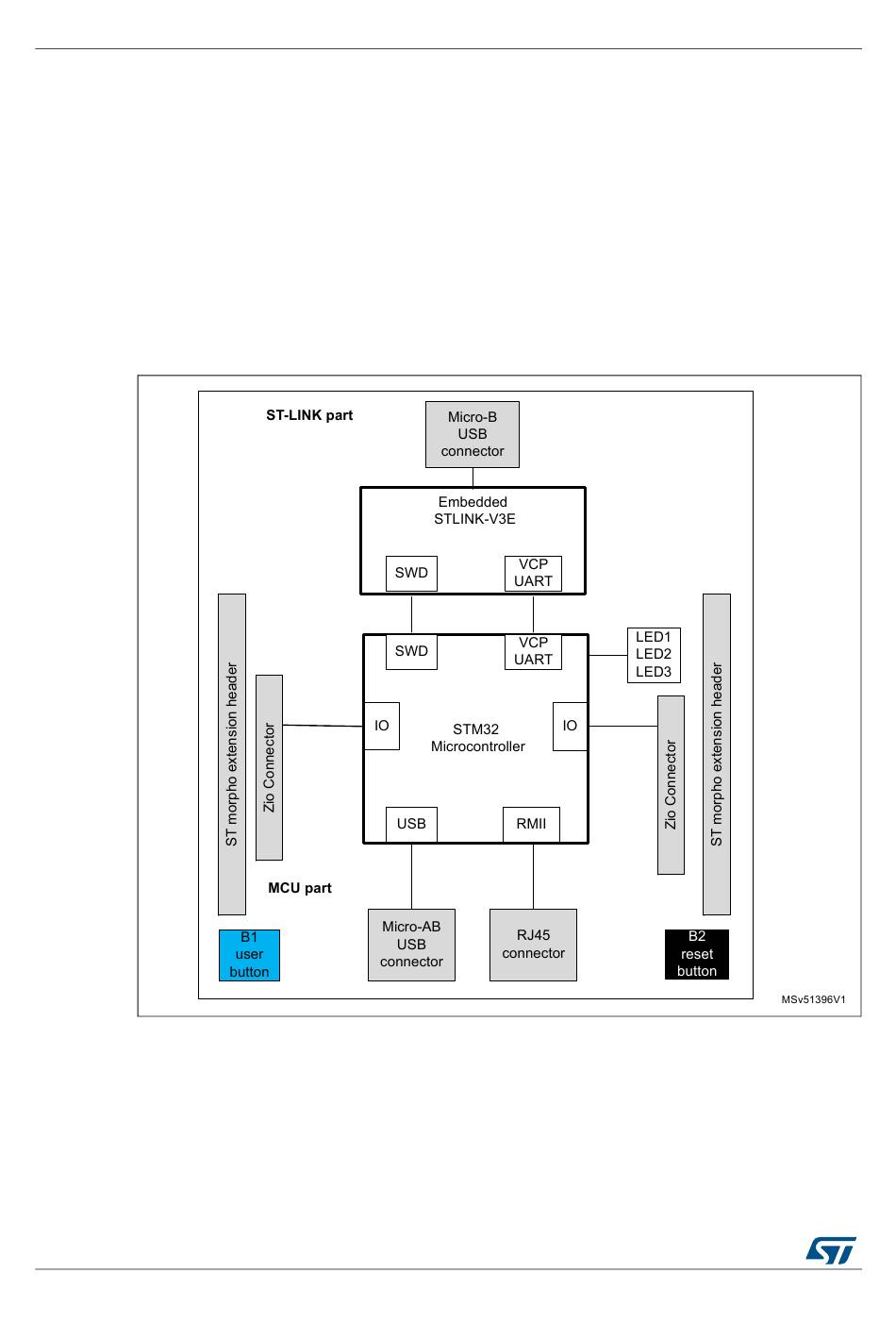

Figure 3. Hardware block diagram

UM2407 Rev 1
Figure 6 and Figure 7.
UM2407
