Hardware layout and configuration

The STM32G081B-EVAL Evaluation board is designed around the STM32G081RBT6 (64-
pin LQFP package). The hardware block diagram
between STM32G081RBT6 and peripherals (motor control connector, RS232, RS485,
Audio DAC, microphone ADC, TFT LCD, CAN, IrDA, IR LED, IR receiver, LDR, MicroSD
card, CEC on two HDMI connectors, Smartcard slot, Temperature sensor... etc.) and
Figure 4 help users to locate these features on the Evaluation board.

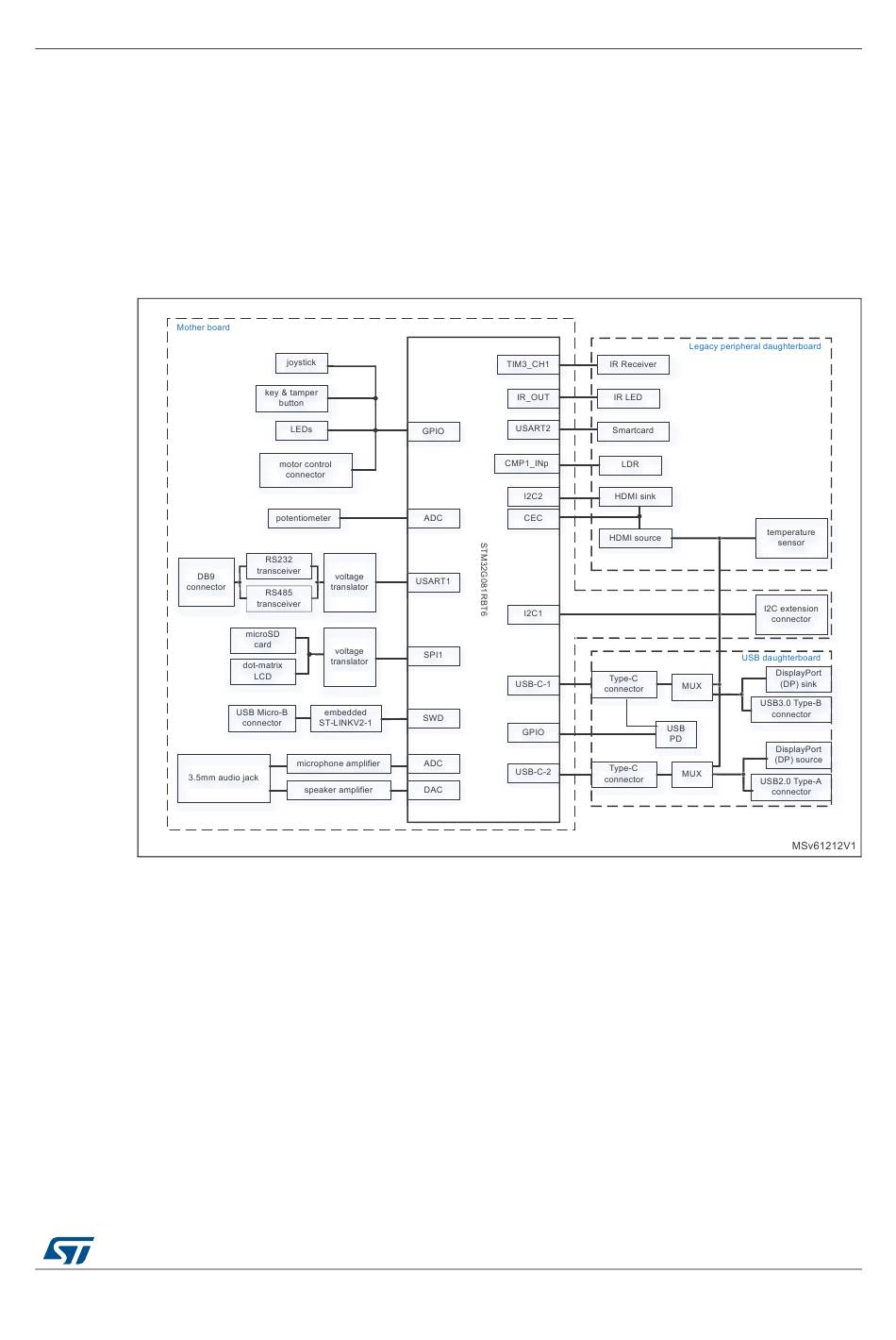

Figure 3. Hardware block diagram

Figure 3
