Hardware layout and configuration

The STM32L476G-EVAL evaluation board is designed around STM32L476ZGT6 target
microcontroller in LQFP 144-pin package.
connections with peripheral components.
on the evaluation board.

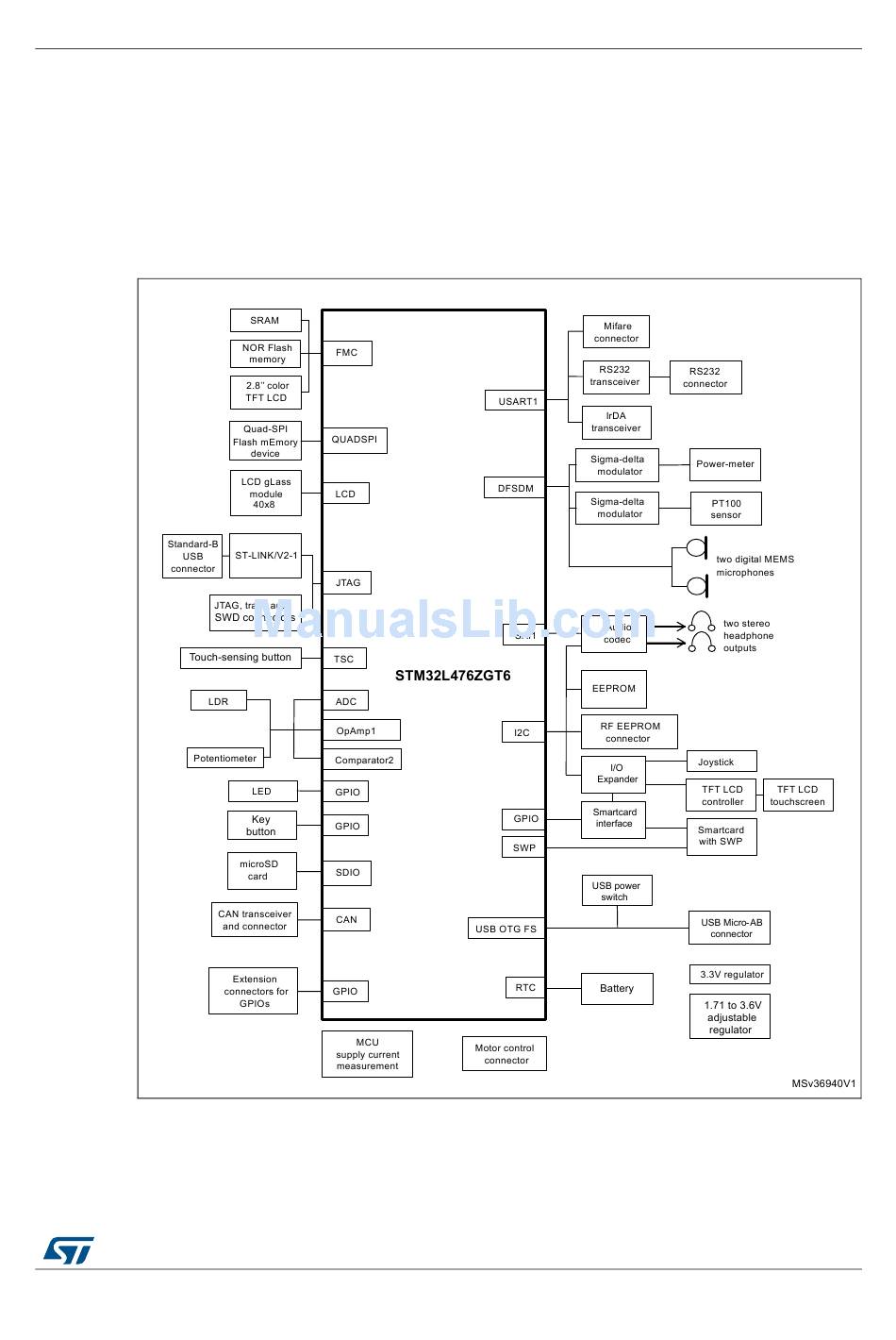

Figure 2. STM32L476G-EVAL hardware block diagram

DocID027351 Rev 3
Hardware layout and configuration
Figure 2 illustrates STM32L476ZGT6
Figure 3 shows the location of main components
