RS-232 connector CN12

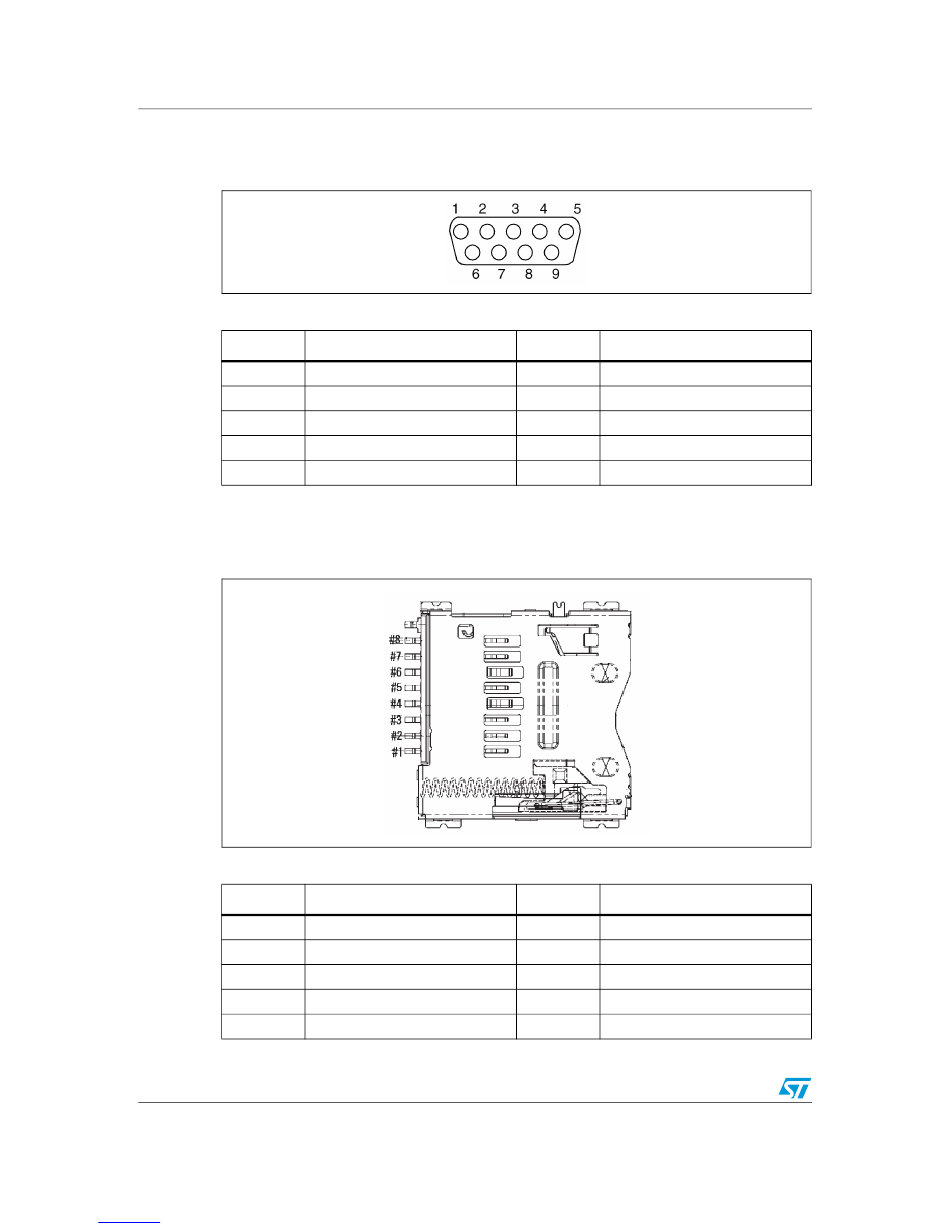

Figure 11. RS-232 connector CN12 (front view)
Table 25. RS-232 connector CN12
Pin number Description
1 NC
2 USART1_PA10
3 USART1_PA9
4 Connect to Pin 6
5 GND

MicroSD Card connector CN13

Figure 12. MicroSD Card connector CN13 (front view)
Table 26. MicroSD Card connector CN13
Pin number Description
1 MicroSDcard_D2 (PC10)
2 MicroSDcard_D3 (PC11)
3 MicroSDcard_CMD (PD2)
4 +3V3
Pin number
6
7
8
9
Pin number
5
6
7
8
9
Doc ID 14220 Rev 5
UM0488
Description
Connect to Pin 4
Connect to Pin 8
Connect to Pin 7
NC
Description
MicroSDcard_CLK (PC12)
Vss/GND
MicroSDcard_D0 (PC8)
MicroSDcard_D1 (PC9)
MicroSDcard_detect (PF11)
