USB type B connector CN14

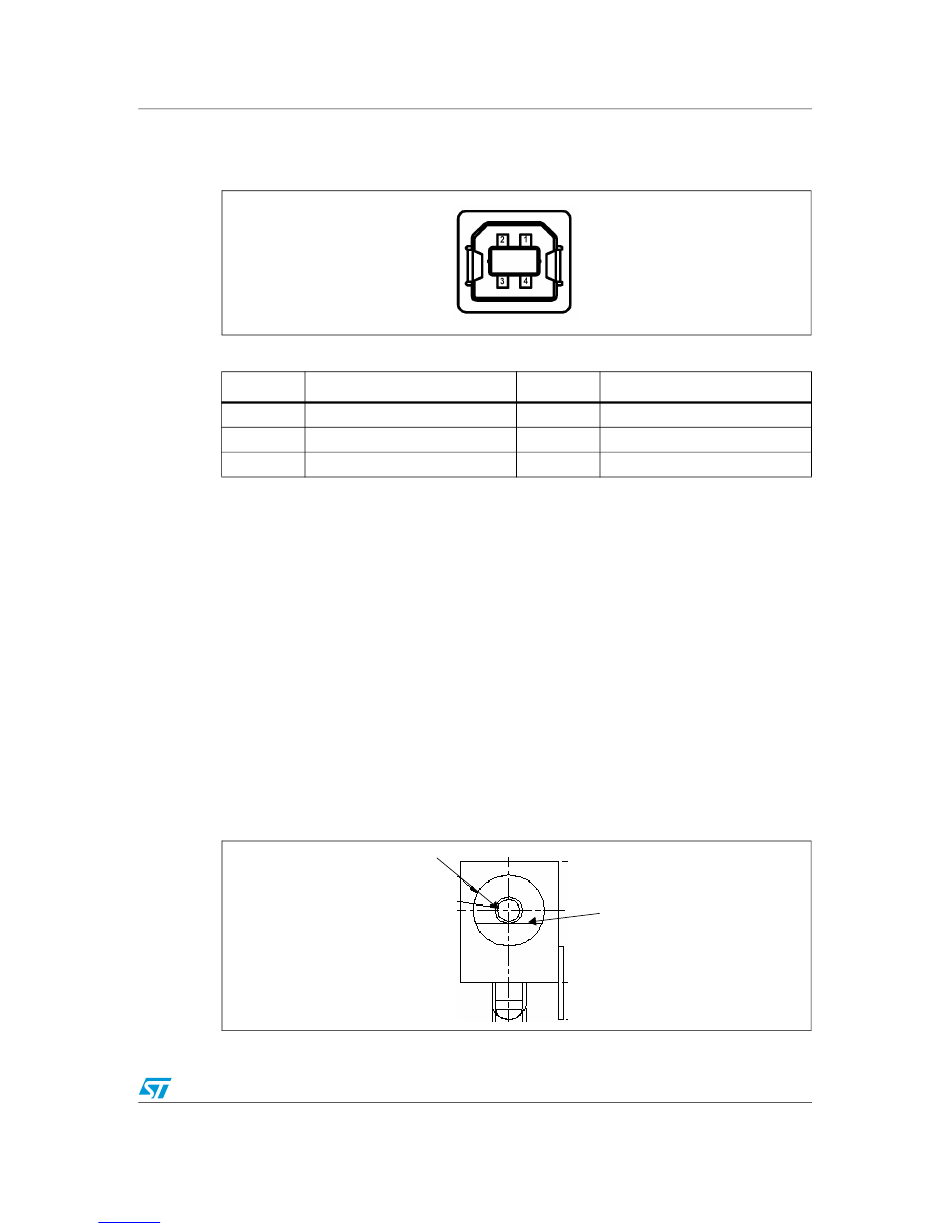

Figure 13. USB type B connector CN14 (top view)
Table 27.
USB type B connector CN14
Pin number
Description
1
VBUS (power)
2
PA11
3
PA12
Audio jack CN15
A 3.5 mm stereo audio jack CN15 connected to the audio DAC is available on the
STM3210E-EVAL board.
TFT LCD connector CN16
One 30-pin male header is available on the board to connect the LCD module board MB895
to the FSMC interface of the STM32F103ZGT6. Refer to
devices on page 13
for details.
Power connector CN17
Your STM3210E-EVAL board can be powered from a DC 5 V power supply via the external
power supply jack (CN17) shown in
Figure 14. Power supply connector CN17 (front view)
DC +5V
Pin number
4
5,6
Section 2.17: Display and input
Figure
14. The central pin of CN17 must be positive.
GND
Doc ID 14220 Rev 5
Connectors
Description
GND
Shield
27/48
