STMicroelectronics STM32F756G-EVAL Quick Start Manual

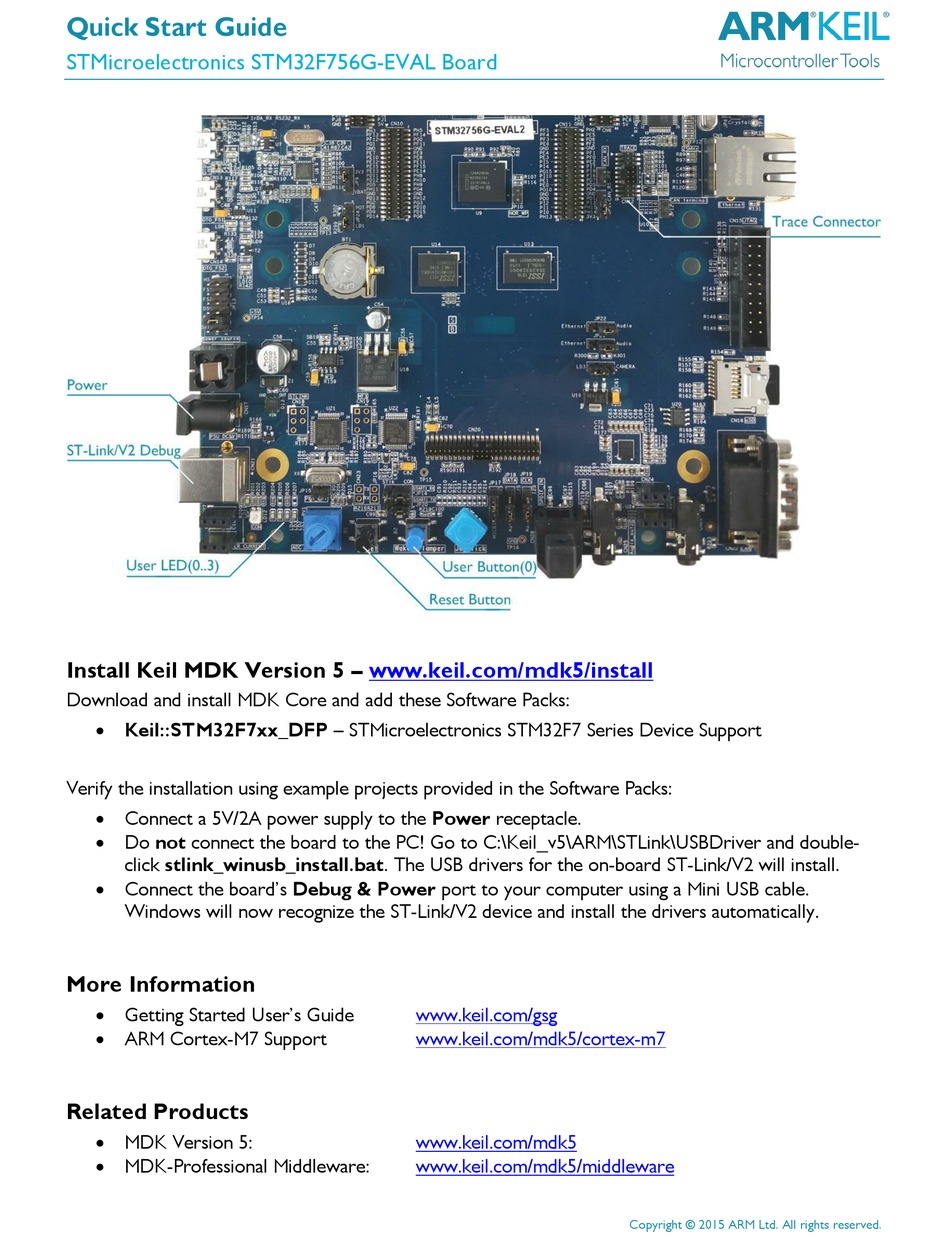

Quick Start Guide

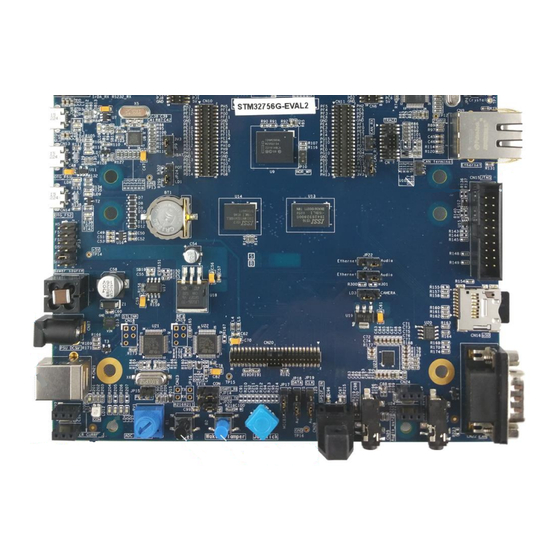

STMicroelectronics STM32F756G-EVAL Board

Install Keil MDK Version 5 –

Download and install MDK Core and add these Software Packs:

 Keil::STM32F7xx_DFP – STMicroelectronics STM32F7 Series Device Support

Verify the installation using example projects provided in the Software Packs:

 Connect a 5V/2A power supply to the Power receptacle.

 Do not connect the board to the PC! Go to C:\Keil_v5\ARM\STLink\USBDriver and double-

click stlink_winusb_install.bat. The USB drivers for the on-board ST-Link/V2 will install.

 Connect the board's Debug & Power port to your computer using a Mini USB cable.

Windows will now recognize the ST-Link/V2 device and install the drivers automatically.

 Getting Started User's Guide

 ARM Cortex-M7 Support

Need help?

Do you have a question about the STM32F756G-EVAL and is the answer not in the manual?

Page 1 Download and install MDK Core and add these Software Packs:  Keil::STM32F7xx_DFP – STMicroelectronics STM32F7 Series Device Support Verify the installation using example projects provided in the Software Packs:  Connect a 5V/2A power supply to the Power receptacle.
Page 2 Debug and Trace Configuration STMicroelectronics STM32F756G-EVAL Board ST-Link Debugger  Connect using Serial Wire Debug (SWD) by selecting the Port SW.  Configure ITM Trace by selecting the Trace tab and enter the correct CPU Core Clock speed as specified in your project.
