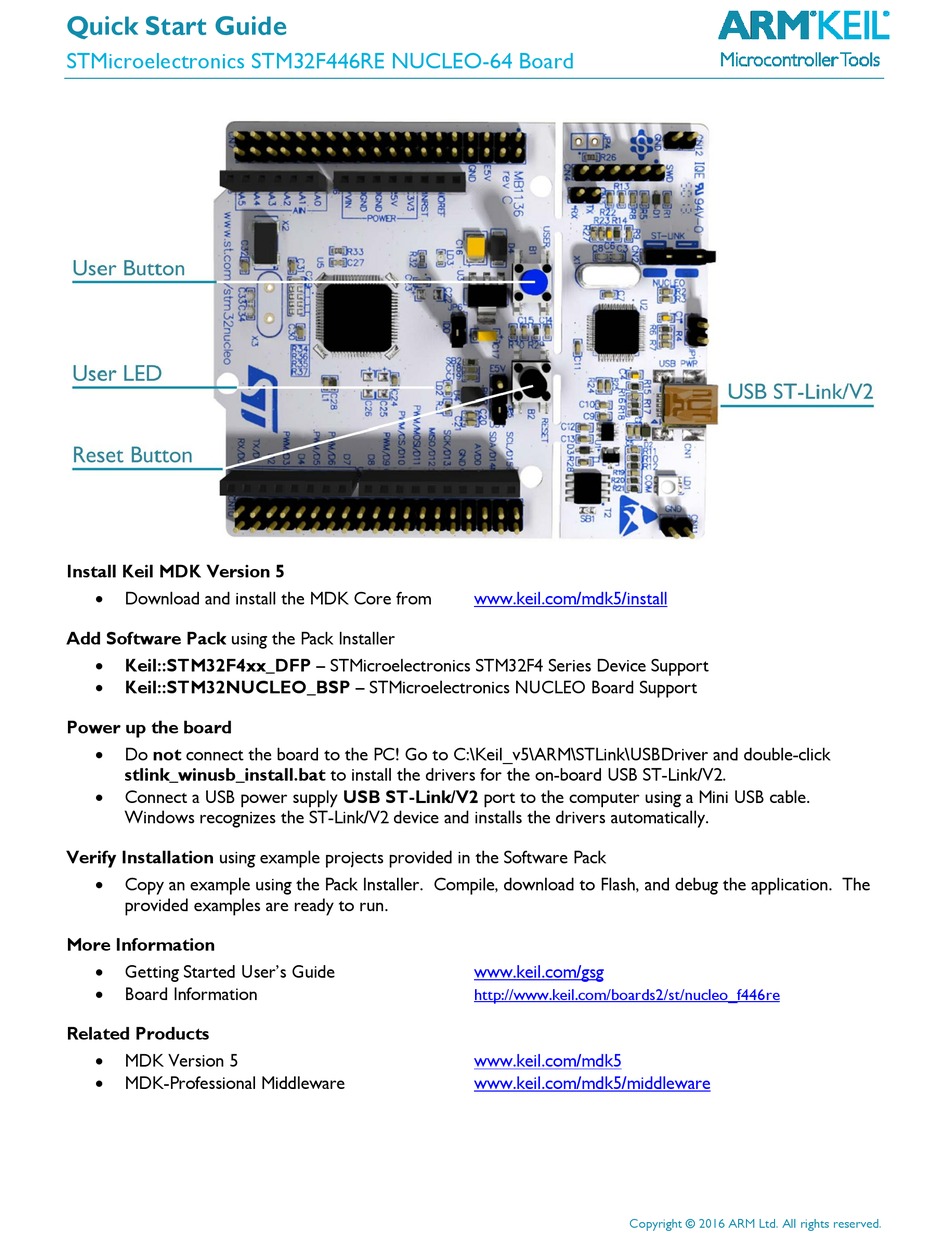

Quick Start Guide

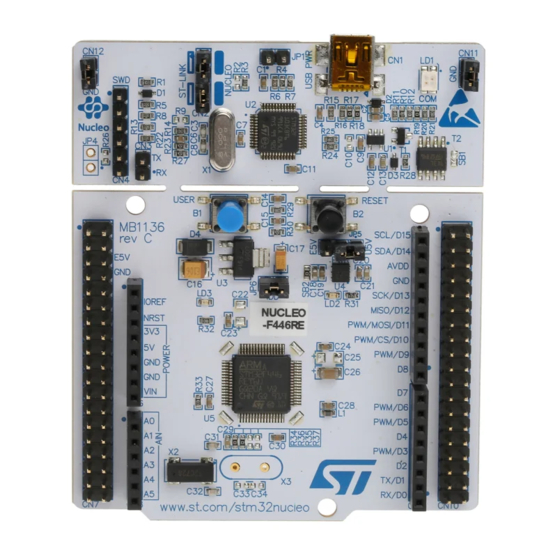

STMicroelectronics STM32F446RE NUCLEO-64 Board

Install Keil MDK Version 5


Download and install the MDK Core from

Add Software Pack using the Pack Installer


Keil::STM32F4xx_DFP – STMicroelectronics STM32F4 Series Device Support

Keil::STM32NUCLEO_BSP – STMicroelectronics NUCLEO Board Support

Power up the board


Do not connect the board to the PC! Go to C:\Keil_v5\ARM\STLink\USBDriver and double-click
stlink_winusb_install.bat to install the drivers for the on-board USB ST-Link/V2.

Connect a USB power supply USB ST-Link/V2 port to the computer using a Mini USB cable.
Windows recognizes the ST-Link/V2 device and installs the drivers automatically.
Verify Installation using example projects provided in the Software Pack

Copy an example using the Pack Installer. Compile, download to Flash, and debug the application. The
provided examples are ready to run.

More Information


Getting Started User's Guide

Board Information

Related Products


MDK Version 5

MDK-Professional Middleware
www.keil.com/mdk5/install
www.keil.com/gsg
http://www.keil.com/boards2/st/nucleo_f446re
www.keil.com/mdk5
www.keil.com/mdk5/middleware
