UM0488
3.2
3.3
3.4
Downloaded from Elcodis.com electronic components distributor

Analog input connectors CN2, CN3 and CN5

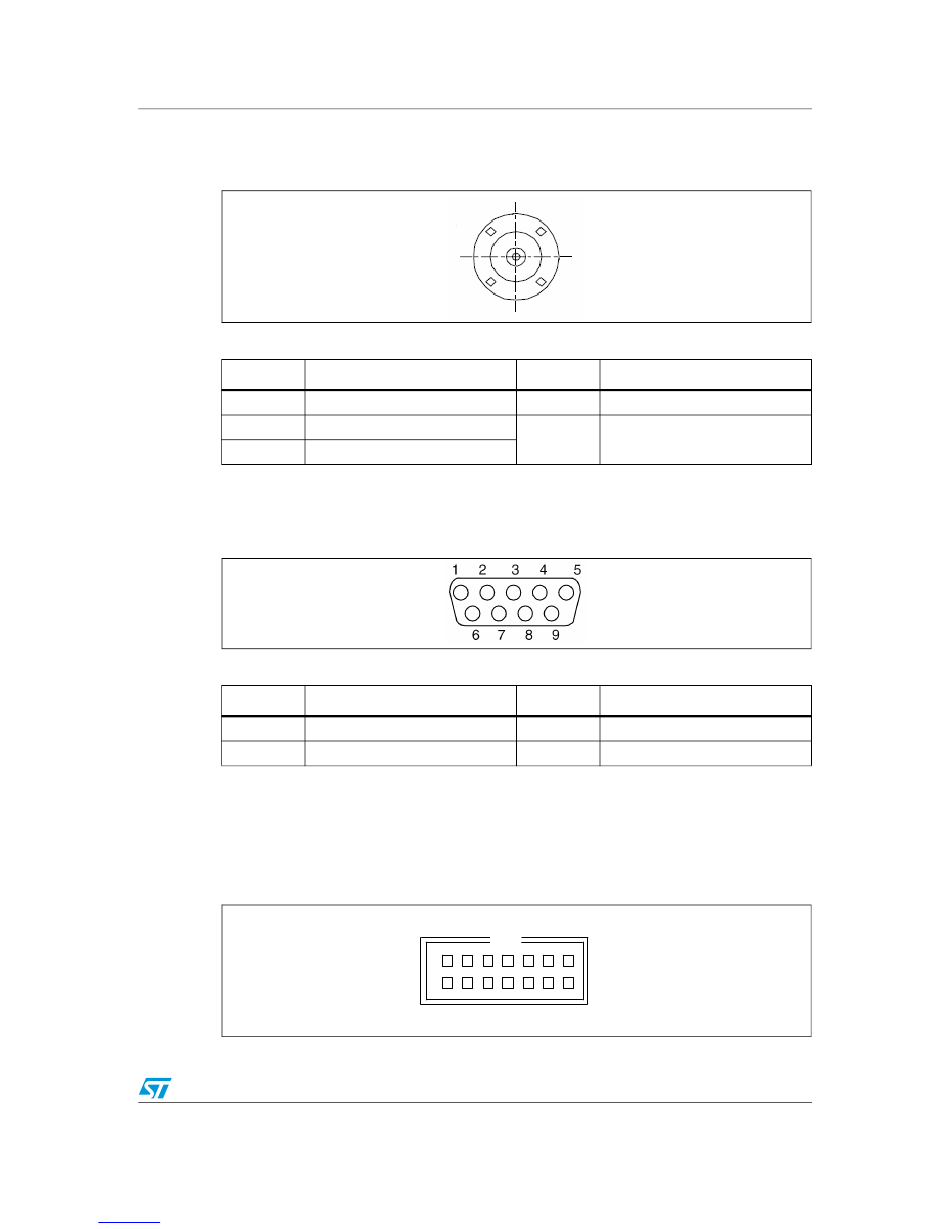

Figure 5. Analog input connector CN2, CN3 and CN5 bottom view
Table 17. Analog input connector CN2, CN3 and CN5
Pin number Description
1 GND
2 GND
3 GND

CAN D-type 9-pin male connector CN4

Figure 6. CAN D-type 9-pin male connector CN4 (front view)
Table 18. CAN D-type 9-pins male connector CN4
Pin number Description
1,4,8,9 NC
2 CANL

QST connector CN6

The QST connector connects the STM3210E-EVAL to the QST evaluation board to
demonstrate the QST function.
Figure 7. QST connector CN6 (front view)
1 2
5
4 3
Pin number
4
5
Pin number
7
3,5,6
13 11 9 7 5 3 1
14 12 10 8 6 4 2
Doc ID 14220 Rev 5
Connectors
Description
GND
Analog input PC3, PC2 and PC1
for CN2,CN3 and CN5 respectively
Description
CANH
GND
17/48
